Chapter 1 Introducing the GoQAM

Front Panel Overview

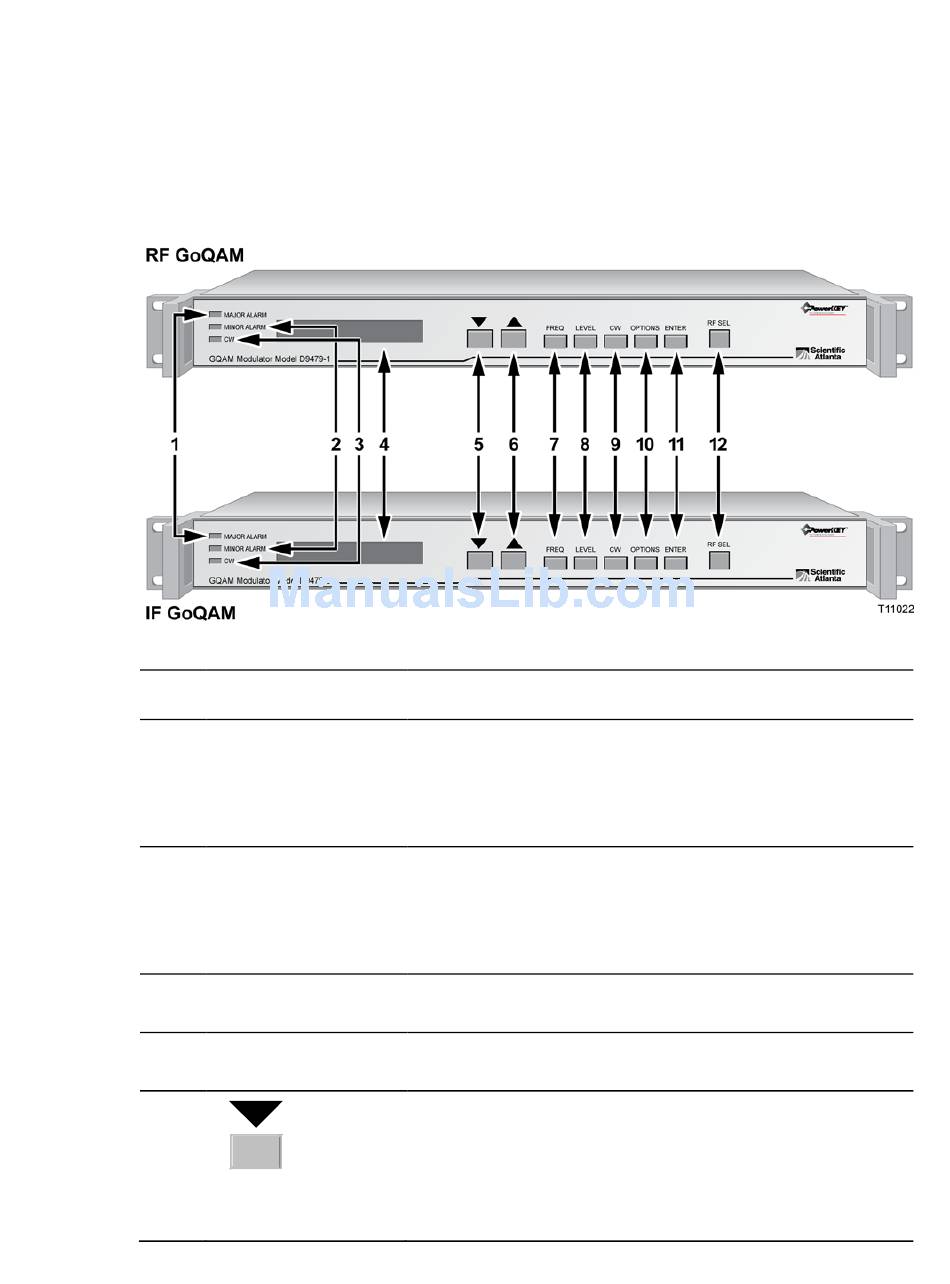

Front Panel Diagram
This illustration shows the front panel components of each type of GoQAM.
The following table describes the front panel components.
Item Component
1 MAJOR ALARM
indicator
2 MINOR ALARM
indicator
3 CW indicator
4 LCD alphanumeric
display screen
5
10
Description
This LED is red and lights for a major alarm condition.
Major alarms occur for hardware or software conditions that
indicate a serious disruption of service or the
malfunctioning or failure of important circuits. The LED
goes off when all major alarms have cleared.
This LED is yellow and lights for a minor alarm condition.
Minor alarms indicate a less critical error condition. The
GoQAM may continue to operate with some loss of
functionality. The LED goes off when all minor alarms have
cleared.
This LED is yellow and lights when any one of the RF
carriers is set to continuous wave (CW) mode.
This screen displays status and operating screens controlled
by the front panel keys.
The Down Arrow key decrements a displayed value or
navigates through a set of displayed values. This key is only
active when the display has a flashing value, which
indicates that the value can be changed. This key is
primarily used for decreasing a displayed value such as
frequency or level.
