AT800 Series User Manual

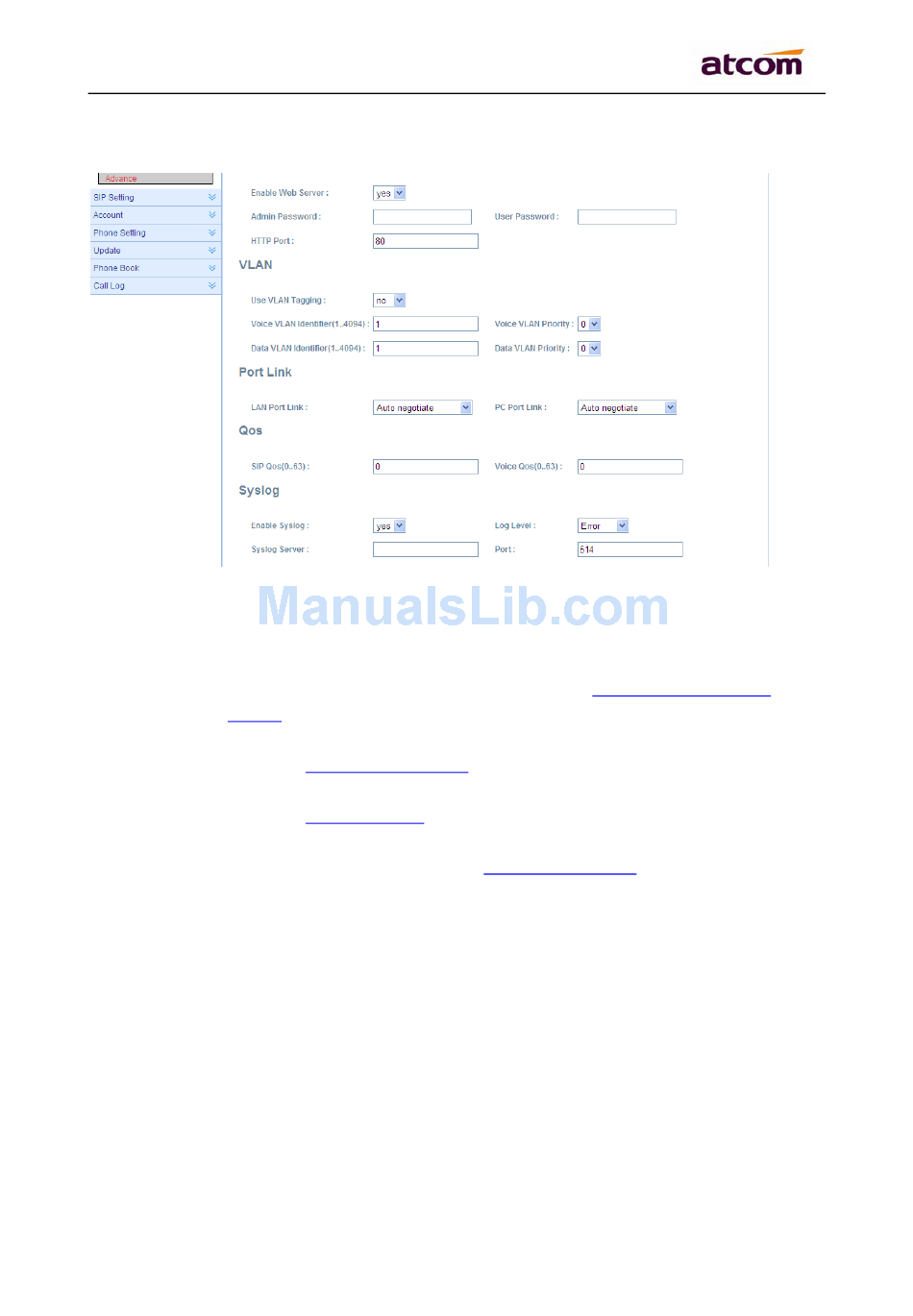

Advance
1. Web Server
a) Enable Web Server: yes/no, enable/disable web server; system will reboot after
submit, if disable web server, the web interface will not be available anymore.
If web server is disabled on AT800/AT800P, it needs restore to factory settings by long
press * and # key when powering on. Please refer to How to restore to factory
settings.
b) Admin password: set admin password here
Tips: input http://ip‐address/index in the browser to enter admin web interface.
c) User password: set user password here
Tips: input http://ip‐address in the browser to enter user web interface.
d) HTTP Port—the web server port, default is 80. If user has changed the http port, e.g.
8080; to log in web interface by URI: http://ip‐address:port in the browser.
2. VLAN
a) Use VLAN tagging: yes/no, enable/disable VLAN tagging, default to no.
b) Voice VLAN Identifier—set voice VLAN identifier, range from 1 to 4096
c) Voice VLAN Priority—set voice VLAN priority, range from 0 to 7
d) Data VLAN Identifier—set data VLAN identifier, range from 1 to 4096
e) Data VLAN priority—set data VLAN priority, range from 0 to 7
TIPS: The RTP/RTCP packet is voice packet, the others is data packet.
Notes: VLAN can only works in bridge mode. If you enable VLAN in router mode, it
will not work with VLAN.
3. Port Link
a) LAN port link—LAN port duplex mode
b) PC port link—PC port duplex mode
4. Qos
