Advance - ATCOM Rainbow 1 User Manual

Rainbow 1 IP Phone User Manual

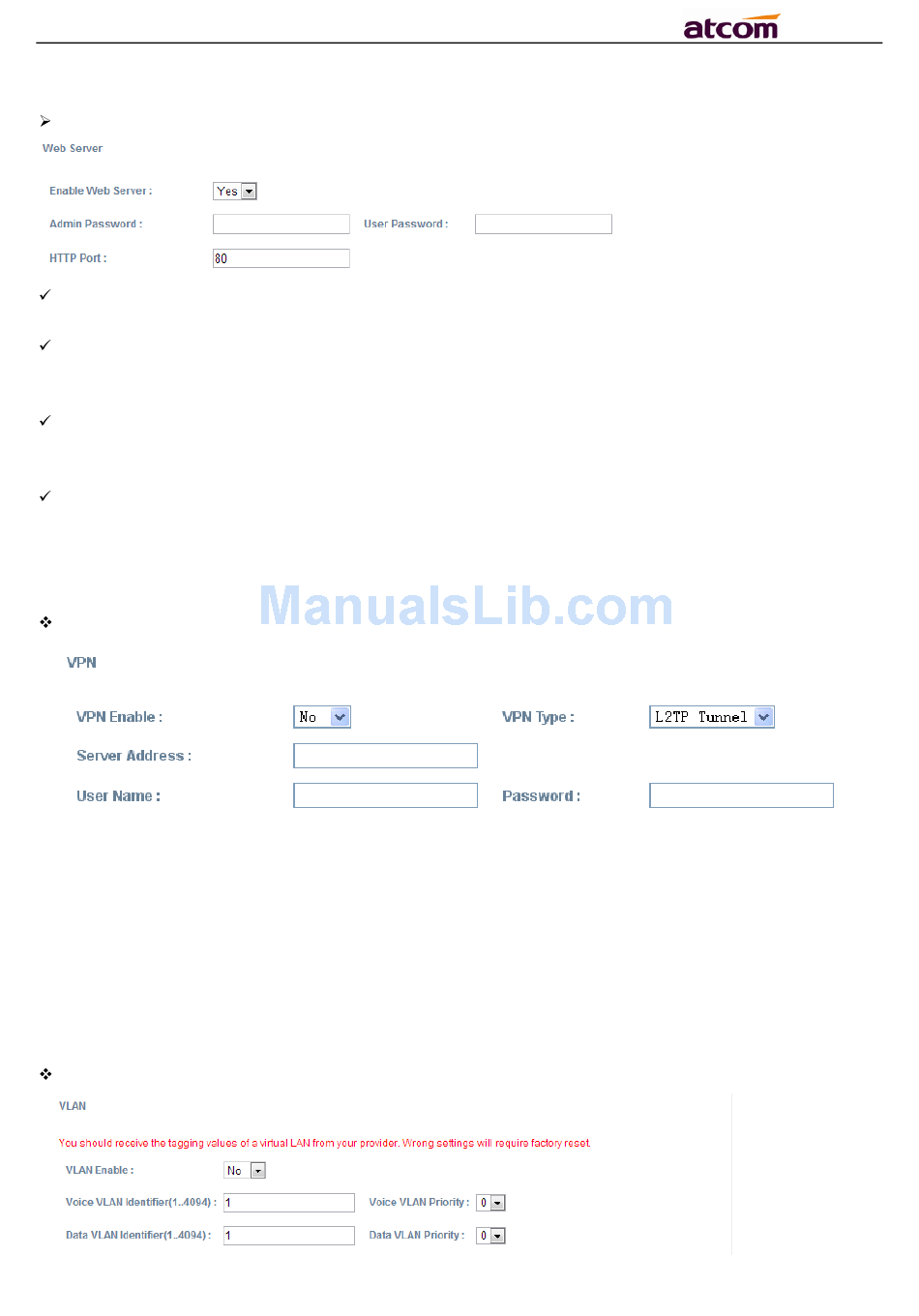

4.2.2 Advance

Web Server
Enable Web Server: Enable or disable web access. If choose "no", you're not able to access
Rainbow 1's webpage.
Admin password: Set password for admin webpage access. Input 'http://ip-address/index.asp'
in the web browser to access admin's login webpage after setting the admin password, then input
username(admin) and password to access the admin's webpage.
User password: Set password for user webpage access. Input 'http://ip-address/user.asp' in the
web browser to access user's login webpage after setting the user password, then input
username(user) and password to access the user's webpage.
HTTP port: set port for HTTP access (defaults to 80)
For example, the Rainbow 1's IP is 192.168.1.223
HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web browser to enter
Rainbow 1's webpage.
VPN
1. VPN Enable: Select "Yes" or "No" to enable or disable VPN
2. VPN Type: Only support L2TP VPN
3. Server address: VPN server address
4. Username: VPN account's username
5. Password: VPN account's password
After apply, the phone will be reboot. The VPN IP address will be shown on the System Status
webpage.
VLAN
