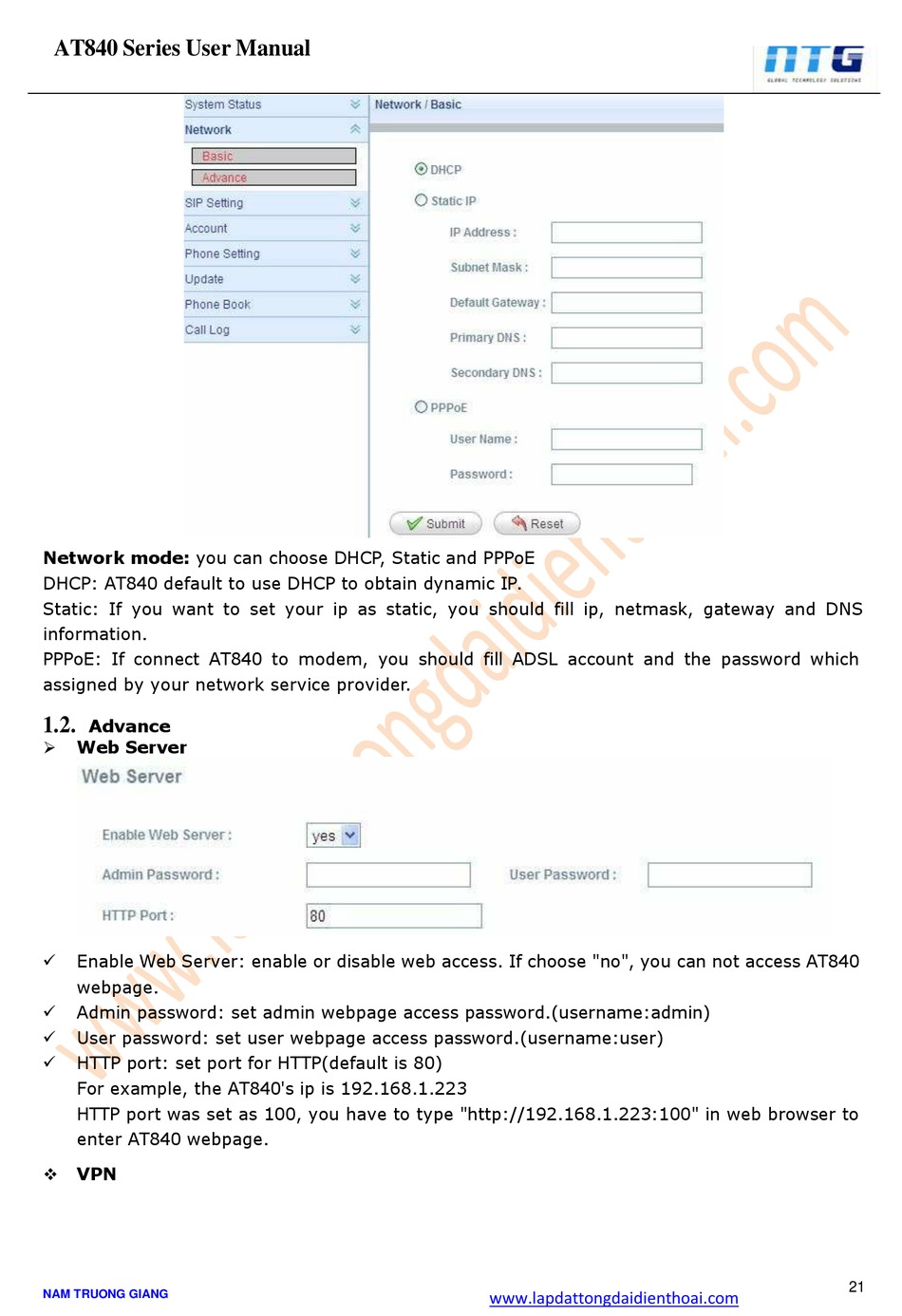

Advance - ATCOM AT840 User Manual

AT840 Series User Manual
Network mode: you can choose DHCP, Static and PPPoE
DHCP: AT840 default to use DHCP to obtain dynamic IP.
Static: If you want to set your ip as static, you should fill ip, netmask, gateway and DNS
information.
PPPoE: If connect AT840 to modem, you should fill ADSL account and the password which
assigned by your network service provider.

Advance

1.2.
Web Server

Enable Web Server: enable or disable web access. If choose "no", you can not access AT840

webpage.
Admin password: set admin webpage access password.(username:admin)

User password: set user webpage access password.(username:user)

HTTP port: set port for HTTP(default is 80)

For example, the AT840's ip is 192.168.1.223
HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web browser to
enter AT840 webpage.
VPN

