Rainbow1 IP Phone User Manual
Connect the LAN port of Rainbow1 with the Ethernet port of modem then fill user
name and password of PPPoE which assigned by ISP (Internet Service Provider).
a) User name：set PPPoE user name
b) Password：set PPPoE password
Press 'Submit' button after finishing setting and all the settings info will be saved and
taken effect after Rainbow1 reboots.

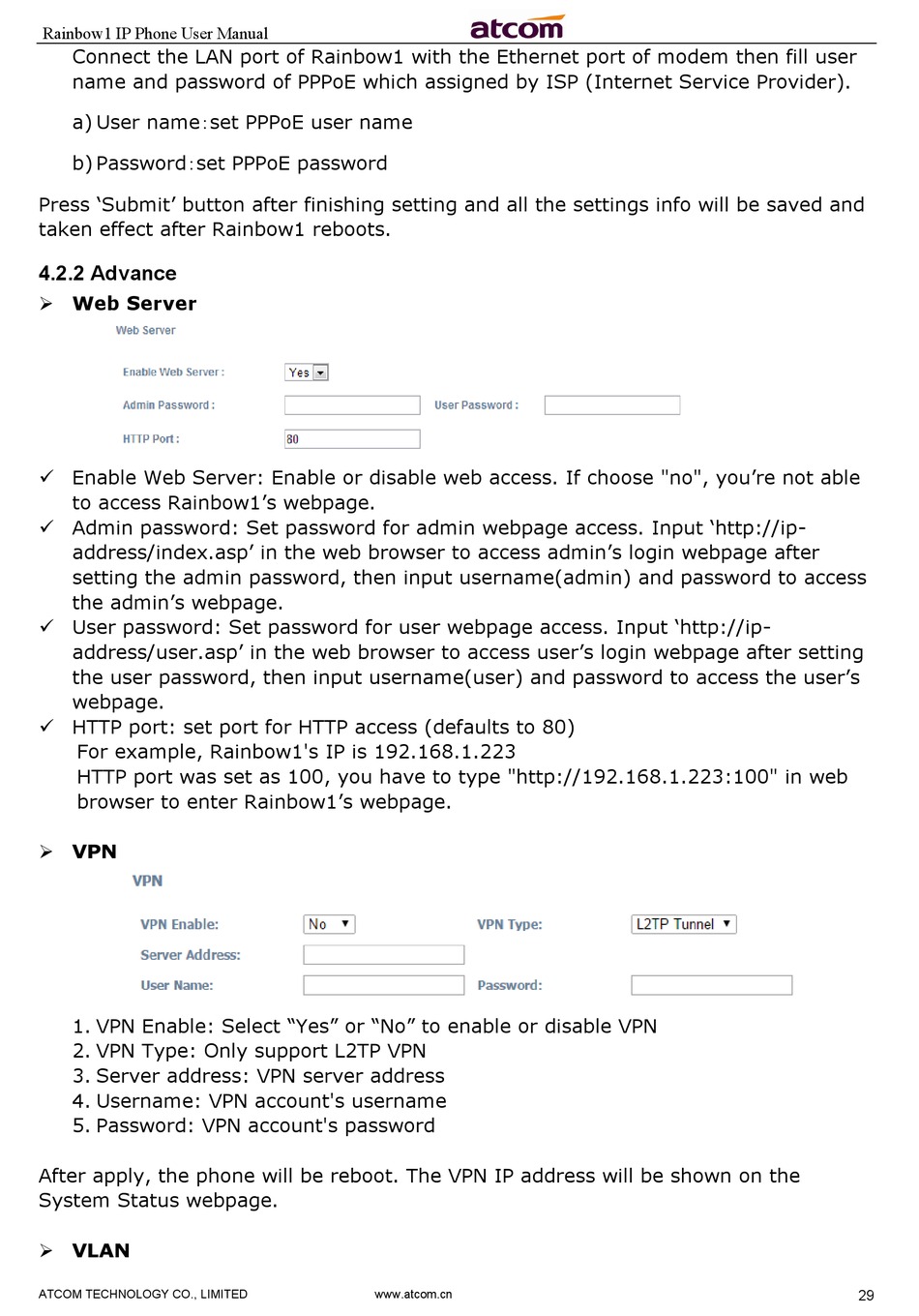

4.2.2 Advance

 Web Server
 Enable Web Server: Enable or disable web access. If choose "no", you're not able
to access Rainbow1's webpage.
 Admin password: Set password for admin webpage access. Input 'http://ip-
address/index.asp' in the web browser to access admin's login webpage after
setting the admin password, then input username(admin) and password to access
the admin's webpage.
 User password: Set password for user webpage access. Input 'http://ip-
address/user.asp' in the web browser to access user's login webpage after setting
the user password, then input username(user) and password to access the user's
webpage.
 HTTP port: set port for HTTP access (defaults to 80)
For example, Rainbow1's IP is 192.168.1.223
HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web
browser to enter Rainbow1's webpage.
 VPN
1. VPN Enable: Select "Yes" or "No" to enable or disable VPN
2. VPN Type: Only support L2TP VPN
3. Server address: VPN server address
4. Username: VPN account's username
5. Password: VPN account's password
After apply, the phone will be reboot. The VPN IP address will be shown on the
System Status webpage.
 VLAN
