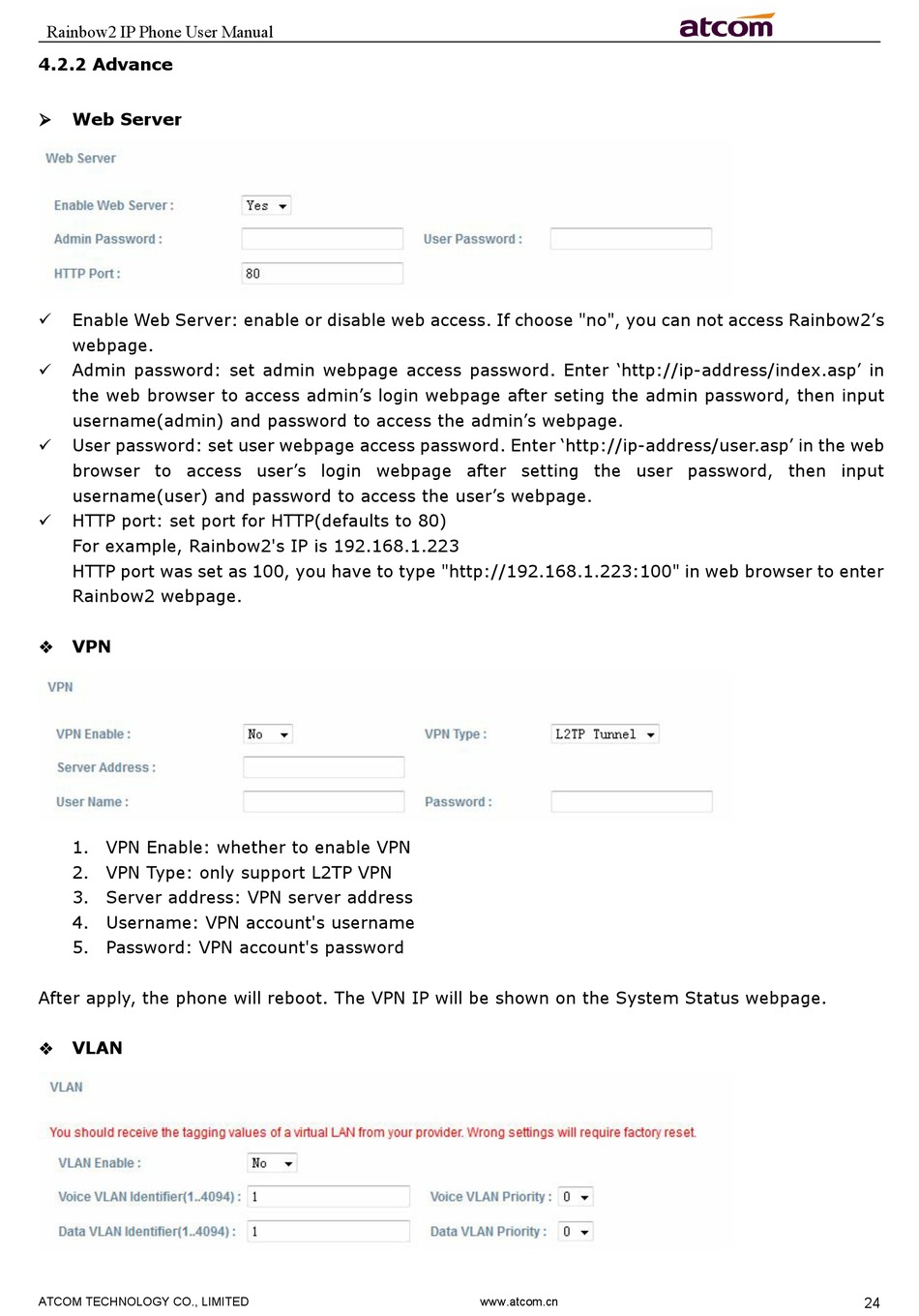

Advance - ATCOM Rainbow2 User Manual

Rainbow2 IP Phone User Manual

4.2.2 Advance

Web Server

Enable Web Server: enable or disable web access. If choose "no", you can not access Rainbow2's

webpage.
Admin password: set admin webpage access password. Enter 'http://ip-address/index.asp' in

the web browser to access admin's login webpage after seting the admin password, then input
username(admin) and password to access the admin's webpage.
User password: set user webpage access password. Enter 'http://ip-address/user.asp' in the web

browser to access user's login webpage after setting the user password, then input
username(user) and password to access the user's webpage.
HTTP port: set port for HTTP(defaults to 80)

For example, Rainbow2's IP is 192.168.1.223
HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web browser to enter
Rainbow2 webpage.
VPN

1. VPN Enable: whether to enable VPN
2. VPN Type: only support L2TP VPN
3. Server address: VPN server address
4. Username: VPN account's username
5. Password: VPN account's password
After apply, the phone will reboot. The VPN IP will be shown on the System Status webpage.
VLAN

ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
24
