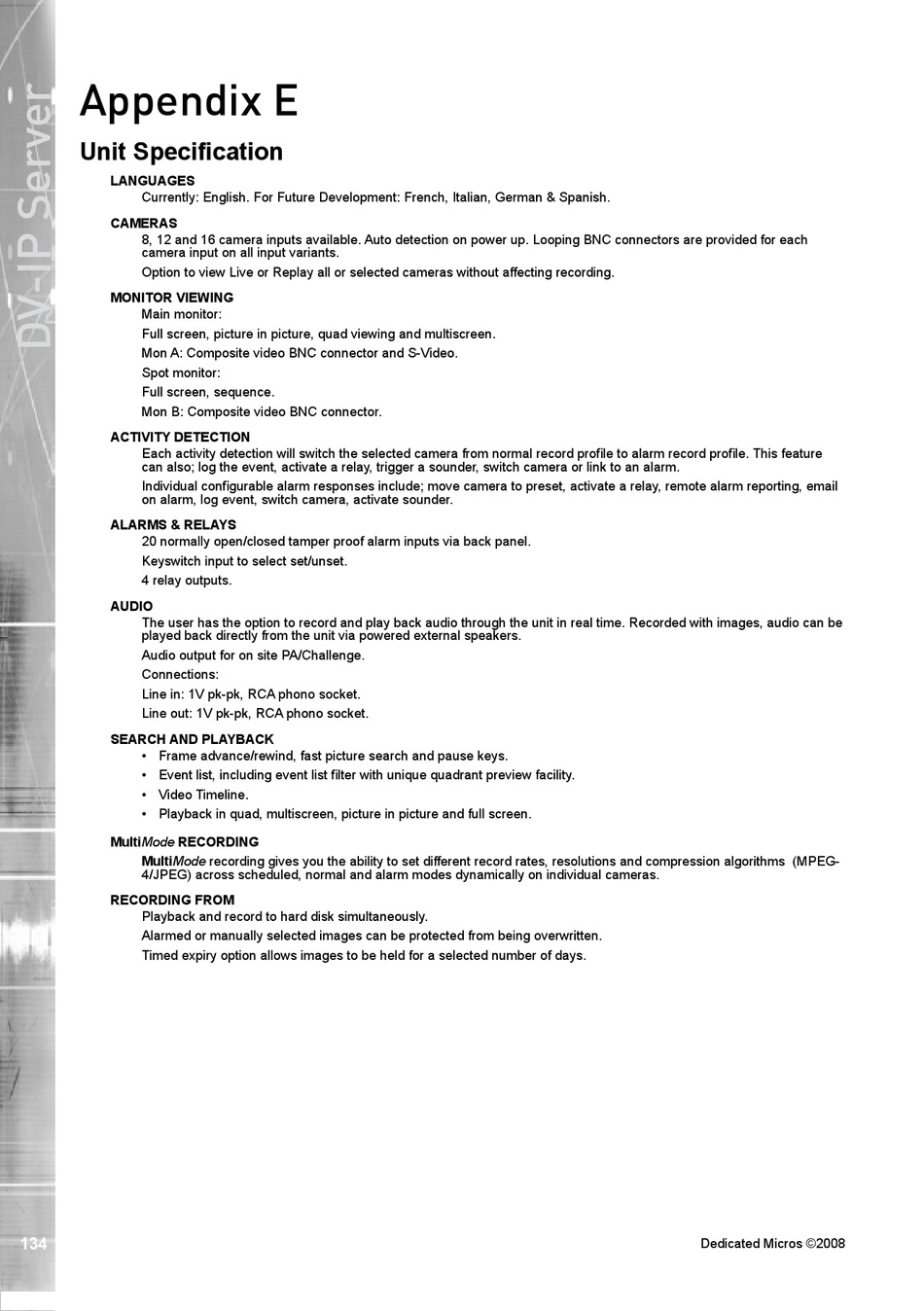

Appendix E

Unit Specification

LANGUAGES
Currently: English. For Future Development: French, Italian, German & Spanish.
CAMERAS
8, 12 and 16 camera inputs available. �uto detection on power up. �ooping �NC connectors are provided for each
camera input on all input variants.
Option to view �ive or ��eplay all or selected cameras without affecting recording.
MONITOR VIEWING
Main monitor:
Full screen, picture in picture, quad viewing and multiscreen.
Mon �: Composite video �NC connector and S-�ideo.
Spot monitor:
Full screen, sequence.
Mon �: Composite video �NC connector.
ACTIVITY DETECTION
Each activity detection will switch the selected camera from normal record profile to alarm record profile. This feature
can also; log the event, activate a relay, trigger a sounder, switch camera or link to an alarm.
Individual configurable alarm responses include; move camera to preset, activate a relay, remote alarm reporting, email
on alarm, log event, switch camera, activate sounder.
ALARMS & RELAYS
20 normally open�closed tamper proof alarm inputs via back panel.
�eyswitch input to select set�unset.
4 relay outputs.
AUDIO
The user has the option to record and play back audio through the unit in real time. ��ecorded with images, audio can be
played back directly from the unit via powered e�ternal speakers.
�udio output for on site P��Challenge.
Connections:
�ine in: 1� pk-pk, ��C� phono socket.
�ine out: 1� pk-pk, ��C� phono socket.
SEARCH AND PLAYBACK
• Frame advance�rewind, fast picture search and pause keys.
• Event list, including event list filter with unique quadrant preview facility.
• �ideo Timeline.
• Playback in quad, multiscreen, picture in picture and full screen.
MultiMode RECORDING
MultiMode recording gives you the ability to set different record rates, resolutions and compression algorithms (MPEG-
4�JPEG) across scheduled, normal and alarm modes dynamically on individual cameras.
RECORDING FROM
Playback and record to hard disk simultaneously.
�larmed or manually selected images can be protected from being overwritten.
Timed e�piry option allows images to be held for a selected number of days.
