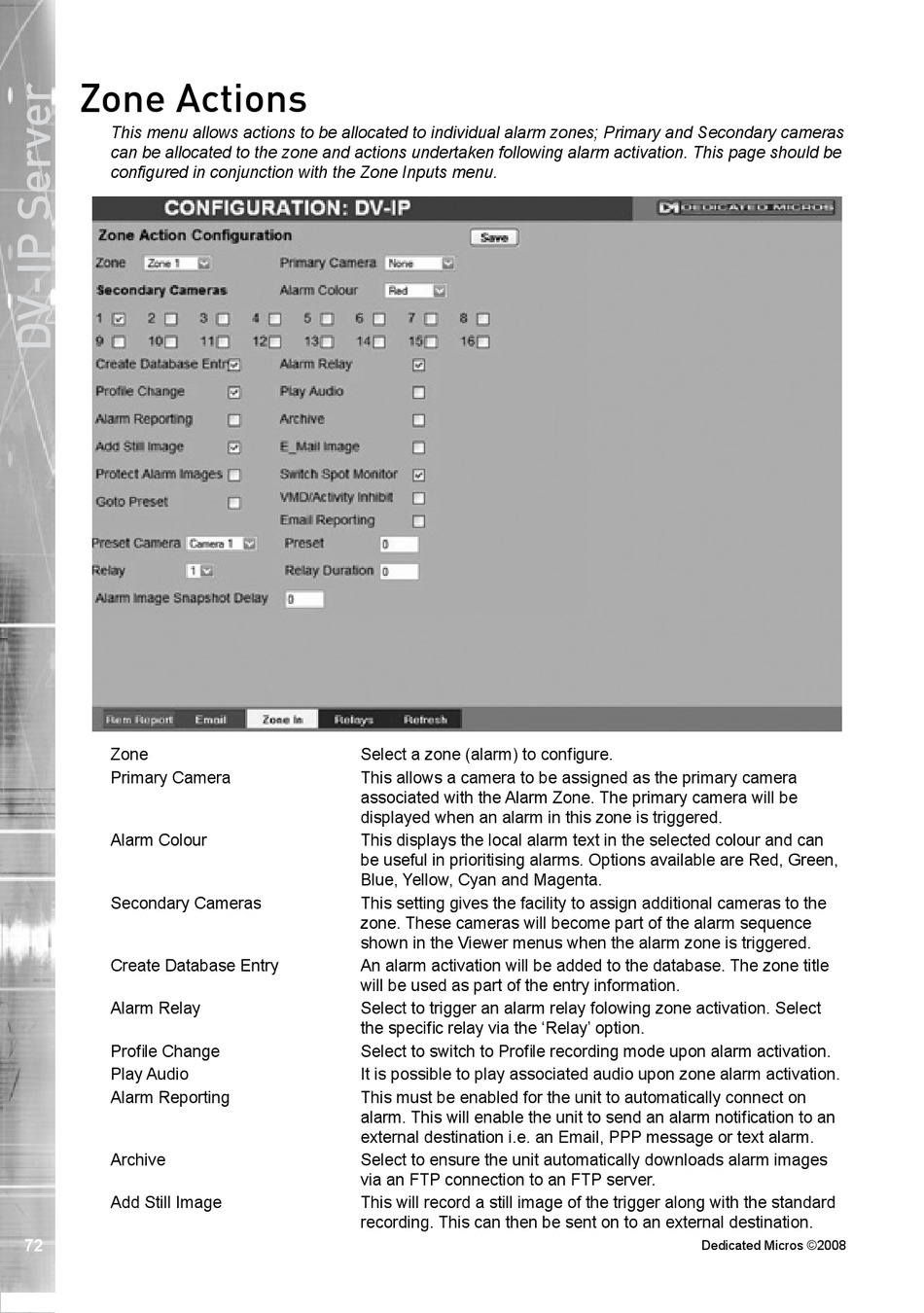

Zone Actions

This menu allows actions to be allocated to individual alarm zones; Primary and Secondary cameras
can be allocated to the zone and actions undertaken following alarm activation. This page should be
configured in conjunction with the Zone Inputs menu.
Zone
Primary Camera
Alarm Colour
Secondary Cameras
Create Database Entry
�larm ��elay
Profile Change
Play �udio
�larm ��eporting
�rchive
�dd Still Image

Select a zone (alarm) to configure.
This allows a camera to be assigned as the primary camera
associated with the �larm Zone. The primary camera will be
displayed when an alarm in this zone is triggered.
This displays the local alarm text in the selected colour and can
be useful in prioritising alarms. Options available are ��ed, Green,
�lue, ��ellow, Cyan and Magenta.
This setting gives the facility to assign additional cameras to the
zone. These cameras will become part of the alarm sequence
shown in the �iewer menus when the alarm zone is triggered.
�n alarm activation will be added to the database. The zone title
will be used as part of the entry information.
Select to trigger an alarm relay folowing zone activation. Select
the specific relay via the '��elay' option.
Select to switch to Profile recording mode upon alarm activation.
It is possible to play associated audio upon zone alarm activation.
This must be enabled for the unit to automatically connect on
alarm. This will enable the unit to send an alarm notification to an
e�ternal destination i.e. an Email, PPP message or te�t alarm.
Select to ensure the unit automatically downloads alarm images
via an FTP connection to an FTP server.
This will record a still image of the trigger along with the standard
recording. This can then be sent on to an e�ternal destination.
