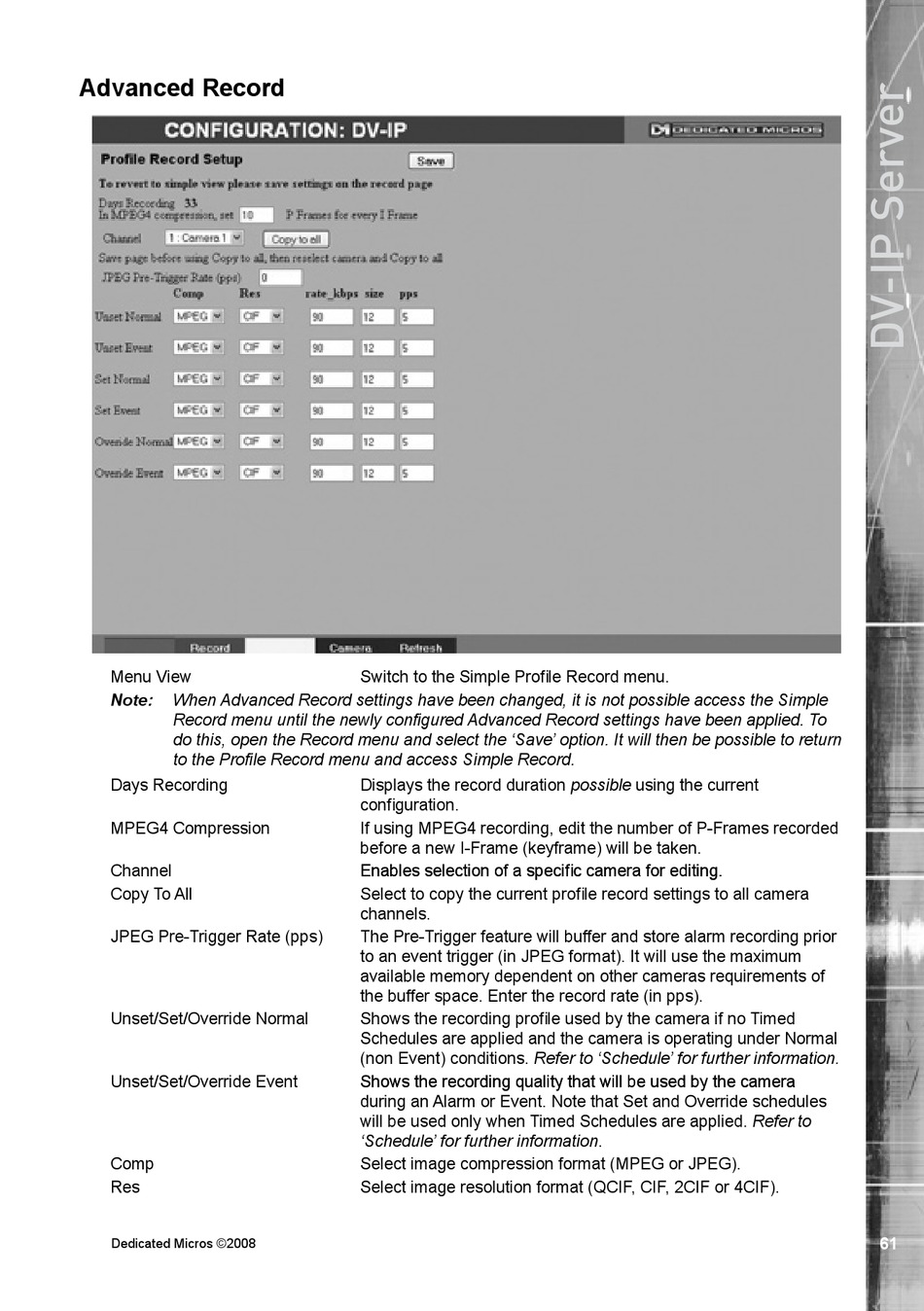

Advanced Record

Menu �iew
Note: When Advanced Record settings have been changed, it is not possible access the Simple
Record menu until the newly configured Advanced Record settings have been applied. To
do this, open the Record menu and select the 'Save' option. It will then be possible to return
to the Profile Record menu and access Simple Record.
Days Recording
MPEG4 Compression
Channel
Copy To �ll
JPEG Pre-Trigger ��ate (pps)
Unset�Set�Override Normal
Unset�Set�Override Event
Comp
��es
Dedicated Micros ©2008
Switch to the Simple Profile ��ecord menu.
Displays the record duration possible using the current
configuration.
If using MPEG4 recording, edit the number of P-Frames recorded
before a new I-Frame (keyframe) will be taken.
Enables selection of a specific camera for editing. Enables selection of a specific camera for editing.
Select to copy the current profile record settings to all camera
channels.
The Pre-Trigger feature will buffer and store alarm recording prior
to an event trigger (in JPEG format). It will use the ma�imum
available memory dependent on other cameras requirements of
the buffer space. Enter the record rate (in pps).
Shows the recording profile used by the camera if no Timed
Schedules are applied and the camera is operating under Normal
(non Event) conditions. Refer to 'Schedule' for further information.
Shows the recording quality that will be used by the camera Shows the recording quality that will be used by the camera
during an �larm or Event. Note that Set and Override schedules
will be used only when Timed Schedules are applied. Refer to
'Schedule' for further information.
Select image compression format (MPEG or JPEG).
Select image resolution format (�CIF, CIF, 2CIF or 4CIF).
