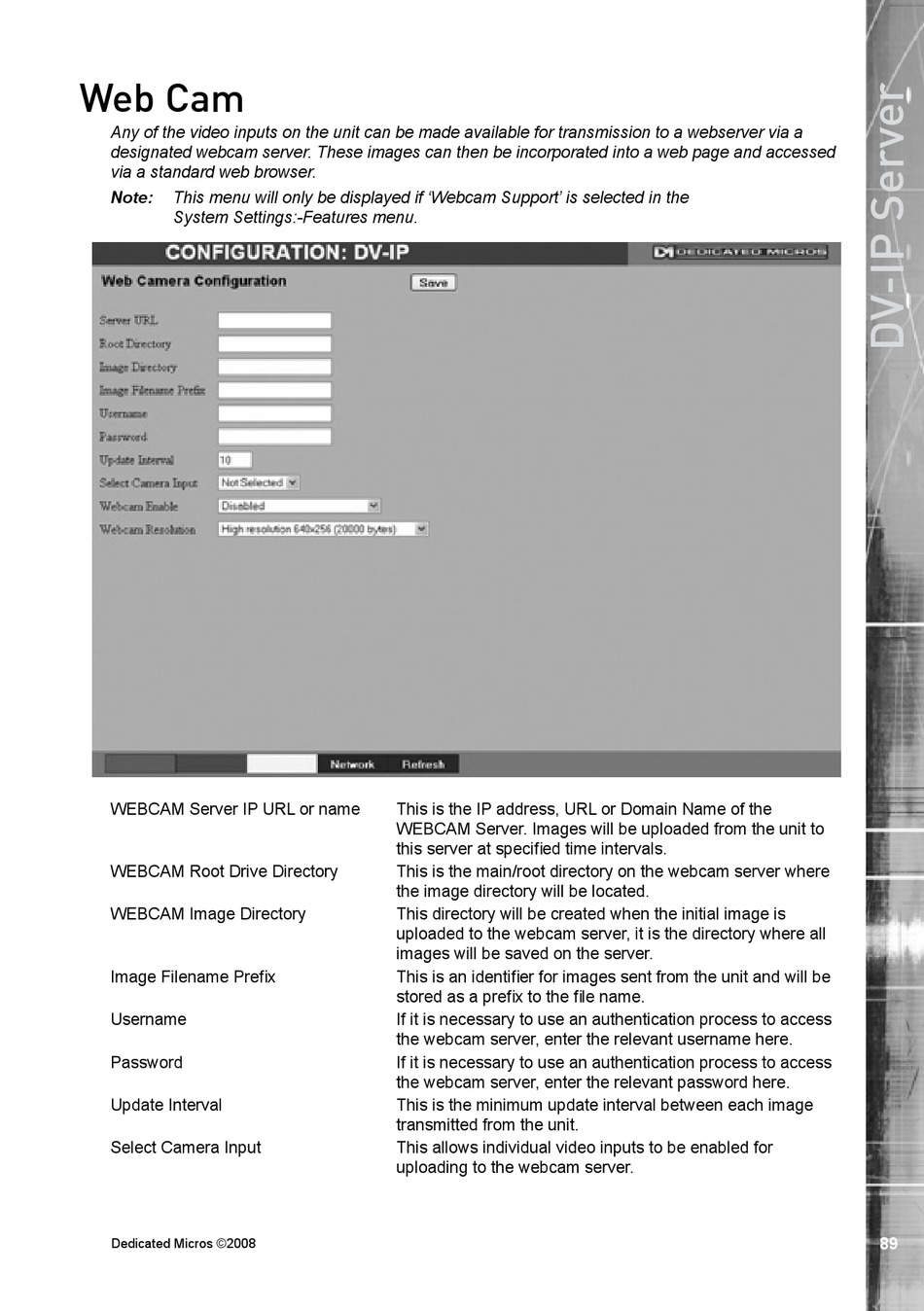

Web Cam
Any of the video inputs on the unit can be made available for transmission to a webserver via a
designated webcam server. These images can then be incorporated into a web page and accessed
via a standard web browser.
Note: This menu will only be displayed if 'Webcam Support' is selected in the
System Settings:-Features menu.
WEBCAM Server IP URL or name
�E�C�M ��oot Drive Directory
�E�C�M Image Directory
Image Filename Prefi�
Username
Password
Update Interval
Select Camera Input
Dedicated Micros ©2008
This is the IP address, URL or Domain Name of the
�E�C�M Server. Images will be uploaded from the unit to
this server at specified time intervals.
This is the main�root directory on the webcam server where
the image directory will be located.
This directory will be created when the initial image is
uploaded to the webcam server, it is the directory where all
images will be saved on the server.
This is an identifier for images sent from the unit and will be
stored as a prefi� to the file name.
If it is necessary to use an authentication process to access
the webcam server, enter the relevant username here.
If it is necessary to use an authentication process to access
the webcam server, enter the relevant password here.
This is the minimum update interval between each image
transmitted from the unit.
This allows individual video inputs to be enabled for
uploading to the webcam server.
