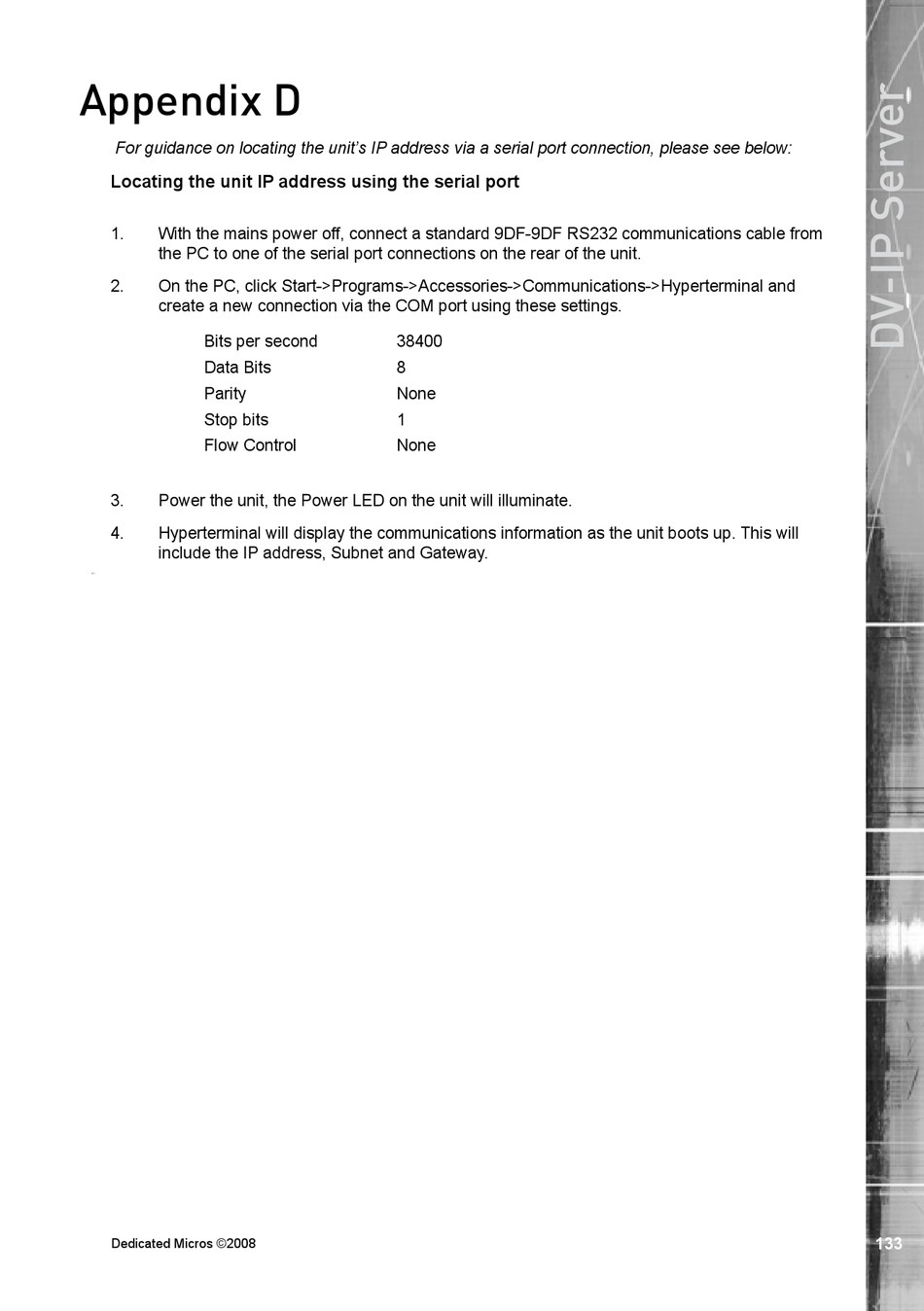

Appendix D

For guidance on locating the unit's IP address via a serial port connection, please see below:
Locating the unit IP address using the serial port
1. �ith the mains power off, connect a standard 9DF-9DF ��S232 communications cable from
the PC to one of the serial port connections on the rear of the unit.
2. On the PC, click Start->Programs->�ccessories->Communications->Hyperterminal and
create a new connection via the COM port using these settings.
Bits per second
Data Bits
Parity
Stop bits
Flow Control
3. Power the unit, the Power �ED on the unit will illuminate.
4. Hyperterminal will display the communications information as the unit boots up. This will
include the IP address, Subnet and Gateway.
9.1
Dedicated Micros ©2008
38400
8
None
1
None
