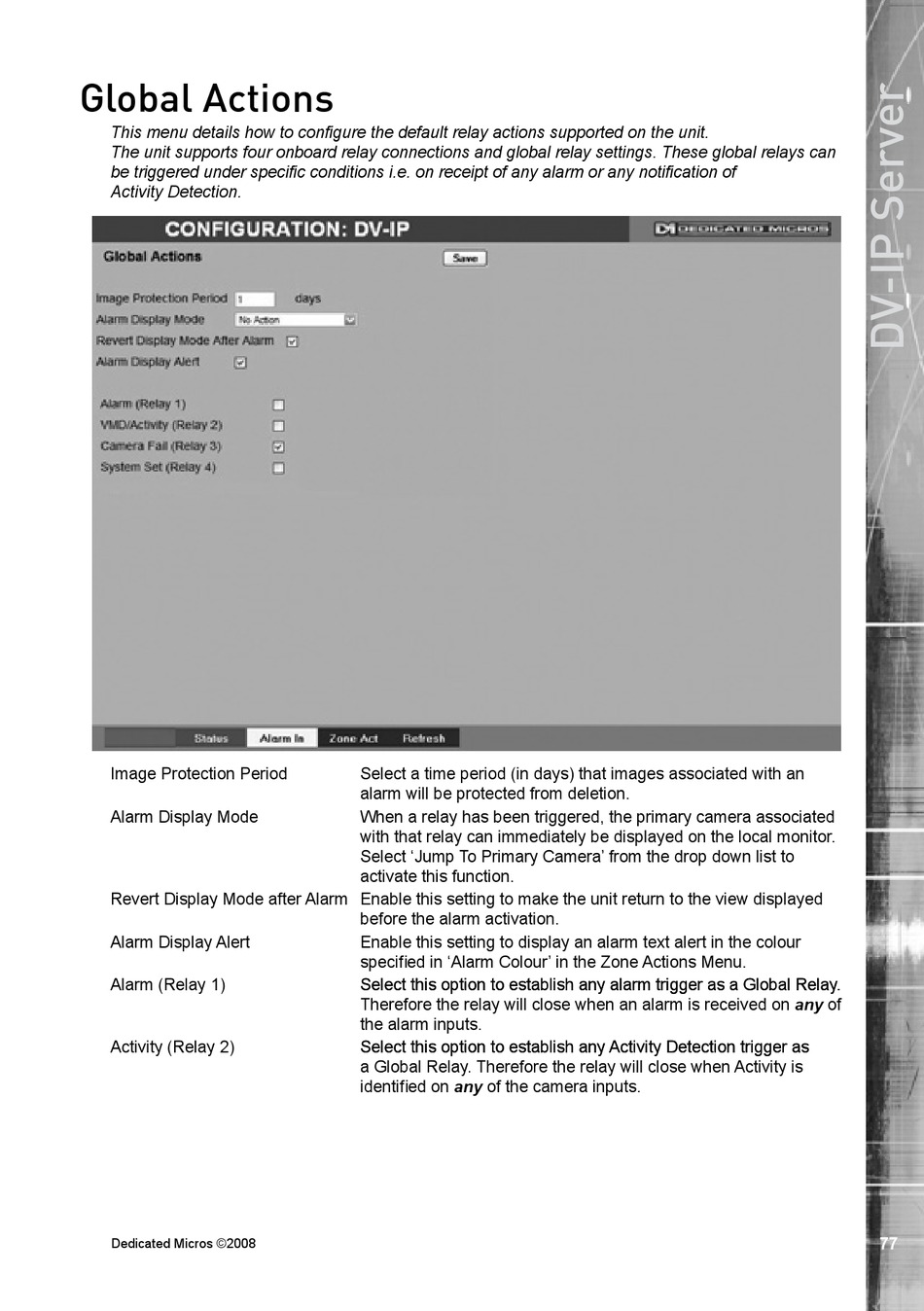

Global Actions
This menu details how to configure the default relay actions supported on the unit.
The unit supports four onboard relay connections and global relay settings. These global relays can
be triggered under specific conditions i.e. on receipt of any alarm or any notification of
Activity Detection.
Image Protection Period
�larm Display Mode
��evert Display Mode after �larm Enable this setting to make the unit return to the view displayed
�larm Display �lert
�larm (��elay 1)
�ctivity (��elay 2)
Dedicated Micros ©2008
Select a time period (in days) that images associated with an
alarm will be protected from deletion.
�hen a relay has been triggered, the primary camera associated
with that relay can immediately be displayed on the local monitor.
Select 'Jump To Primary Camera' from the drop down list to
activate this function.
before the alarm activation.
Enable this setting to display an alarm te�t alert in the colour
specified in '�larm Colour' in the Zone �ctions Menu.
Select this option to establish any alarm trigger as a Global ��elay. Select this option to establish any alarm trigger as a Global ��elay.
Therefore the relay will close when an alarm is received on any of
the alarm inputs.
Select this option to establish any �ctivity Detection trigger as Select this option to establish any �ctivity Detection trigger as
a Global ��elay. Therefore the relay will close when �ctivity is
identified on any of the camera inputs.
