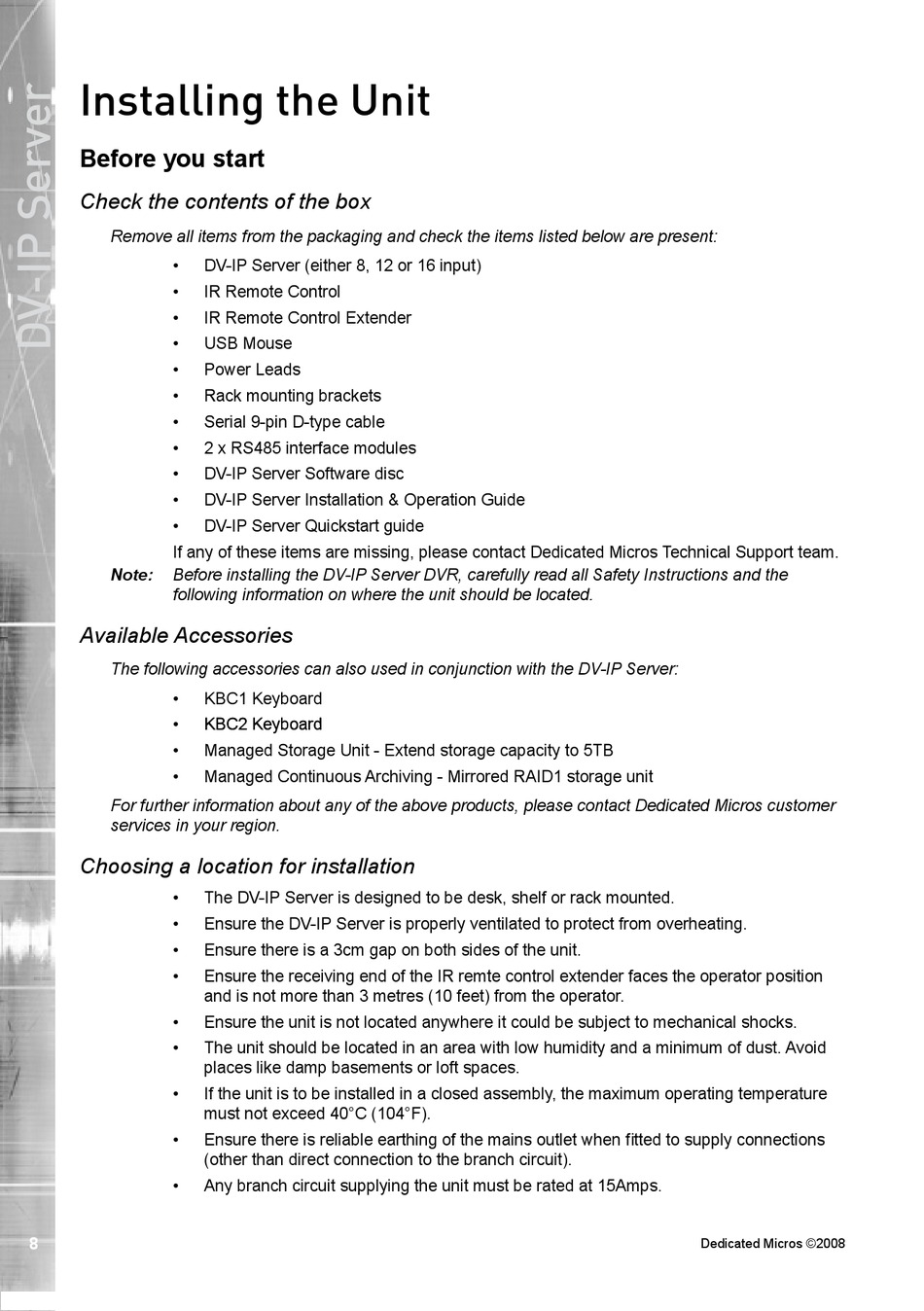

Installing the Unit

Before you start

Check the contents of the box
Remove all items from the packaging and check the items listed below are present:
•� DV-IP Server �either 8, 12 or 16 input�
•� IR Remote Control
•� IR Remote Control Extender
•� USB Mouse
• Power �eads
• ��ack mounting brackets
• Serial 9-pin D-type cable
•� 2 x RS485 interface modules
• D�-IP Server Software disc
•� DV-IP Server Installation & �peration Guide
• D�-IP Server �uickstart guide
If any of these items are missing, please contact Dedicated Micros Technical Support team.
Note: Before installing the DV-IP Server DVR, carefully read all Safety Instructions and the
following information on where the unit should be located.
Available Accessories
The following accessories can also used in conjunction with the DV-IP Server:
• ��C1 �eyboard
• ��C2 �eyboard ��C2 �eyboard
•� Managed Storage Unit - Extend storage capacity to 5TB
•� Managed Continuous Archiving - Mirrored RAID1 storage unit
For further information about any of the above products, please contact Dedicated Micros customer
services in your region.

Choosing a location for installation

• The D�-IP Server is designed to be desk, shelf or rack mounted.
• Ensure the D�-IP Server is properly ventilated to protect from overheating.
• Ensure there is a 3cm gap on both sides of the unit.
•� Ensure the receiving end of the IR remte control extender faces the operator position
and is not more than 3 metres �10 feet) from the operator.
• Ensure the unit is not located anywhere it could be subject to mechanical shocks.
• The unit should be located in an area with low humidity and a minimum of dust. �void
places like damp basements or loft spaces.
• If the unit is to be installed in a closed assembly, the ma�imum operating temperature
must not e�ceed 40°C (104°F).
• Ensure there is reliable earthing of the mains outlet when fitted to supply connections
(other than direct connection to the branch circuit).
• �ny branch circuit supplying the unit must be rated at 15�mps.

Dedicated Micros ©2008
