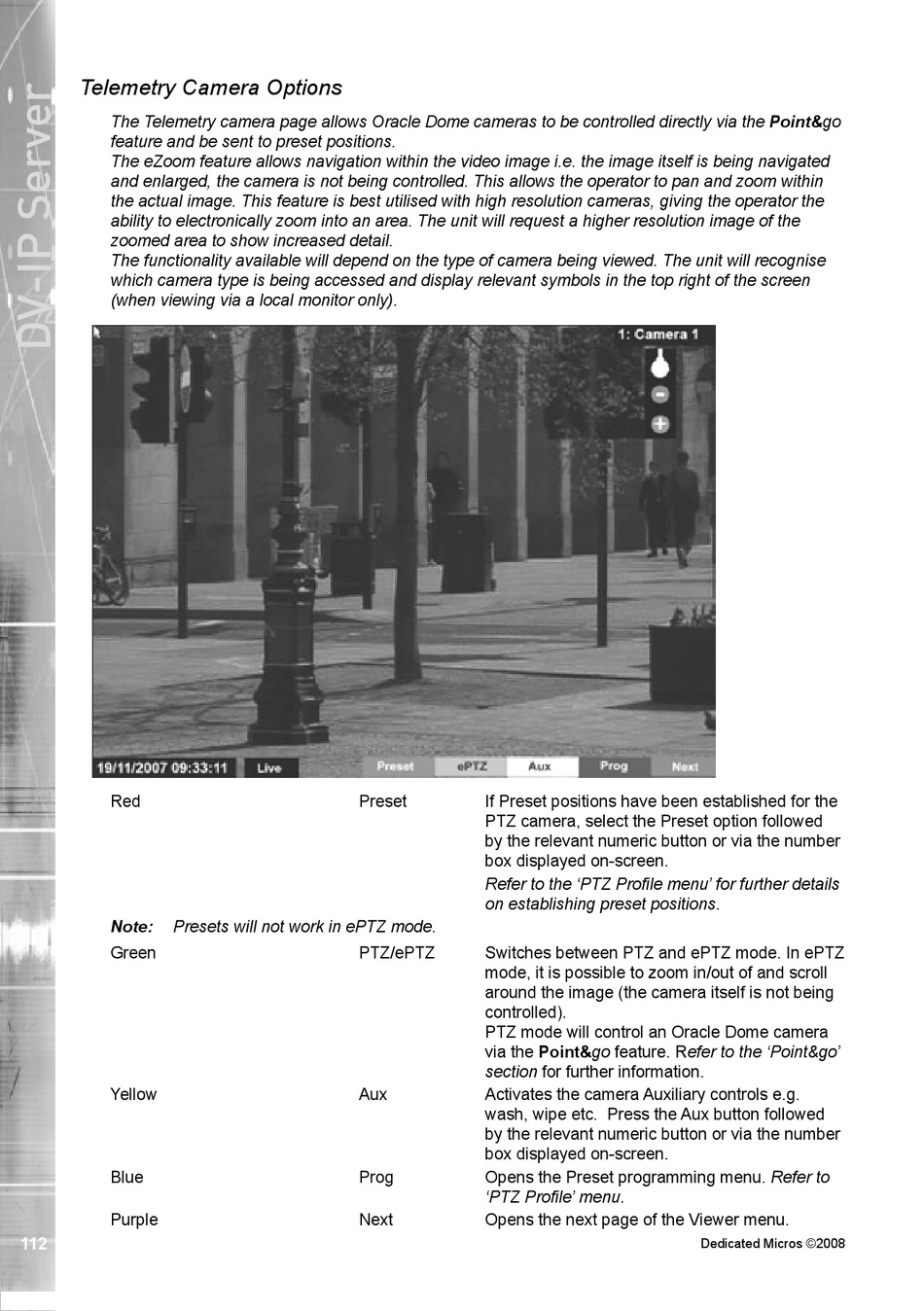

Telemetry Camera Options
The Telemetry camera page allows Oracle Dome cameras to be controlled directly via the Point&go
feature and be sent to preset positions.
The eZoom feature allows navigation within the video image i.e. the image itself is being navigated
and enlarged, the camera is not being controlled. This allows the operator to pan and zoom within
the actual image. This feature is best utilised with high resolution cameras, giving the operator the
ability to electronically zoom into an area. The unit will request a higher resolution image of the
zoomed area to show increased detail.
The functionality available will depend on the type of camera being viewed. The unit will recognise
which camera type is being accessed and display relevant symbols in the top right of the screen
(when viewing via a local monitor only).
��ed
Note: Presets will not work in ePTZ mode.
Green
��ellow
�lue
Purple
11
Preset If Preset positions have been established for the
PTZ camera, select the Preset option followed
by the relevant numeric button or via the number
bo� displayed on-screen.
Refer to the 'PTZ Profile menu' for further details
on establishing preset positions.
PTZ�ePTZ Switches between PTZ and ePTZ mode. In ePTZ
mode, it is possible to zoom in�out of and scroll
around the image (the camera itself is not being
controlled).
PTZ mode will control an Oracle Dome camera
via the Point&go feature. ��efer to the 'Point&go'
section for further information.
�u� �ctivates the camera �u�iliary controls e.g.
wash, wipe etc. Press the �u� button followed
by the relevant numeric button or via the number
bo� displayed on-screen.
Prog Opens the Preset programming menu. Refer to
'PTZ Profile' menu.
Ne�t Opens the ne�t page of the �iewer menu.
