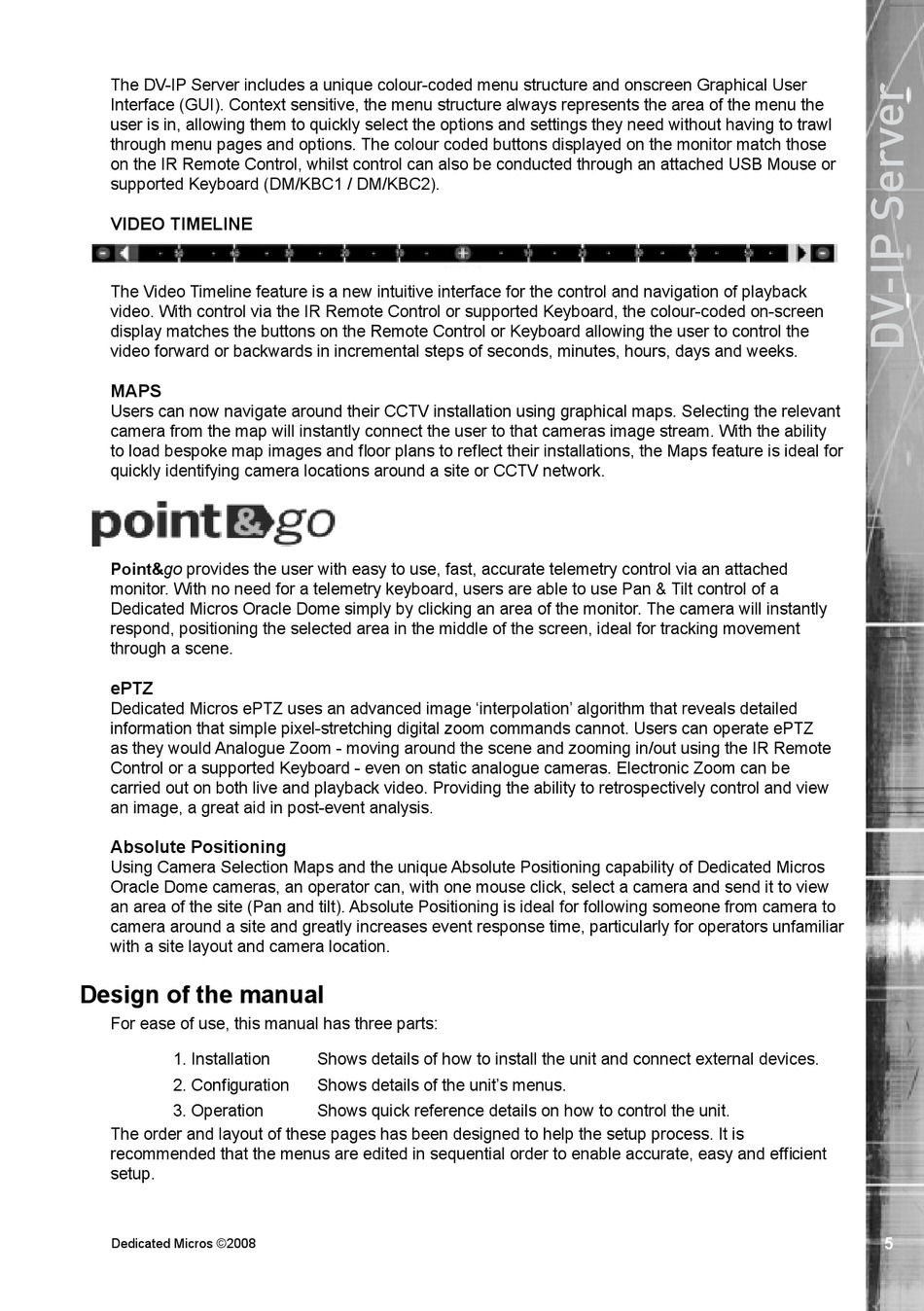

The DV-IP Server includes a unique colour-coded menu structure and onscreen Graphical User
Interface (GUI). Conte�t sensitive, the menu structure always represents the area of the menu the
user is in, allowing them to quickly select the options and settings they need without having to trawl
through menu pages and options. The colour coded buttons displayed on the monitor match those
on the I�� ��emote Control, whilst control can also be conducted through an attached US� Mouse or
supported �eyboard (DM���C1 � DM���C2).
VIDEO TIMELINE
The �ideo Timeline feature is a new intuitive interface for the control and navigation of playback
video. �ith control via the I�� ��emote Control or supported �eyboard, the colour-coded on-screen
display matches the buttons on the ��emote Control or �eyboard allowing the user to control the
video forward or backwards in incremental steps of seconds, minutes, hours, days and weeks.
MAPS
Users can now navigate around their CCT� installation using graphical maps. Selecting the relevant
camera from the map will instantly connect the user to that cameras image stream. �ith the ability
to load bespoke map images and ��oor plans to re��ect their installations, the Maps feature is ideal for
quickly identifying camera locations around a site or CCT� network.
Point&go provides the user with easy to use, fast, accurate telemetry control via an attached
monitor. �ith no need for a telemetry keyboard, users are able to use Pan & Tilt control of a
Dedicated Micros Oracle Dome simply by clicking an area of the monitor. The camera will instantly
respond, positioning the selected area in the middle of the screen, ideal for tracking movement
through a scene.
ePTZ
Dedicated Micros ePTZ uses an advanced image 'interpolation' algorithm that reveals detailed
information that simple pi�el-stretching digital zoom commands cannot. Users can operate ePTZ
as they would �nalogue Zoom - moving around the scene and zooming in�out using the I�� ��emote
Control or a supported �eyboard - even on static analogue cameras. Electronic Zoom can be
carried out on both live and playback video. Providing the ability to retrospectively control and view
an image, a great aid in post-event analysis.
Absolute Positioning
Using Camera Selection Maps and the unique �bsolute Positioning capability of Dedicated Micros
Oracle Dome cameras, an operator can, with one mouse click, select a camera and send it to view
an area of the site (Pan and tilt). �bsolute Positioning is ideal for following someone from camera to
camera around a site and greatly increases event response time, particularly for operators unfamiliar
with a site layout and camera location.

Design of the manual

For ease of use, this manual has three parts:
1. Installation
2. Configuration
3. Operation
The order and layout of these pages has been designed to help the setup process. It is
recommended that the menus are edited in sequential order to enable accurate, easy and efficient
setup.
Dedicated Micros ©2008
Shows details of how to install the unit and connect e�ternal devices.
Shows details of the unit's menus.
Shows quick reference details on how to control the unit.
