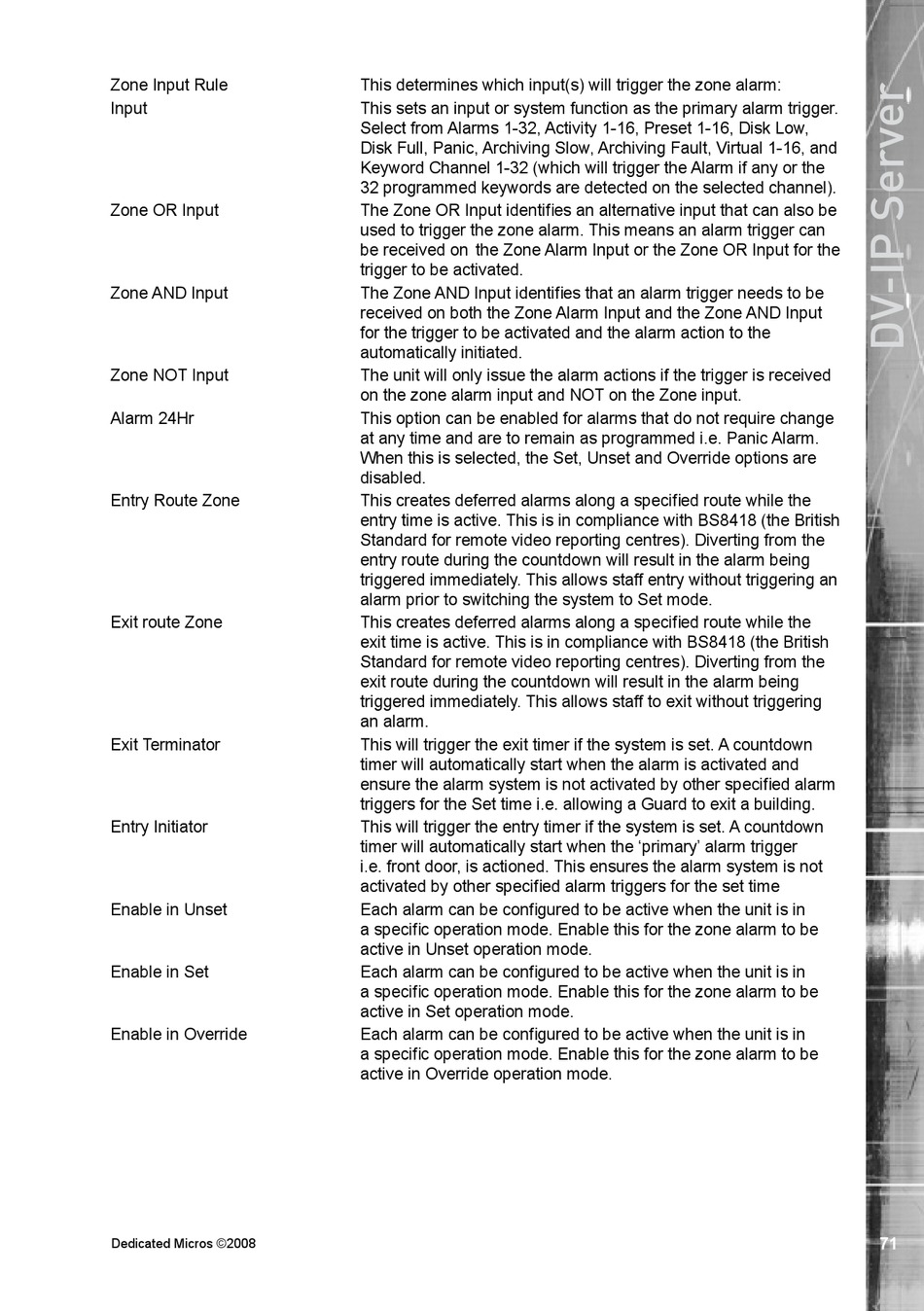

Dedicated Micros DV-IP Installation And Operation Manual page 71

Zone Input ��ule
Input
Zone O�� Input
Zone �ND Input
Zone NOT Input
�larm 24Hr
Entry ��oute Zone
E�it route Zone
E�it Terminator
Entry Initiator
Enable in Unset
Enable in Set
Enable in Override
Dedicated Micros ©2008
This determines which input(s) will trigger the zone alarm:
This sets an input or system function as the primary alarm trigger.
Select from �larms 1-32, �ctivity 1-16, Preset 1-16, Disk �ow,
Disk Full, Panic, �rchiving Slow, �rchiving Fault, �irtual 1-16, and
�eyword Channel 1-32 (which will trigger the �larm if any or the
32 programmed keywords are detected on the selected channel).
The Zone O�� Input identifies an alternative input that can also be
used to trigger the zone alarm. This means an alarm trigger can
be received on the Zone �larm Input or the Zone O�� Input for the
trigger to be activated.
The Zone �ND Input identifies that an alarm trigger needs to be
received on both the Zone �larm Input and the Zone �ND Input
for the trigger to be activated and the alarm action to the
automatically initiated.
The unit will only issue the alarm actions if the trigger is received
on the zone alarm input and NOT on the Zone input.
This option can be enabled for alarms that do not require change
at any time and are to remain as programmed i.e. Panic �larm.
When this is selected, the Set, Unset and �verride options are
disabled.
This creates deferred alarms along a specified route while the
entry time is active. This is in compliance with �S8418 (the �ritish
Standard for remote video reporting centres). Diverting from the
entry route during the countdown will result in the alarm being
triggered immediately. This allows staff entry without triggering an
alarm prior to switching the system to Set mode.
This creates deferred alarms along a specified route while the
e�it time is active. This is in compliance with �S8418 (the �ritish
Standard for remote video reporting centres). Diverting from the
e�it route during the countdown will result in the alarm being
triggered immediately. This allows staff to e�it without triggering
an alarm.
This will trigger the e�it timer if the system is set. � countdown
timer will automatically start when the alarm is activated and
ensure the alarm system is not activated by other specified alarm
triggers for the Set time i.e. allowing a Guard to e�it a building.
This will trigger the entry timer if the system is set. � countdown
timer will automatically start when the 'primary' alarm trigger
i.e. front door, is actioned. This ensures the alarm system is not
activated by other specified alarm triggers for the set time
Each alarm can be configured to be active when the unit is in
a specific operation mode. Enable this for the zone alarm to be
active in Unset operation mode.
Each alarm can be configured to be active when the unit is in
a specific operation mode. Enable this for the zone alarm to be
active in Set operation mode.
Each alarm can be configured to be active when the unit is in
a specific operation mode. Enable this for the zone alarm to be
active in Override operation mode.
