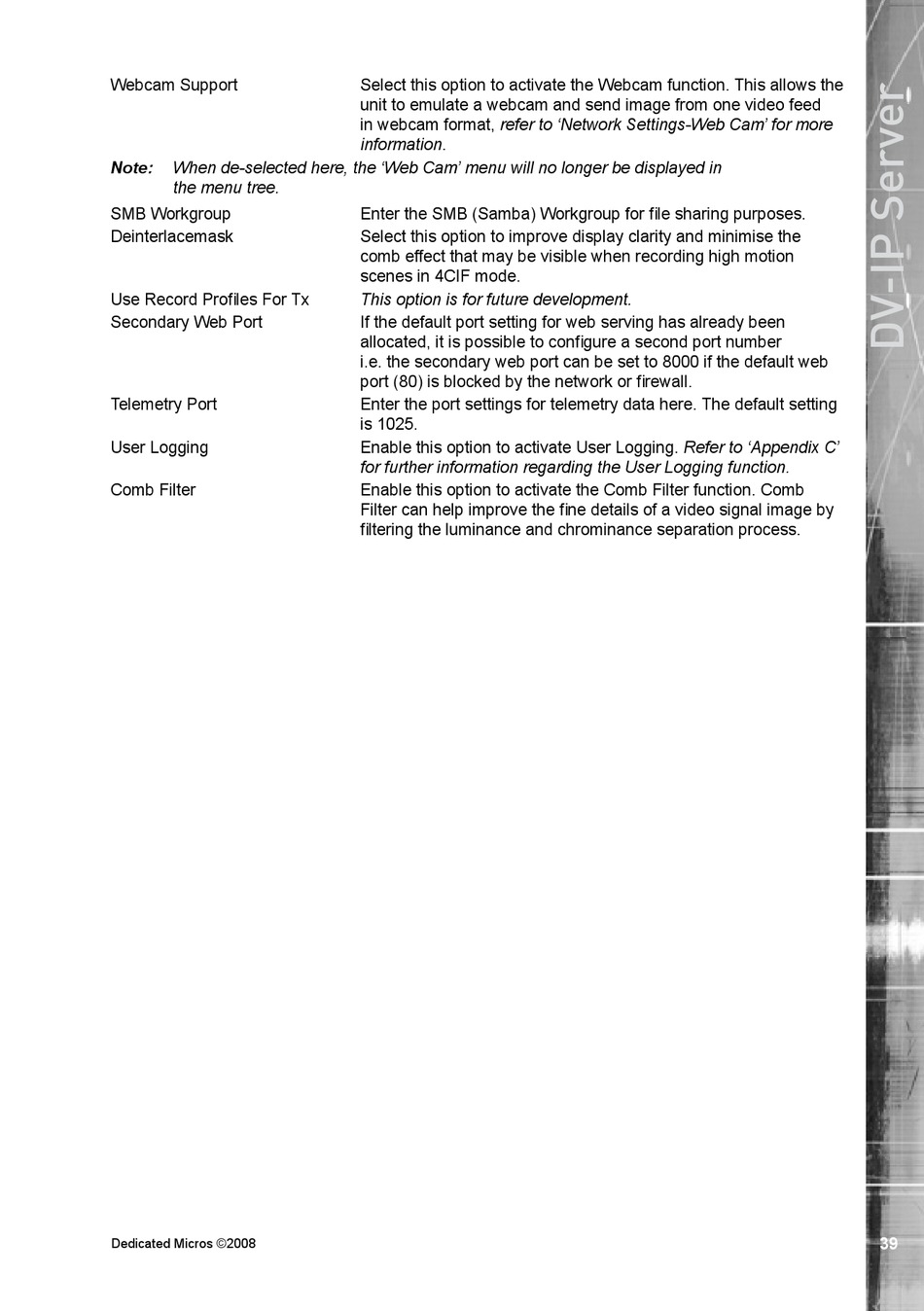

Dedicated Micros DV-IP Installation And Operation Manual page 39

�ebcam Support
Note: When de-selected here, the 'Web Cam' menu will no longer be displayed in
the menu tree.
SM� �orkgroup
Deinterlacemask
Use ��ecord Profiles For T�
Secondary �eb Port
Telemetry Port
User �ogging
Comb Filter
Dedicated Micros ©2008
Select this option to activate the �ebcam function. This allows the
unit to emulate a webcam and send image from one video feed
in webcam format, refer to 'Network Settings-Web Cam' for more
information.
Enter the SM� (Samba) �orkgroup for file sharing purposes.
Select this option to improve display clarity and minimise the
comb effect that may be visible when recording high motion
scenes in 4CIF mode.
This option is for future development.
If the default port setting for web serving has already been
allocated, it is possible to configure a second port number
i.e. the secondary web port can be set to 8000 if the default web
port (80) is blocked by the network or firewall.
Enter the port settings for telemetry data here. The default setting
is 1025.
Enable this option to activate User �ogging. Refer to 'Appendix C'
for further information regarding the User Logging function.
Enable this option to activate the Comb Filter function. Comb
Filter can help improve the fine details of a video signal image by
filtering the luminance and chrominance separation process.
