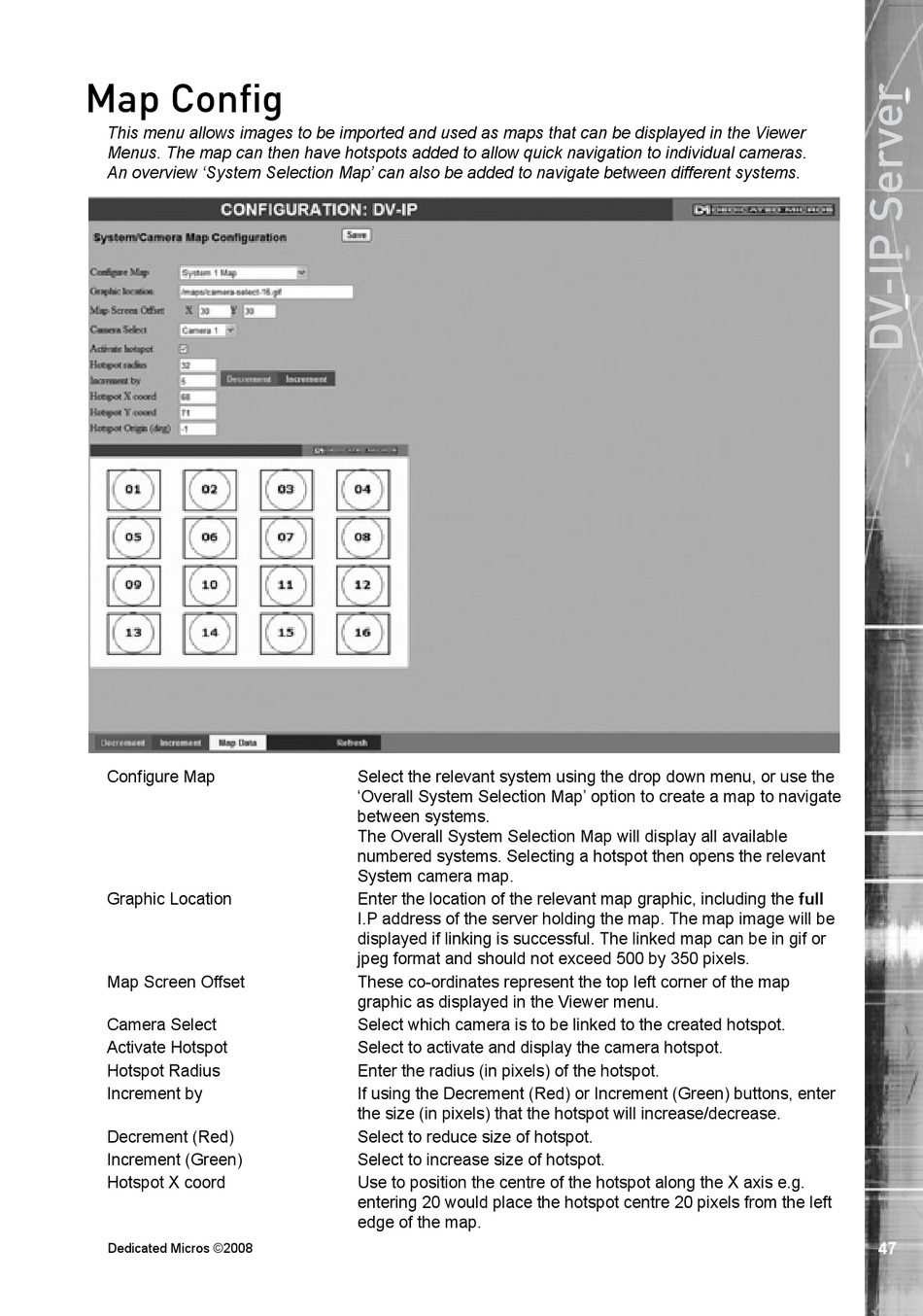

Map Config

This menu allows images to be imported and used as maps that can be displayed in the Viewer
Menus. The map can then have hotspots added to allow quick navigation to individual cameras.
An overview 'System Selection Map' can also be added to navigate between different systems.
Configure Map
Graphic Location
Map Screen �ffset
Camera Select
�ctivate Hotspot
Hotspot ��adius
Increment by
Decrement (��ed)
Increment (Green)
Hotspot X coord
Dedicated Micros ©2008
Select the relevant system using the drop down menu, or use the
'Overall System Selection Map' option to create a map to navigate
between systems.
The Overall System Selection Map will display all available
numbered systems. Selecting a hotspot then opens the relevant
System camera map.
Enter the location of the relevant map graphic, including the full
I.P address of the server holding the map. The map image will be
displayed if linking is successful. The linked map can be in gif or
jpeg format and should not e�ceed 500 by 350 pi�els.
These co-ordinates represent the top left corner of the map
graphic as displayed in the �iewer menu.
Select which camera is to be linked to the created hotspot.
Select to activate and display the camera hotspot.
Enter the radius (in pi�els) of the hotspot.
If using the Decrement (��ed) or Increment (Green) buttons, enter
the size (in pi�els) that the hotspot will increase�decrease.
Select to reduce size of hotspot.
Select to increase size of hotspot.
Use to position the centre of the hotspot along the X a�is e.g.
entering 20 would place the hotspot centre 20 pi�els from the left
edge of the map.
