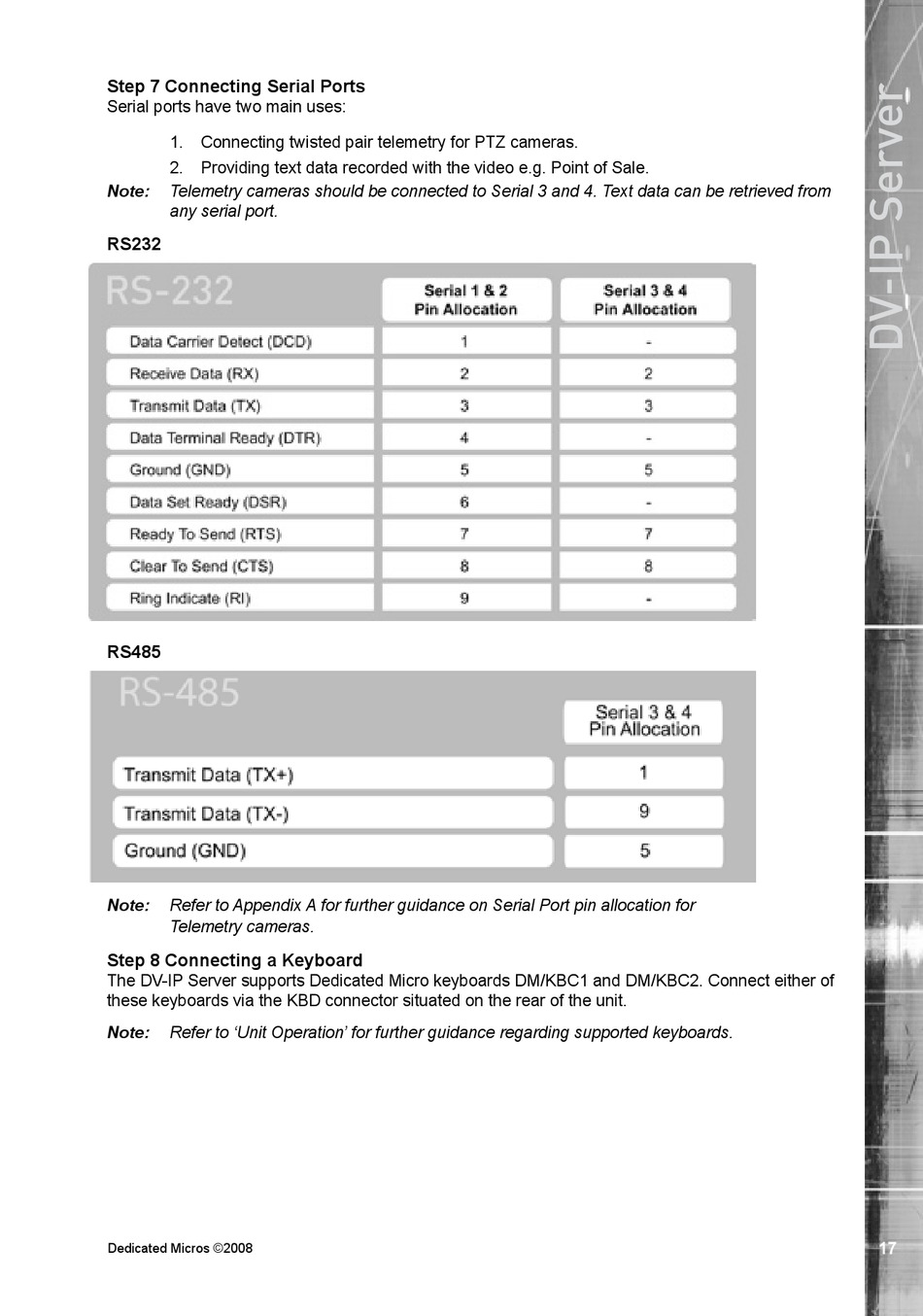

Dedicated Micros DV-IP Installation And Operation Manual page 17

Step  Connecting Serial Ports
Serial ports have two main uses:
1. Connecting twisted pair telemetry for PTZ cameras.
2. Providing te�t data recorded with the video e.g. Point of Sale.
Note: Telemetry cameras should be connected to Serial 3 and 4. Text data can be retrieved from
any serial port.
RS
RS
Note: Refer to Appendix A for further guidance on Serial Port pin allocation for
Telemetry cameras.
Step  Connecting a Keyboard
The D�-IP Server supports Dedicated Micro keyboards DM���C1 and DM���C2. Connect either of
these keyboards via the ��D connector situated on the rear of the unit.
Note: Refer to 'Unit Operation' for further guidance regarding supported keyboards.
Dedicated Micros ©2008
