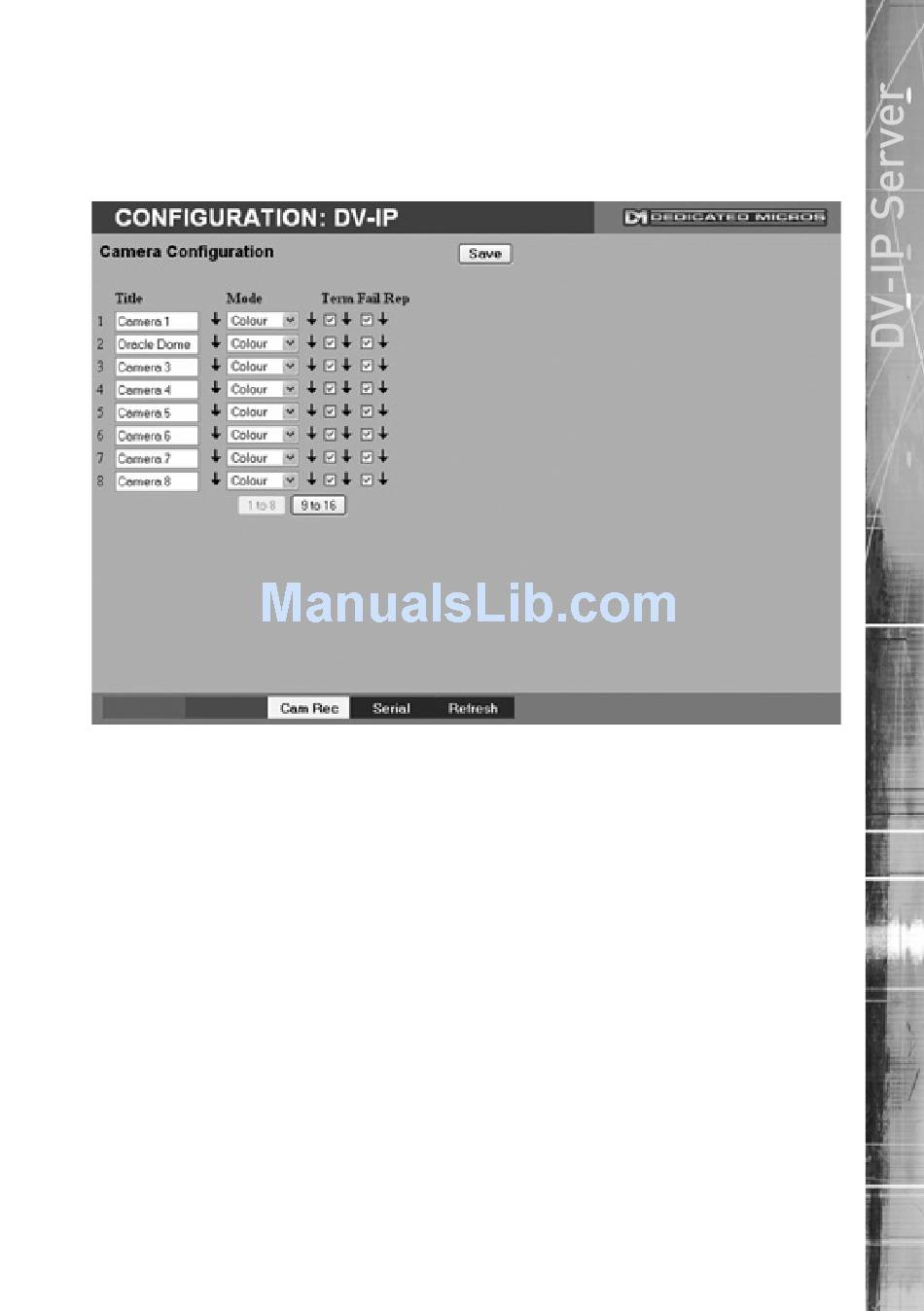

Camera
This menu allows the configuration of active local camera channels. This page will only display the
cameras connected to the DVR via the BNC connectors on the rear of the unit, cameras in non-local
systems cannot be edited on this page.
Title
Note: If a camera title is entered via the local monitor, an on-screen virtual keyboard will be
displayed to aid text entry.
Mode
Term
Fail Rep
Note: The arrow button displayed next to each textbox allows settings to be replicated for those
cameras listed below. This will only affect the adjacent option i.e. Mode arrow will replicate
the Mode setting to cameras below the clicked arrow.
Dedicated Micros ©2008
Each of the camera titles can be edited for ease of use i.e. the
camera type, location or view description could be used.
The settings will default to 'Colour'. If Monochrome cameras
are used, select 'Mono'. Selecting 'Mono' will remove colour
patterning. If a particular channel is not in use or the camera has
failed, select 'Not Connected'.
The unit will automatically terminate the camera input with 75Ω.
This should be disabled if the video feed is looped through to
another device.
Select this option to activate a Failure report in the event of
camera connection failure.
