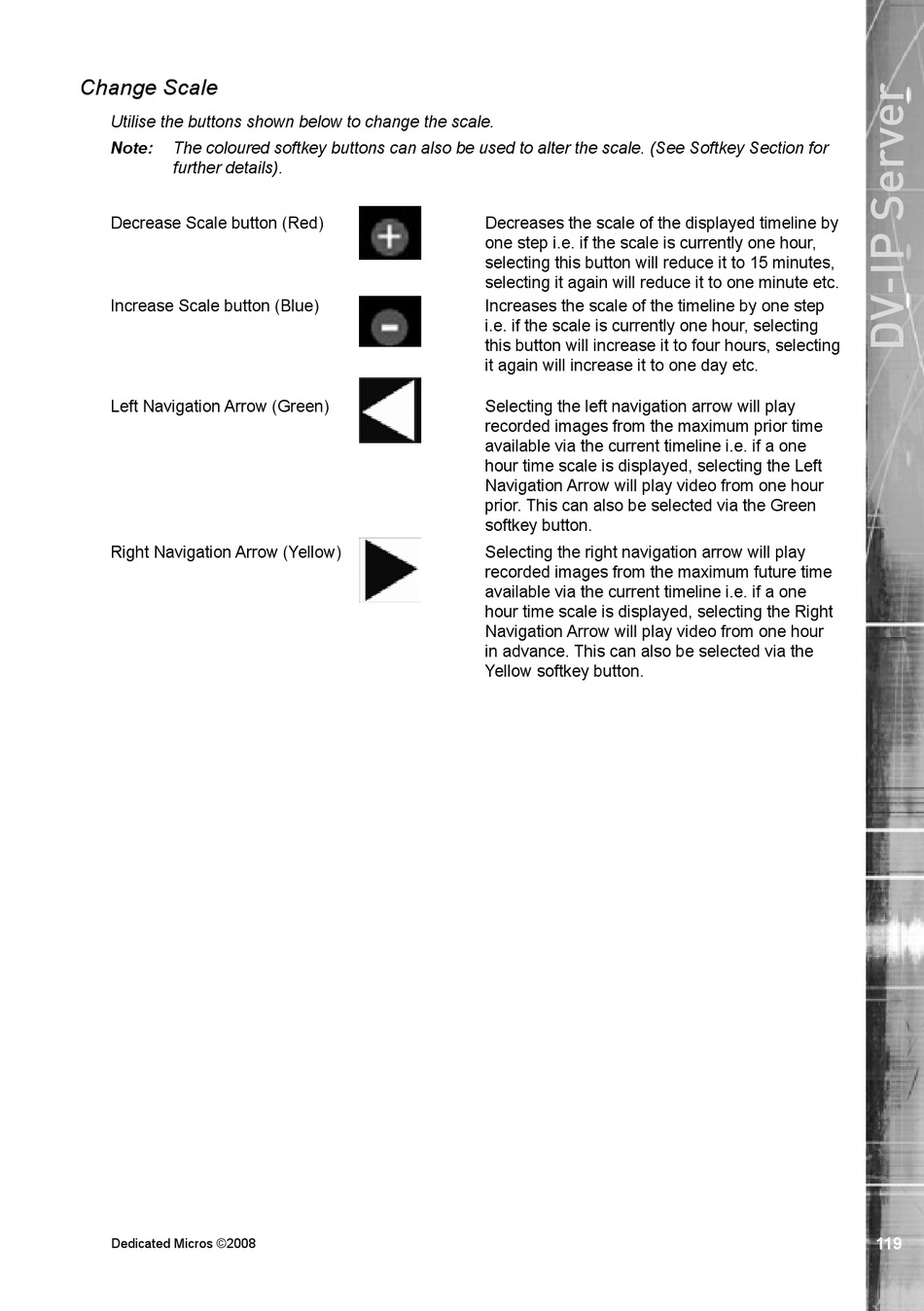

Change Scale
Utilise the buttons shown below to change the scale.
Note: The coloured softkey buttons can also be used to alter the scale. (See Softkey Section for
further details).
Decrease Scale button (��ed)
Increase Scale button (�lue)
�eft Navigation �rrow (Green)
��ight Navigation �rrow (��ellow)
Dedicated Micros ©2008
Decreases the scale of the displayed timeline by
one step i.e. if the scale is currently one hour,
selecting this button will reduce it to 15 minutes,
selecting it again will reduce it to one minute etc.
Increases the scale of the timeline by one step
i.e. if the scale is currently one hour, selecting
this button will increase it to four hours, selecting
it again will increase it to one day etc.
Selecting the left navigation arrow will play
recorded images from the maximum prior time
available via the current timeline i.e. if a one
hour time scale is displayed, selecting the Left
Navigation �rrow will play video from one hour
prior. This can also be selected via the Green
softkey button.
Selecting the right navigation arrow will play
recorded images from the maximum future time
available via the current timeline i.e. if a one
hour time scale is displayed, selecting the Right
Navigation �rrow will play video from one hour
in advance. This can also be selected via the
��ellow softkey button.
11
