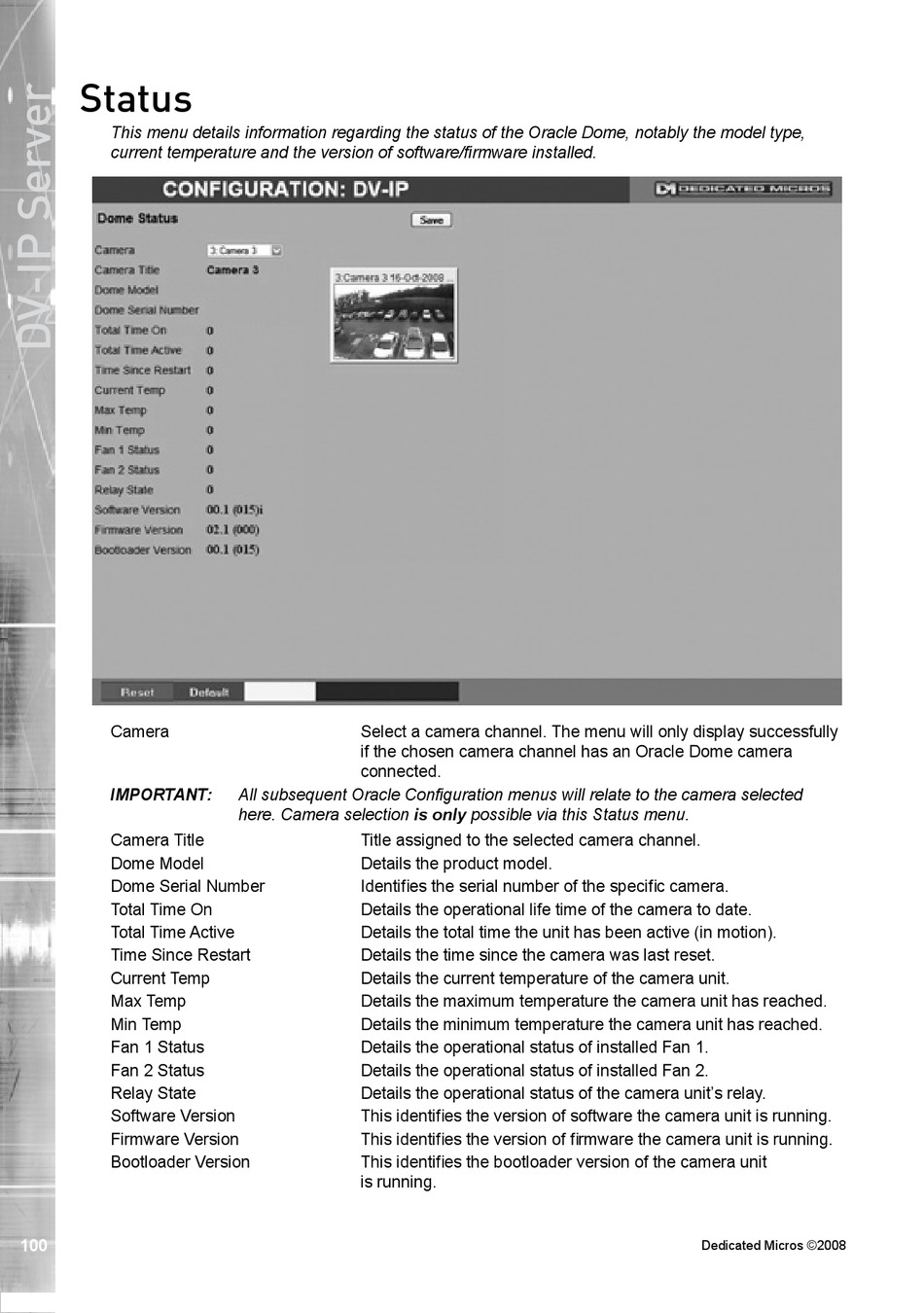

Status
This menu details information regarding the status of the Oracle Dome, notably the model type,
current temperature and the version of software/firmware installed.
Camera
IMPORTANT:
Camera Title
Dome Model
Dome Serial Number
Total Time On
Total Time �ctive
Time Since ��estart
Current Temp
Ma� Temp
Min Temp
Fan 1 Status
Fan 2 Status
��elay State
Software �ersion
Firmware �ersion
�ootloader �ersion
100
Select a camera channel. The menu will only display successfully
if the chosen camera channel has an �racle Dome camera
connected.
All subsequent Oracle Configuration menus will relate to the camera selected
here. Camera selection is only possible via this Status menu.
Title assigned to the selected camera channel.
Details the product model.
Identifies the serial number of the specific camera.
Details the operational life time of the camera to date.
Details the total time the unit has been active (in motion).
Details the time since the camera was last reset.
Details the current temperature of the camera unit.
Details the ma�imum temperature the camera unit has reached.
Details the minimum temperature the camera unit has reached.
Details the operational status of installed Fan 1.
Details the operational status of installed Fan 2.
Details the operational status of the camera unit's relay.
This identifies the version of software the camera unit is running.
This identifies the version of firmware the camera unit is running.
This identifies the bootloader version of the camera unit
is running.
Dedicated Micros ©2008
