Dedicated Micros DV-IP Setup Manual

Hide thumbs Also See for DV-IP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Setup Manual

Power Supply

and Video
Encoder
for Dennard Domes
Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV-IP and is the answer not in the manual?

Questions and answers

Related Manuals for Dedicated Micros DV-IP

Summary of Contents for Dedicated Micros DV-IP

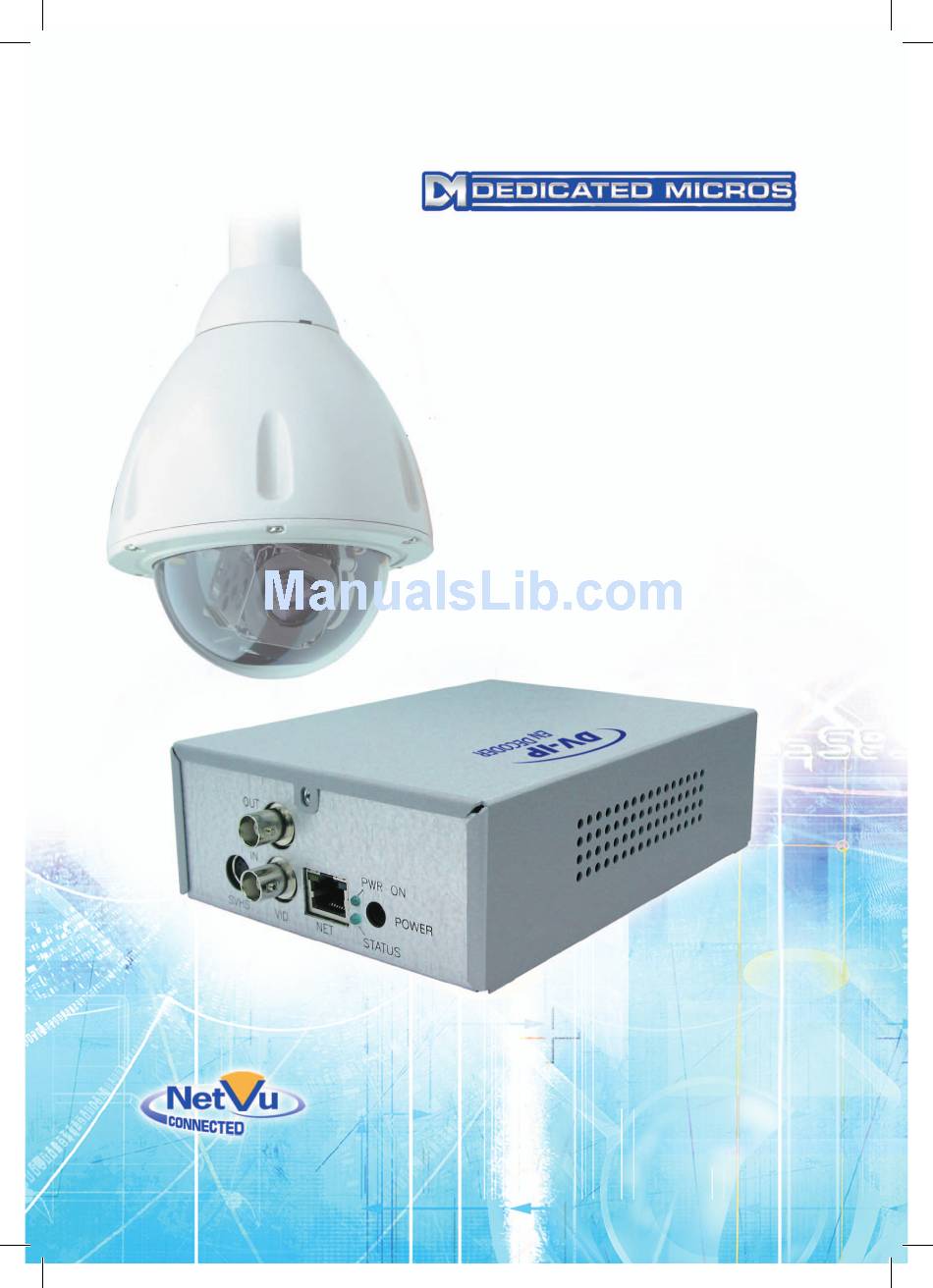

  • Page 1: Power Supply

    Power Supply and Video Encoder for Dennard Domes Setup Guide...

  • Page 2: Table Of Contents

    Appendix A ............27 Appendix B ............28 1.01002 Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or modify the specification of the machine described herein without prejudice. Dedicated Micros ©2007...

  • Page 3: Introduction

    The IP Dome System consists of a regular Dome Camera and a combined power supply unit and DV-IP Encoder to convert the analogue signal to a digital video stream. The system is designed to offer a robust and weatherproof interface to the network for a single video source, possibly a remote camera situated in a position that makes analogue cabling impractical.
  • Page 4 A “Declaration of Conformity” is held at Dedicated Micros LTD, 1200 Daresbury Park, Daresbury, Cheshire WA4 4HS WWW.dedicatedmicros.com Hereby, Dedicated Micros LTD, declares that this Analogue to IP Encoder is in compliance with the essential requirements and other relevant provisions of Directive 95/5/EC.
  • Page 5 Dennard Domes er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC Dedicated Microcomputers Group erklærer herved at utstyret Power Supply and Video Encoder for Dennard Domes er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF 1.043 Dedicated Micros ©2007...
  • Page 6 This product is compliant with Class A ICES-003 Note: This Class A product meets the requirements of the Canadian Interference causing equipment regulations. Cet appareil numerique de la Classe A, respect toutes les exigencies du reglement sur le materiel brouilleur du Canada. Dedicated Micros ©2007...

  • Page 7: Electrical Connections

    1.602 Configuration for 2060 Dome The DV-IP PSU can connect using co-ax, power pair & RS485 pair, or via an installer supplied co-ax and power/data wiring. These leads should be connected to the DV-IP PSU. Connecting a camera using co-ax, power pair & RS8 pair (see key below)

  • Page 8: Mains Connection

    The Network connection is made to the back of the DV-IP encoder unit. To ensure CE compliance, use a screened network cable (K) and fit the supplied ferrite as close as possible to the DV-IP socket, as shown in the diagram above.

  • Page 9: Other Connections

    1.81 Audio connection The DV-IP encoder provides connection for one Audio input and one Audio output, using RCA plugs. Connect a suitable microphone to the AUDIO IN connection, connect a suitable speaker to the AUDIO OUT. The diagram shows the audio cable entering via a user installed gland below the network gland.

  • Page 10: Overview Of The Dv-Ip Encoder

    PWR ON - Green STATUS - Green 1) Video The DV-IP Encoder supports a Video In for an analogue video source, this can be via the 75Ω BNC connector or the S-VHS Y-C connector. 5.101 Note: This will be already connected by a coax to the BNC connector on the DV-IP Dome PSU’s interface PCB.
  • Page 11 British Standard BS8418. 5.151 ) Audio The DV-IP Encoder support a single channel of bi-directional audio, accessable through NetVu ObserVer. Connect the audio equipment to the phono sockets AUDIO IN and AUDIO OUT. The following modes of operation will be supported: •...

  • Page 12: Configuring The Unit

    The unit is configured using on the on-board web pages. To access these: Launch Internet Explorer (or Netscape Navigator). 6.12 Type the IP address of the unit into the address bar. The Main Menu page will be displayed. 6.13 Dedicated Micros ©2007...
  • Page 13 The configuration menus are accessible using the links on the left hand side of the page. NOTE: Any changes made on the web pages are automatically saved when the page is closed. Use the ‘Cancel’ button to revert to the previous settings and then navigate away. Dedicated Micros ©2007...

  • Page 14: Network

    Use this button to cancel any changes before navigating away from the page. Note: The unit will need reseting to implement any changes made to this page. The unit can be reset using the ‘Restart’ button onscreen. Dedicated Micros ©2007...
  • Page 15 All other parameters on this page may be needed should Technical Support be required. Note: The unit will need reseting to implement any changes made to this page. The unit can be reset using the ‘Reset’ button onscreen. 6.41 Dedicated Micros ©2007...

  • Page 16: Video

    The bitrate dictates how much information is sent in each second of MPEG video. Higher bitrate will generally result in a better quality image, but will take more network capacity. This option will only be available if ‘Quality’ is set to CBR (Constant Bit Rate) Dedicated Micros ©2007...
  • Page 17 Administrator to determine how often the I frame will be recorded within the selected profile. Cancel Settings are automatically saved when the page is closed. Use this button to cancel any changes before navigating away from the page. 6.51 Dedicated Micros ©2007...

  • Page 18: Serial

    Note: Any changes to this page will require the unit to be reset. Use the reset button on the Network Page. Note: The telemetry receiver in the dome should be set to address number 1. Dennard domes should have the blue selector set to 0 and the yellow selector to 1 Dedicated Micros ©2007...

  • Page 19: Audio

    The Automatic Gain Control will lower an excessive volume Volume Adjustable level between 0 and 64 Cancel Settings are automatically saved when the page is closed. Use this button to cancel any changes before navigating away from the page. Dedicated Micros ©2007...

  • Page 20: User Accounts

    Use this button to cancel any changes before navigating away from the page. Note: Please ensure all configured Usernames and Passwords are retained as loss of this information may result in the unit being returned to Dedicated Micros. 6.71 Dedicated Micros ©2007...
  • Page 21 Add to enable a new user, providing the name and assigned password for the user. Once this is saved, the account will appear in the lower pane. If no video accounts are set up, the video is available to anyone over the network. 6.72 Accounts can then be edited or deleted as required. Dedicated Micros ©2007...

  • Page 22: Connections

    Connections This page shows the IP addresses of machines currently connected to the encoder via the network. IP Addresses This displays a list of up to 4 IP addresses that are connected to the encoder. Dedicated Micros ©2007...

  • Page 23: Connecting To The Encoder

    Connecting to the Encoder Using the DVR The camera connected to a DV-IP encoder can be connected to and viewed across a network using a NetVu capable DVR or server, NetVu Observer or a DV-IP encoder. To enable a NetVu capable DVR to connect to IP cameras;...
  • Page 24 ObserVer can connect directly to this video stream in the same way as it connects to a DVR. However, the camera needs to be within the same subnet as ObserVer. A DV-IP encoder can be added to ObserVer to allow the Operator to easily select the camera for viewing and control: Highlight the Stored Image Servers Folder, or if a sub-folder (a folder within a folder) is required highlight the top level folder.

  • Page 25: Controlling A Telemetry Camera

    Button to Enter Raw Telemetry Commands?’ - Refer to NetVu ObserVer documentation for more information.) To show the menu, enable Raw Commands and typre *810000. Navigate using the Pan and Tilt commands Recall preset 1 to enter. Dedicated Micros ©2007...

  • Page 26: Appendix A

    Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Ground Data Set Ready Ready to Send Clear to Send Ring Indicate RS Connectivity Description Transmit Data TX+ (A) Receive Data Receive Data Transmit Data TX- (B) Dedicated Micros ©2007...

  • Page 27: Appendix B

    Note: <ENTER> denotes pressing the Enter key on the keyboard. With mains power switched off, unscrew the four mounting screws that attach the DV-IP Encoder to the PSU chassis. Then remove the two screws that attach each mounting bracket to the encoder. Finally remove the four screws attaching the encoder’s lid to the base.
  • Page 28 Notes Dedicated Micros ©2007...
  • Page 29 Notes Dedicated Micros ©2007...
  • Page 30 Locating the unit IP address using the serial port ..................27 Mains Connection ............................8 Network ............................... 14 Network Connection ............................8 Other Connections............................9 Overview of the DV-IP Encoder ........................10 R&TTE Directive Declaration......................... 4 RF Interference warning ..........................6 RS232 Connectivity ............................. 26 RS422 Connectivity ............................. 26 RS485 Connectivity .............................
  • Page 31 Dedicated Micros ©2007...
  • Page 32 Neckarstrafle 15, 23456 Hawthorne Blvd. 41836 Hückelhoven, Germany Suite 100, Torrance, CA 90505, USA Dedicated Micros France Dedicated Micros, Australia PTY. 9-13 rue du Moulinet 5/3 Packard Avenue, Castle Hill, 75013 Paris, France NSW 2154, Australia Dedicated Micros Slovenia Dedicated Micros, Asia PTY...
