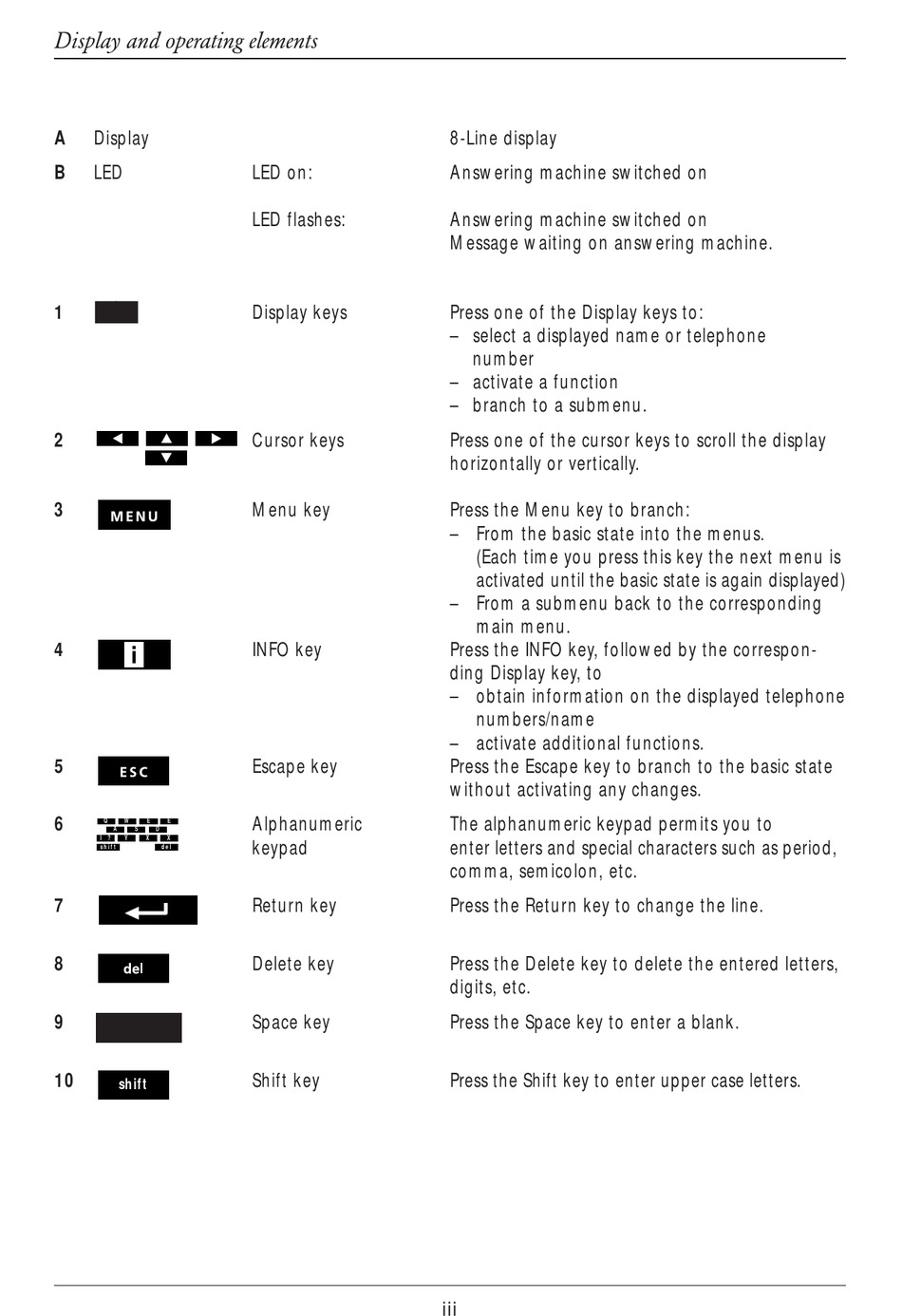

Display and operating elements
A Display
B LED
1
2
3
4
5
6
Q W E E
A S D
I ? Y X X
s h i f t d e l
7
8
9
10
shift
LED on:
LED flashes:
Display keys
Cursor keys
Menu key
INFO key
Escape key
Alphanumeric
keypad
Return key
Delete key
Space key
Shift key
8-Line display
Answering machine switched on
Answering machine switched on
Message waiting on answering machine.
Press one of the Display keys to:
– select a displayed name or telephone
number
– activate a function
– branch to a submenu.
Press one of the cursor keys to scroll the display
horizontally or vertically.
Press the Menu key to branch:
– From the basic state into the menus.
(Each time you press this key the next menu is
activated until the basic state is again displayed)
– From a submenu back to the corresponding
main menu.
Press the INFO key, followed by the correspon-
ding Display key, to
– obtain information on the displayed telephone
numbers/name
– activate additional functions.
Press the Escape key to branch to the basic state
without activating any changes.
The alphanumeric keypad permits you to
enter letters and special characters such as period,
comma, semicolon, etc.
Press the Return key to change the line.
Press the Delete key to delete the entered letters,
digits, etc.
Press the Space key to enter a blank.
Press the Shift key to enter upper case letters.
iii
