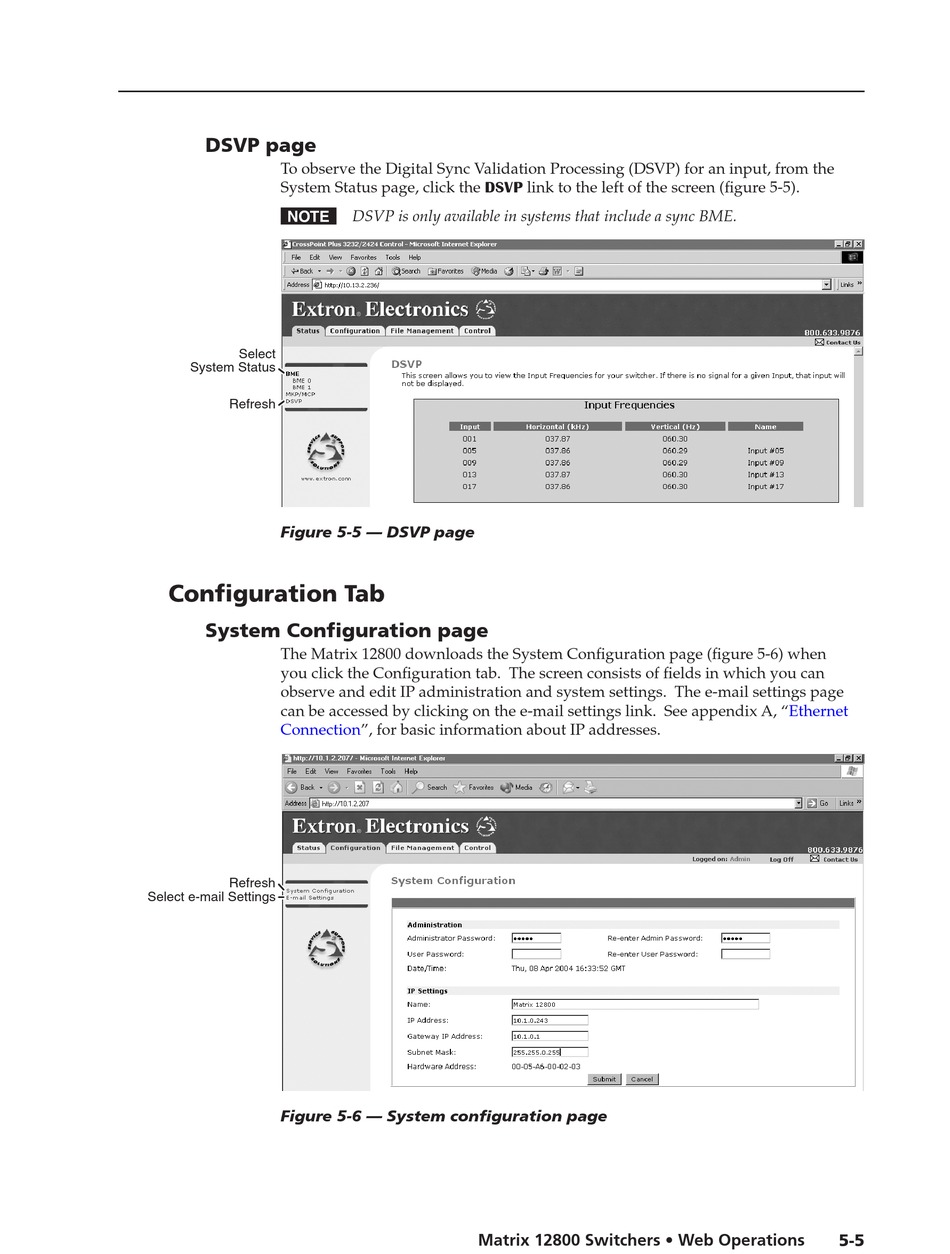

DSVP page

To observe the Digital Sync Validation Processing (DSVP) for an input, from the
System Status page, click the DSVP link to the left of the screen (figure 5-5).
N DSVP is only available in systems that include a sync BME.
Select
System Status
Refresh
Figure 5-5 — DSVP page

Configuration Tab

System Configuration page
The Matrix 12800 downloads the System Configuration page (figure 5-6) when
you click the Configuration tab. The screen consists of fields in which you can
observe and edit IP administration and system settings. The e-mail settings page
can be accessed by clicking on the e-mail settings link. See appendix A,
Connection", for basic information about IP addresses.
Refresh
Select e-mail Settings
Figure 5-6 — System configuration page
Matrix 12800 Switchers • Web Operations
"Ethernet
5-5
