Installation, cont'd

Post-Virtualization operations

Wideband video, low resolution video, and sync connections (wideband,
video, and sync BMEs only)
9
10

Audio connections (audio BMEs only)

Audio BMEs (figure 2-9) are similar in most respects to sync, wideband, and video
BMEs, with the exception of 3.5 mm, 5-pole captive screw connectors for audio
input and output.
11
12

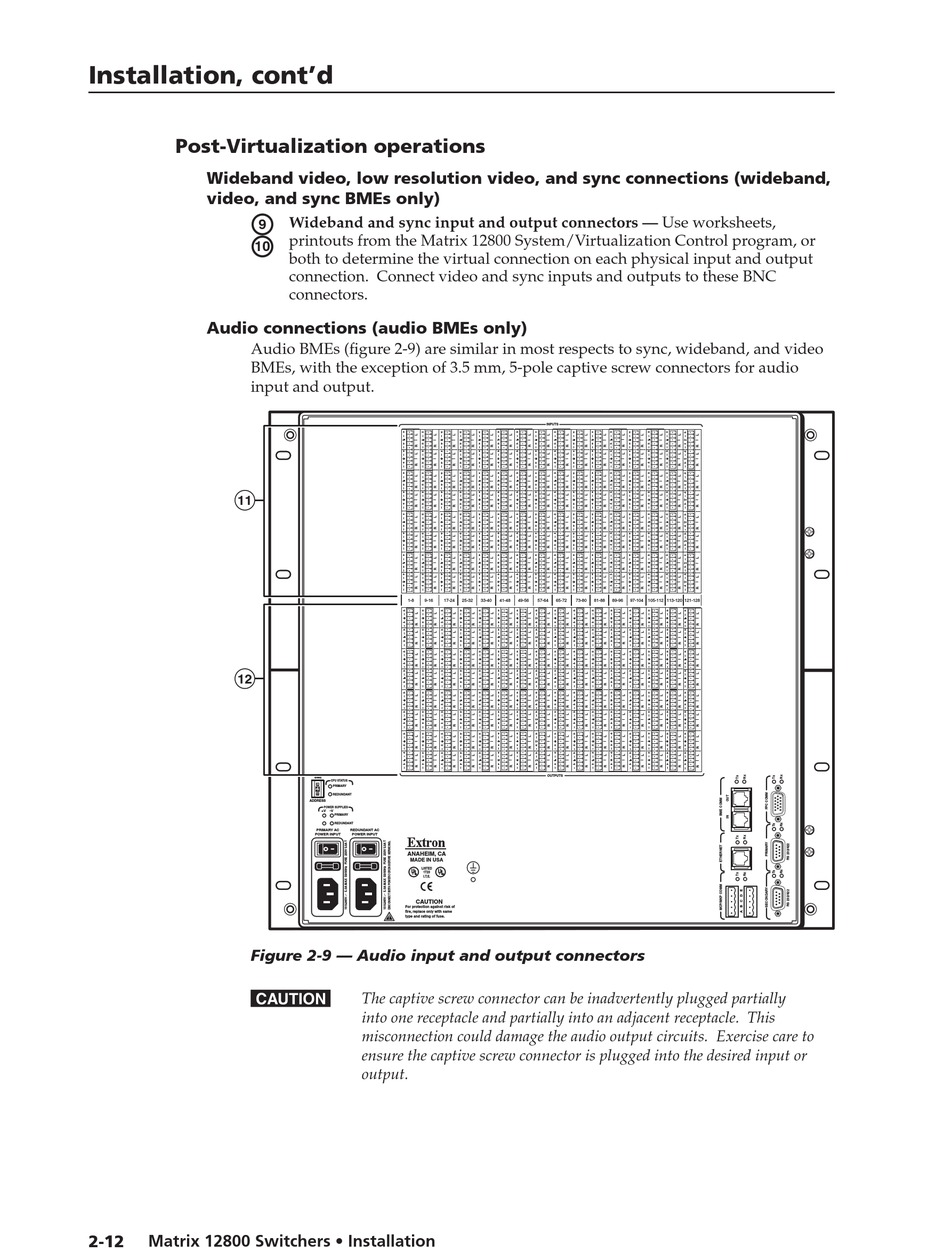

Figure 2-9 — Audio input and output connectors
C
2-12 Matrix 12800 Switchers • Installation
Wideband and sync input and output connectors — Use worksheets,
printouts from the Matrix 12800 System/Virtualization Control program, or
both to determine the virtual connection on each physical input and output
connection. Connect video and sync inputs and outputs to these BNC
connectors.
1-8 9-16 17-24 25-32
BME
CPU STATUS
-
PRIMARY
4
+
REDUNDANT
ADDRESS
POWER SUPPLIES
+V -V
PRIMARY
REDUNDANT
PRIMARY AC REDUNDANT AC
POWER INPUT POWER INPUT
ANAHEIM, CA
MADE IN USA
LISTED
1T23
I.T.E.
CAUTION
For protection against risk of
fire, replace only with same
type and rating of fuse.
The captive screw connector can be inadvertently plugged partially
into one receptacle and partially into an adjacent receptacle. This
misconnection could damage the audio output circuits. Exercise care to
ensure the captive screw connector is plugged into the desired input or
output.
INPUTS
33-40 41-48 49-56 57-64 65-72 73-80 81-88 89-96 97-104 105-112 113-120 121-128
OUTPUTS
