BME Status page

To observe more status details for a specific BME, from the System Status page,

click the BME number, either at the top of the status column or in the brackets to the

left of the screen. The Matrix 12800 downloads the BME Status page (figure 5-3),

which provides additional information for that BME, including the size of the

matrix and the number of and status of individual input cards and output cards.

Refresh BME status

MKP/MCP status

Select DSVP

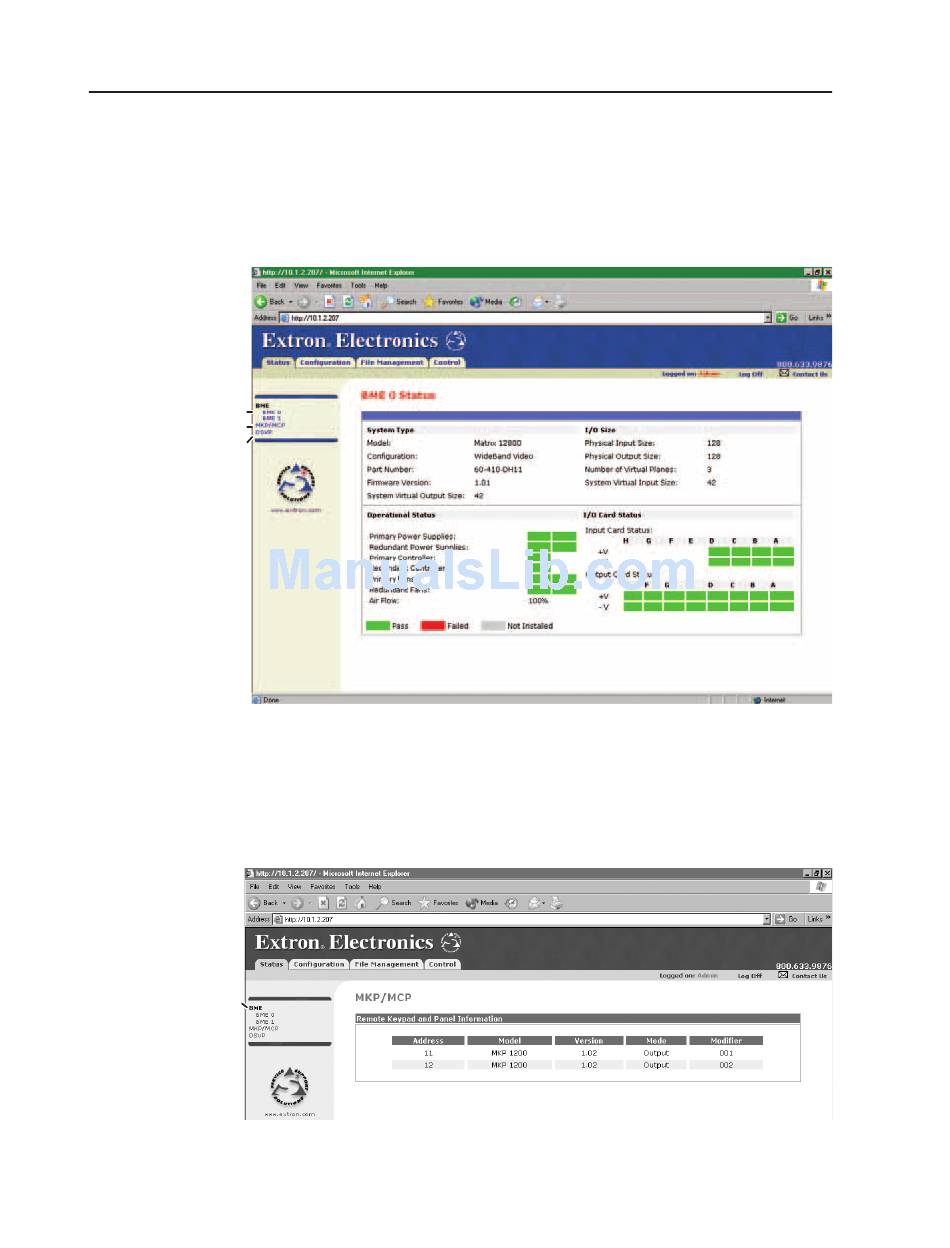

Figure 5-3 — BME Status page

To observe the connection status of remote keypads and remote control panels,

from the System Status page, click the MKP/MCP link to the left of the screen

(figure 5-4).

Select

System Status

Figure 5-4 — MKP/MCP Status page

5-4

Matrix 12800 Switchers • Web Operations
