Balanced and unbalanced audio input connectors — See
l
Audio outputs connectors — See
m
FPC Comm port — (FUTURE CAPABILITY)
n
MCP/MKP Comm ports — See
o
Ethernet port — See
p
External Sync connectors — See

Pre-virtualization operations

BME settings

a
BME address switch — Each BME must be set to a unique address of 0
through 8. Address 9 is invalid. The addresses used in the system must be
sequential with no skipped numbers, other than as required for audio BMEs.
Audio BMEs occupy two BME addresses: the set address and the set address
plus 1 (for example, if the audio BME is set to address 3, it occupies addresses
3 and 4). Set the next BME after the audio BME to the address number plus 2
of the audio BME (for example, if the audio BME is set to address 3, set the
next BME to address 5).
Sync BMEs cannot be set to address 0.
To set the BME address, press the + and - buttons on the BME Address switch
on the rear panel of the switcher (figure 2-2).
1

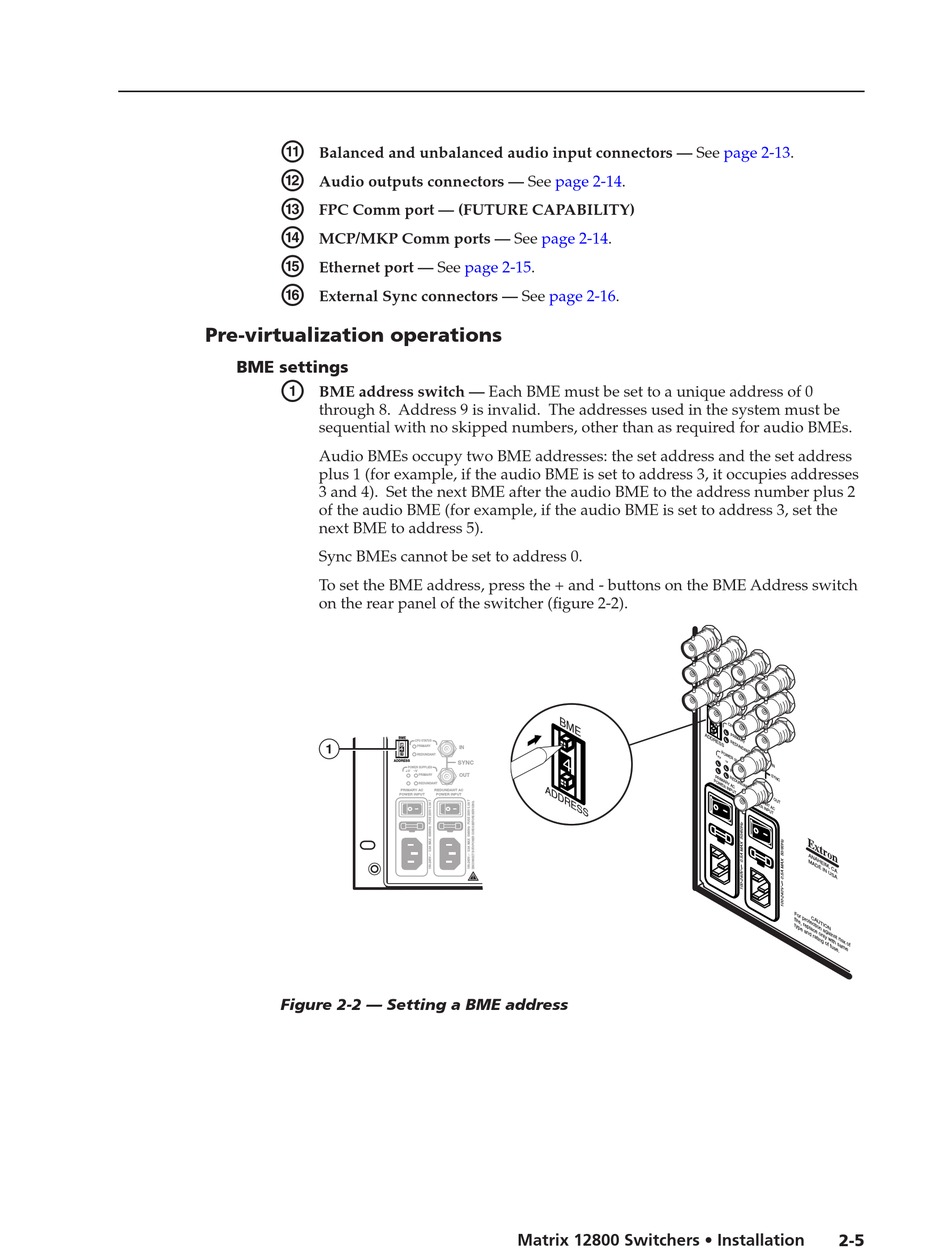

Figure 2-2 — Setting a BME address
page
page
page 2-15.
