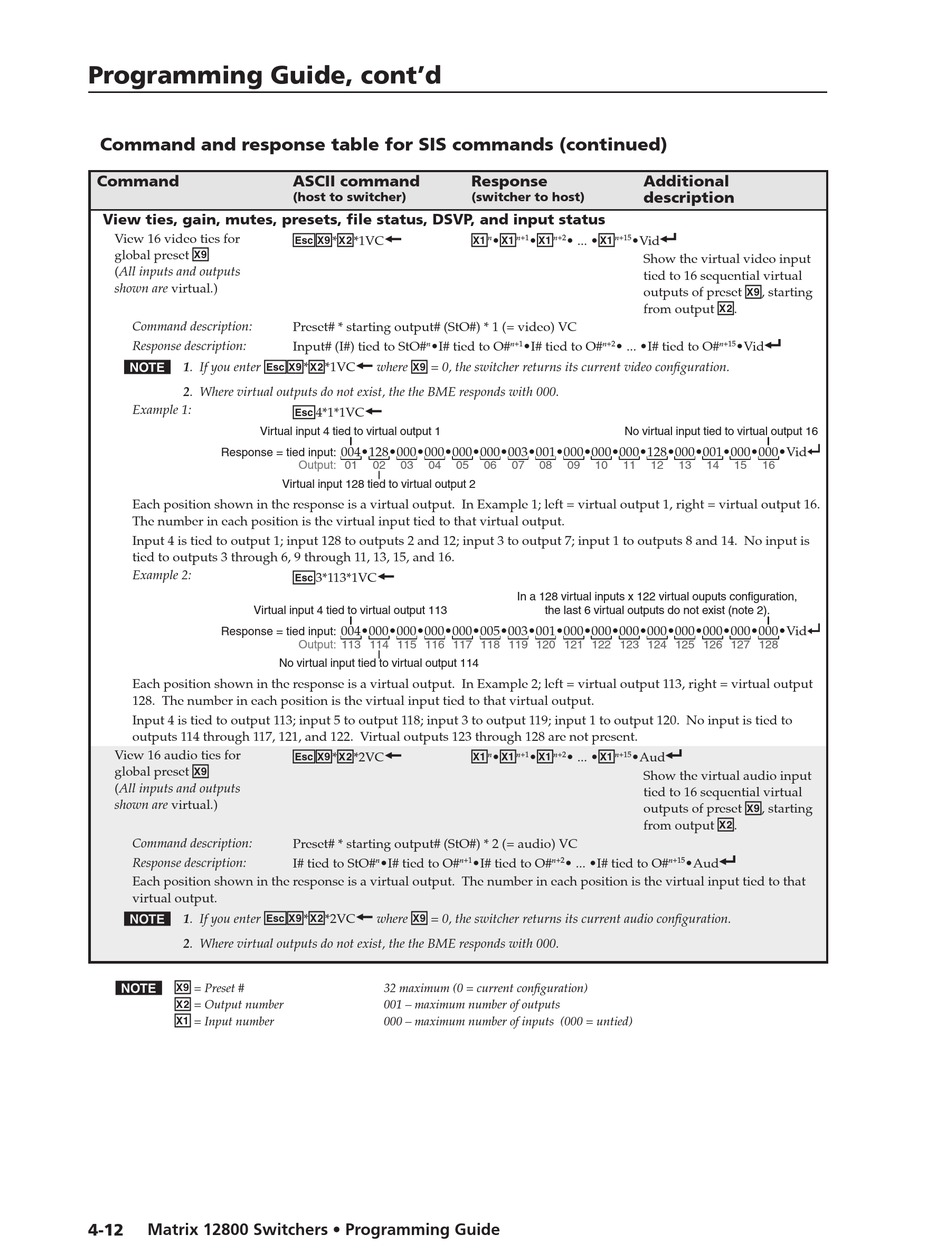

Programming Guide, cont'd
Command and response table for SIS commands (continued)
Command
View ties, gain, mutes, presets, file status, DSVP, and input status
View 16 video ties for
X(
global preset
(All inputs and outputs
shown are virtual.)
Command description:
Response description:
EX(
N 1. If you enter
2. Where virtual outputs do not exist, the the BME responds with 000.
Example 1:
Virtual input 4 tied to virtual output 1
Response = tied input:
Each position shown in the response is a virtual output. In Example 1; left = virtual output 1, right = virtual output 16.
The number in each position is the virtual input tied to that virtual output.
Input 4 is tied to output 1; input 128 to outputs 2 and 12; input 3 to output 7; input 1 to outputs 8 and 14. No input is
tied to outputs 3 through 6, 9 through 11, 13, 15, and 16.
Example 2:
Virtual input 4 tied to virtual output 113
Response = tied input:
Each position shown in the response is a virtual output. In Example 2; left = virtual output 113, right = virtual output
128. The number in each position is the virtual input tied to that virtual output.
Input 4 is tied to output 113; input 5 to output 118; input 3 to output 119; input 1 to output 120. No input is tied to
outputs 114 through 117, 121, and 122. Virtual outputs 123 through 128 are not present.
View 16 audio ties for
X(
global preset
(All inputs and outputs
shown are virtual.)
Command description:
Response description:
Each position shown in the response is a virtual output. The number in each position is the virtual input tied to that
virtual output.
EX(
N 1. If you enter
2. Where virtual outputs do not exist, the the BME responds with 000.
X(
N = Preset #
X@
= Output number
X!
= Input number
4-12 Matrix 12800 Switchers • Programming Guide
ASCII command
(host to switcher)
EX( X@ }
* *1VC
Preset# * starting output# (StO#) * 1 (= video) VC
Input# (I#) tied to StO# •I# tied to O#
n
X@ } X(
* *1VC where = 0, the switcher returns its current video configuration.
E }
4*1*1VC
004•128•000•000•000•000•003•001•000•000•000•128•000•001•000•000•Vid
Output: 01 02 03 04 05
Virtual input 128 tied to virtual output 2
E }
3*113*1VC
004•000•000•000•000•005•003•001•000•000•000•000•000•000•000•000•Vid
Output: 113 114 115 116 117
No virtual input tied to virtual output 114
EX( X@ }
* *2VC
Preset# * starting output# (StO#) * 2 (= audio) VC
I# tied to StO# n •I# tied to O#
X@ } X(
* *2VC where = 0, the switcher returns its current audio configuration.
32 maximum (0 = current configuration)
001 – maximum number of outputs
000 – maximum number of inputs (000 = untied)
Response
(switcher to host)
X! X! X! X!
• • • ... • •Vid
n n+1 n+2 n+15
•I# tied to O# • ... •I# tied to O#
n+1 n+2
No virtual input tied to virtual output 16
06 07 08 09 10 11
In a 128 virtual inputs x 122 virtual ouputs configuration,
the last 6 virtual outputs do not exist (note 2).
118 119 120 121 122 123 124 125 126 127 128
X! X! X! X!
• • • ... • •Aud
n n+1 n+2 n+15
n+1 •I# tied to O# n+2 • ... •I# tied to O#
Additional
description
]
Show the virtual video input
tied to 16 sequential virtual
X(
outputs of preset , starting
X@
from output .
]
•Vid
n+15
12 13 14 15 16
]
Show the virtual audio input
tied to 16 sequential virtual
X(
outputs of preset , starting
X@
from output .
]
n+15 •Aud
