LCD Screens

The content displayed on the LCD screens is organized into both Primary and Secondary Screens. There
are two Primary Screens on the NT10e and three Primary Screens on the NT20e thermostats. Both
Primary and Secondary Screens are defined below and in the following sections.
Primary & Secondary LCD Screens
1. Thermostat Screen (both NT10e and NT20e)
1.1. HVAC Screen
2. Sensor Status Screen (NT20e only)
3. Status & Control Screen (both NT10e and NT20e)
3.1. Thermostat Control
3.2. Thermostat Status
3.3. Alarm Status
3.4. Network Status

Thermostat Screen

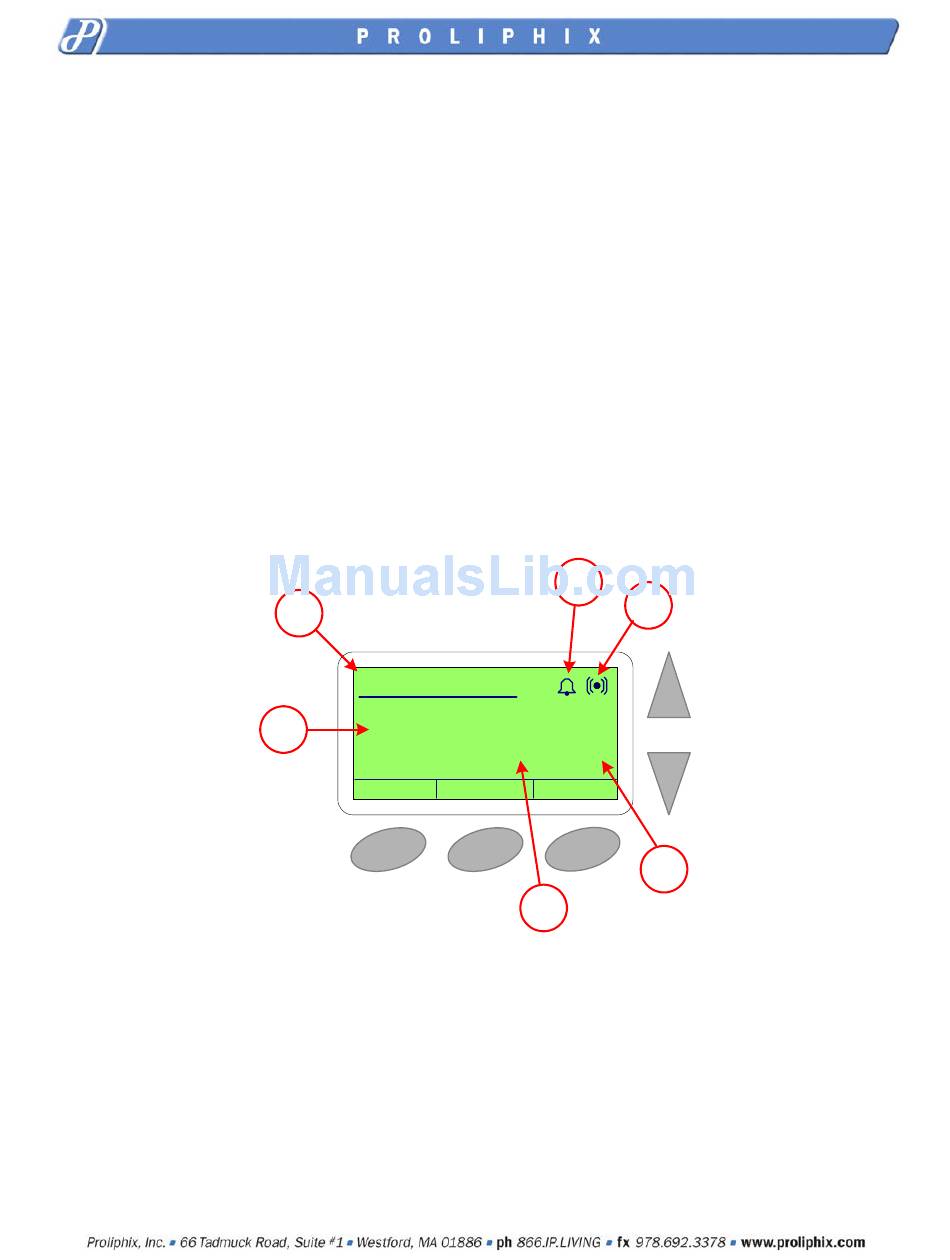

The default LCD view displayed on the thermostat is the Thermostat Screen as shown in Figure 2 below.
This screen is constantly displayed with a minimal ambient backlight. The backlight will intensify after any
button is pressed. The LCD will revert back to Thermostat Screen sixteen seconds after the last button is
pressed.
The thermostat display will revert back to this Primary Screen after 16 seconds of keypad inactivity.
1
Screen 1.0
Kitchen
o
73
4
F
10:45 am
Hold
Figure 2 – Thermostat Screen
2
Cool
Heat
72
68
Cool
Day
HVAC Next
5
