Proliphix NT10e Configuration Manual page 10

Rev 2.0
Field Definitions – Thermostat Screen
1 – Zone Name (network host name)
- Initially this is set to the last six hex digits of the network MAC address (e.g. 00-00-6A). This
can be set by the user on the General Settings Page in the TMI.
2 – Alarm Indication
- When visible, indicates that an alarm condition exists within the thermostat.
Alarm conditions include, Low and High Temperature and Filter Change notifications.
3 – Network Connectivity
- When visible, indicates that the thermostat is connected to an active Ethernet network.
4 – Zone Temperature
- Indicates the current zone temperature in degrees Fahrenheit. If remote sensors are installed,
enabled and configured to average with the local thermostat sensor, this field will indicate the
average temperature of the aggregate sensors. (See Sensor Settings Page in the TMI chapter)
5 – Heat Setpoint Temperature
- Indicates the current heat setpoint temperature as defined by the thermostat schedule. This
will be grayed-out if only Cool is selected in HVAC mode. This will not be visible if the
thermostat is configured as a Cool only thermostat.
6 – Cool Setpoint Temperature
- Indicates the current cool setpoint temperature as defined by the thermostat schedule. This
will be grayed-out if only Heat is selected in HVAC mode. This will not be visible if the
thermostat is configured as a Heat only thermostat.
7
8
Screen 1.0
Kitchen
Heat
o
73
68
F
Cool
10:45 am
Hold HVAC
9

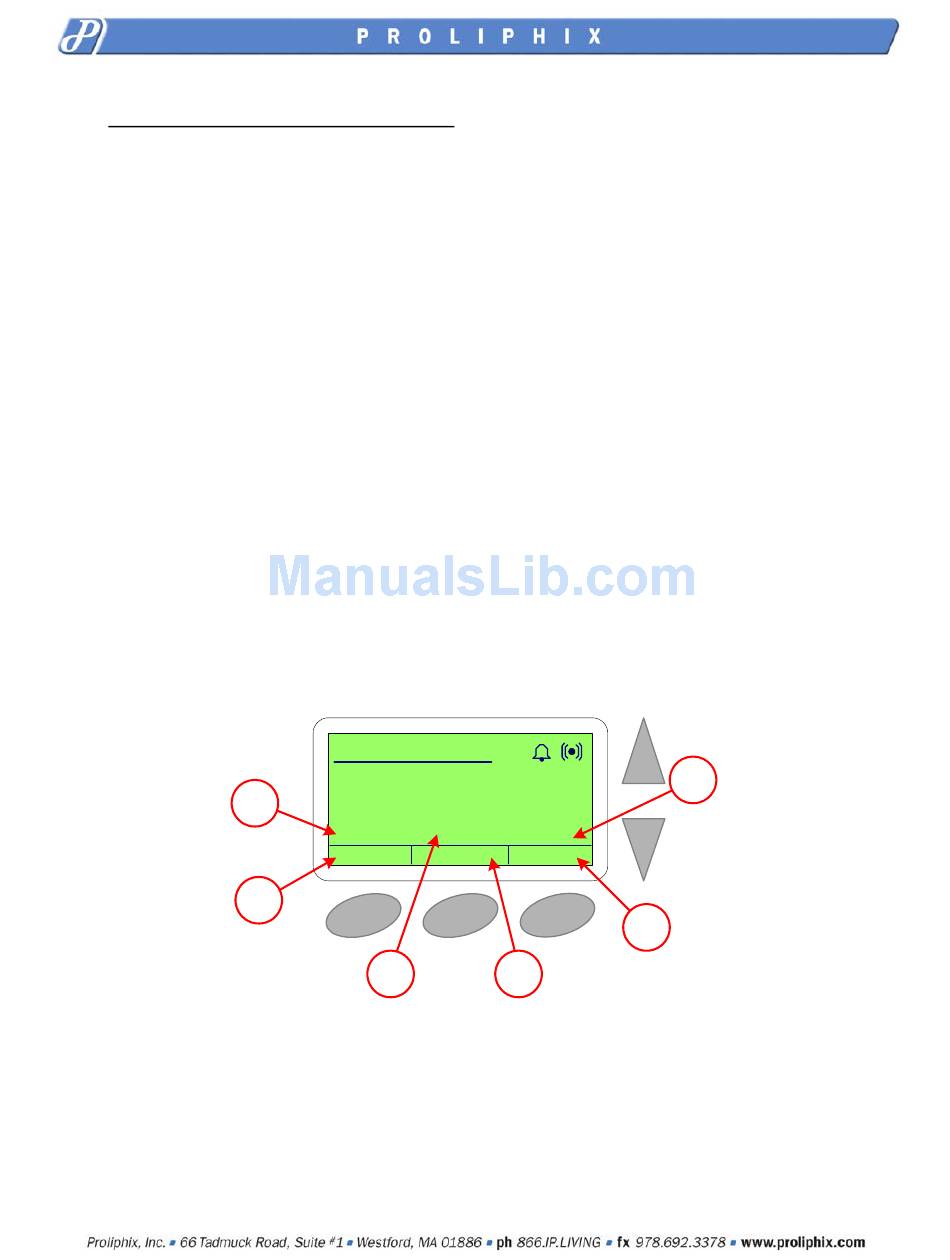

Figure 3 – Thermostat Screen (cont'd)
Cool 12
72
Day
Next
11
10
Page 10 of 54
