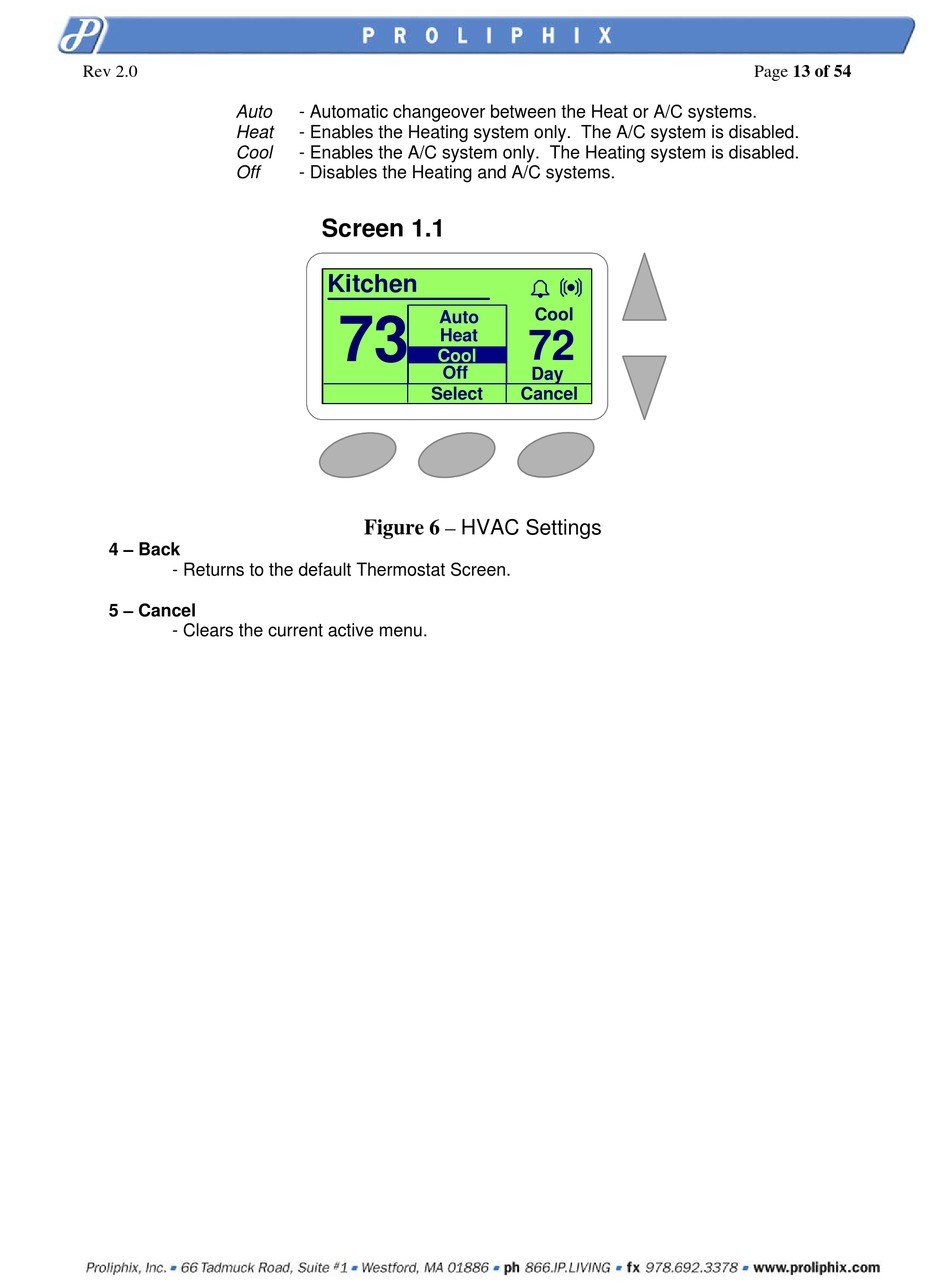

Proliphix NT10e Configuration Manual page 13

Rev 2.0
Auto
Heat
Cool
Off
4 – Back
- Returns to the default Thermostat Screen.
5 – Cancel
- Clears the current active menu.
- Automatic changeover between the Heat or A/C systems.
- Enables the Heating system only. The A/C system is disabled.
- Enables the A/C system only. The Heating system is disabled.
- Disables the Heating and A/C systems.
Screen 1.1
Kitchen
Heat
Auto
o
73
Heat
68
F
Cool
Cool Off
Select
Figure 6 – HVAC Settings
Cool
72
Day
Cancel
Page 13 of 54
