Rev 2.0 Page i of iii TABLE OF CONTENTS INTRODUCTION ............................5 ...............................5 UICK ETUP Real Time Clock ............................5 IP Addressability ...........................5 Remote Management...........................6 ............................6 ESET CTUATION Software Reset............................7 Factory Reset ............................7 ............................7 AILSAFE EATURE THERMOSTAT DEVICE INTERFACE....................8 ..........................8 UTTONS AND CREENS LCD S ..............................9...
Page 3
Reminder Pending ..............................30 Date and Time .............................31 Set Date and Time ..............................31 U.S. Daylight Savings Time ..........................31 ........................32 ETBACK CHEDULE Proliphix Scheduling ...........................32 Day Class Schedules ............................32 Default Weekly Schedule..........................32 Calendar View ..............................32 Home Class Schedule Page ......................34 Period .................................34 Time ...................................34 Heat (Temp)................................34...
Page 4
Rev 2.0 Page iii of iii Sensor Averaging ...............................48 Sensor Correction ...............................48 ..........................49 EMOTE CCESS Remote Discovery..........................49 State..................................49 Site Name ................................49 Address................................50 Outgoing Port ..............................50 Interval................................50 Last Attempt ...............................50 Last Success ...............................50 Customer Information.........................51 Customer ID ...............................51 ......................52 EMOTE ISCOVERY TATUS WARRANTY INFORMATION.........................53...

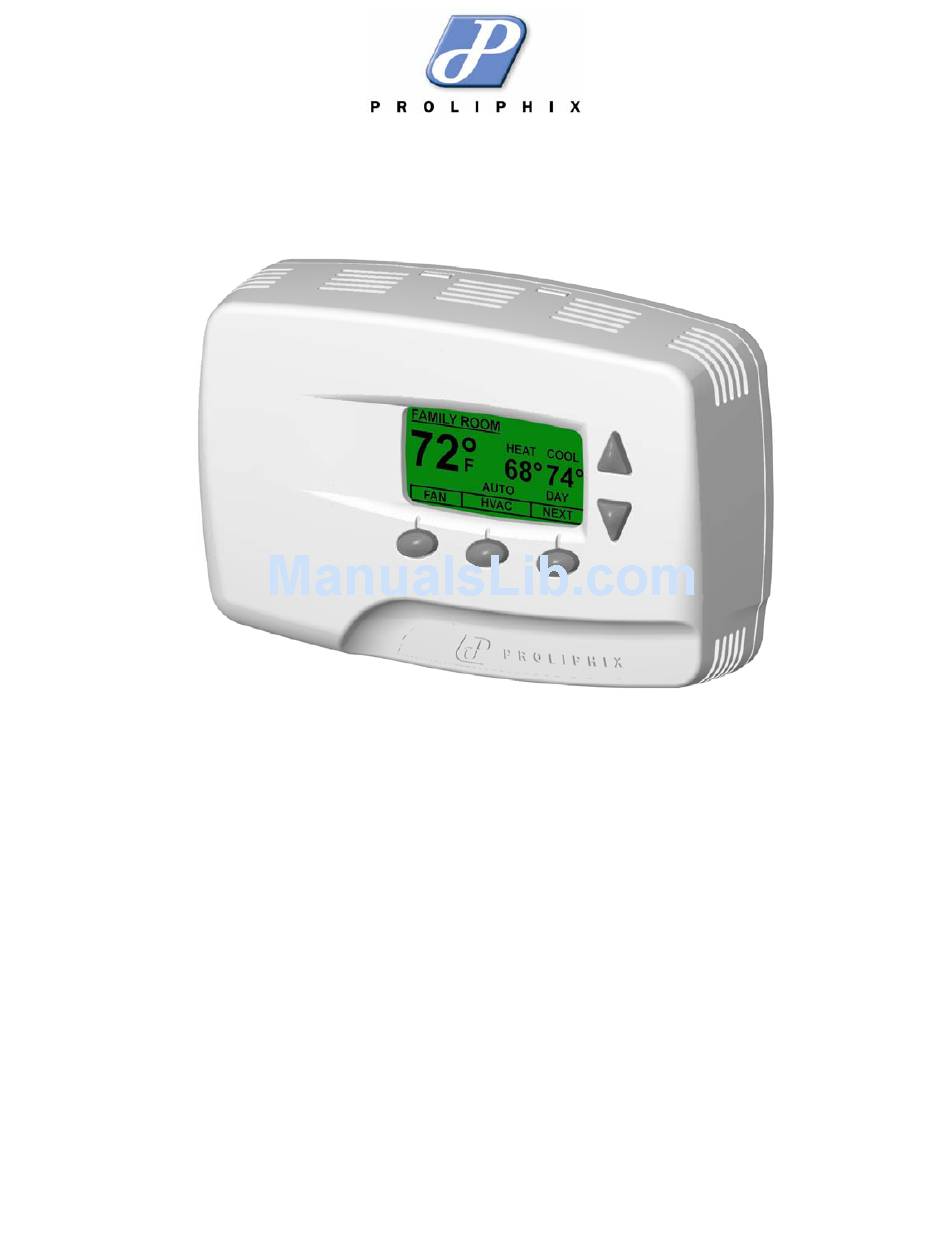

You have purchased the most advanced and technically sophisticated thermostat available today. The NT10e and NT20e are powered by Proliphix Network Power and are identical in features with one exception; the NT20e supports two remote thermal sensors and the NT10e does not support external thermal sensors.
4. Press the “Submit” button. Remote Management The Basic Series of Proliphix Network Thermostats can be managed with a web browser on a local area network (LAN) or remotely though the Internet after proper authentication at the Proliphix web site (www.proliphix.com).
1. Remove the thermostat cover from the base which attached to the wall. (See NT10e and NT20e Installation Guide) 2. Attach top of cover to top of base as a hinge. (See NT10e and NT20e Installation Guide) 3. Depress middle button of thermostat while closing the cover into the base.
Page 8 of 54 Thermostat Device Interface The Proliphix thermostat features a convenient method of manually modifying certain parameters directly at the thermostat. The thermostat’s front panel includes up and down arrows and several buttons located at the bottom of the LCD to select the desired configuration settings. The following sections detail the operation of the thermostat from the thermostat’s buttons and LCD screens.
The content displayed on the LCD screens is organized into both Primary and Secondary Screens. There are two Primary Screens on the NT10e and three Primary Screens on the NT20e thermostats. Both Primary and Secondary Screens are defined below and in the following sections.
Page 10
Rev 2.0 Page 10 of 54 Field Definitions – Thermostat Screen 1 – Zone Name (network host name) - Initially this is set to the last six hex digits of the network MAC address (e.g. 00-00-6A). This can be set by the user on the General Settings Page in the TMI. 2 –...
Page 11
Rev 2.0 Page 11 of 54 Field Definitions – Thermostat Screen (cont’d) 7 – Time - Time of day displayed in Daylight Savings Time if chosen. 8 – Temperature Hold - Holds current temperature indefinitely. The Hold button toggles between Hold and Return. Pressing the Return button disables the hold feature and returns to the temperature settings which are set in the schedule.
Rev 2.0 Page 12 of 54 HVAC Screen The HVAC screen is the first Secondary Screen and is a sub-screen of the default Thermostat Screen. Most of the content on the HVAC screen is identical to the Thermostat Screen with the exception of the HVAC and Fan mode controls.
Page 13
Rev 2.0 Page 13 of 54 Auto - Automatic changeover between the Heat or A/C systems. Heat - Enables the Heating system only. The A/C system is disabled. Cool - Enables the A/C system only. The Heating system is disabled. - Disables the Heating and A/C systems.
Page 14
Rev 2.0 Page 14 of 54 The following image (Figure 7) displays an example of how the user could make HVAC setting changes at the thermostat. Figure 7 – HVAC Settings Change...
Sensor Status Screen The Second Primary Screen is viewable in the NT20e model only if remote sensors are installed and enabled. Because the NT10e does not support external thermal sensors, this page is NOT shown on the NT10e Network Thermostat.
Status & Control Screen The third Primary Screen is the Status & Control Screen. (This is the second Primary Screen on the NT10e or NT20e if remote sensors are disabled.) Each status field is highlighted as the user navigates up or down by pressing the Up or Down arrows.
Rev 2.0 Page 17 of 54 Thermostat Control Screen The Thermostat Control screen is a Secondary Screen which is a sub-screen of the Status & Control Screen. Selection of the HVAC system type can be made on this page. Status of the selected type along with the default settings is also shown prominently.
Page 18
Rev 2.0 Page 18 of 54 Screen 3.1 Thermostat Control HVAC Type: Fuel Burner Heat Ctrl: Enable Cool Ctrl: Enable Fuel Burner Heat Pump Select Cancel Figure 10b – Thermostat Control Screen Please refer to the Advanced Settings Page in the TMI Section for further explanation of the following parameters;...
Rev 2.0 Page 19 of 54 Thermostat Status Screen The Thermostat Status screen is a Secondary Screen which is a sub-screen of the Status & Control Screen. The content of the Thermostat Status Screen includes the current date, the product model number, the software version, and the hardware revision.
Rev 2.0 Page 20 of 54 Low Temp Limit Temperature below which an alarm indication is set by the thermostat. OK – Temperature of thermostat has not dropped below that set as Low Temperature Limit Not OK - Temperature of thermostat has dropped below that set as Low Temperature Limit High Temp Limit Temperature above which an alarm indication is set by the thermostat.
Page 21
Rev 2.0 Page 21 of 54 A typical cycle to view all Primary Screens for the NT20e model is shown in below Figure 14. Screen 1.0 Kitchen Cool Heat Screen 2.0 10:45 am Cool Hold HVAC Next Sensors Zone Average 73.0 Cool Local...
Web Port identifier. The Host Name of the thermostat is located in the upper left corner of the primary LCD screen. The default host name of the thermostat will always be the last six digits of the Proliphix assigned device MAC address in the form “AB-CD-EF”. The IP Address and Web Port identifier can be obtained by selecting the Network Status LCD sub screen under the Status &...
As an example; http://192.168.111.100:8081 Where 192.168.111.100 is a unique IP address initially assigned via DHCP and 8081 is the default (Proliphix assigned) Web HTTP port number. After these two fields are entered into the browser and the first TMI page is displayed, it is recommended that these parameters be fixed “statically”...
Rev 2.0 Page 24 of 54 Status & Control Page The Status & Control Page is the default page viewed by the user as the thermostat is initially accessed. The information conveyed on this page represents a snapshot of most of the pertinent information which is accessible on the thermostat.
F to 99 Local (Temperature) Current temperature of local sensor. This field is grayed-out if the local thermostat sensor is not included in temperature averaging. This field is not visible on the NT10e thermostat. Status: F to 95 RS #1 Current temperature of Remote Sensor #1 if this remote thermal sensor is installed and enabled.
Rev 2.0 Page 26 of 54 Status and Control: F to 95 Hold Mode Holds the current temperature of both the Heat and Cool Settings at the current settings indefinitely. Status and Control: Off (default) – Hold mode is disabled. Hold –...
Rev 2.0 Page 27 of 54 Fan Mode Displays and controls the current state setting for the HVAC fan. Status and Control: Auto – Heating or Cooling system controls the operation of the fan On – User forces the fan to the on state independent of the operation of the HVAC system. Alarm Status Low Temperature Displays the current status of the low temperature alarm condition.
Rev 2.0 Page 28 of 54 General Settings Page The General Settings Page contains parameters and settings which personalize the thermostat for the user. A Submit must be issued by the user to apply all changes made in the Control column. The status of most functions will be updated upon clicking the Refresh button.
Temperature falls below this value, an alarm condition is set and the status is displayed on the Status & Control Page. In addition, this alarm will be sent to the Proliphix web site to trigger an email notification if this function is enabled. (See Remote Access Page). This is a major (red) alarm condition.
Status & Control Page. In addition, this alarm will be sent to the Proliphix website to trigger an e-mail notification if this feature is enabled. (See Remote Access Page). Specific action must be taken to clear this alarm condition. This is a minor (yellow) alarm condition.
Rev 2.0 Page 31 of 54 Figure 16b – General Settings Page (Alarms and Alerts Pending) Date and Time Set Date and Time This field is automatically filled with the date and time of the web browser. Unaltered, this date and time can be assigned to the thermostat by first checking the “Set Thermostat Time”...
Page 32 of 54 Setback Schedule Page The Proliphix thermostat features a set of very robust scheduling options. Through the Proliphix Thermostat Management Interface (TMI) you may create a heating and cooling schedule to meet your lifestyle and specific needs.
Rev 2.0 Page 34 of 54 Home Class Schedule Page The Home Class Schedule allows the user to assign both Heat and Cool temperature settings in each of the four schedule Periods for the Home Day Class. A Submit must be issued by the user to apply all changes made in the Home Day Class fields. Figure 18 –...
Rev 2.0 Page 35 of 54 Out Class Setback Page The Out Class Schedule allows the user to assign both Heat and Cool temperature settings in each of the four schedule Periods for the Out Day Class. A Submit must be issued by the user to apply all changes made in the Out Day Class fields. Figure 19 –...
Rev 2.0 Page 36 of 54 Away Class Setback Page The Away Class Schedule allows the user to assign both Heat and Cool temperature settings in each of the four schedule Periods of the Away day. A Submit must be issued by the user to apply all changes made in the Away Day Class fields. Figure 20 –...
Rev 2.0 Page 37 of 54 Default Weekly Schedule The Default Weekly Schedule allows the user to assign one of three Day Classes to each of the seven days of the week. A Submit must be issued by the user to apply all changes made in the Default Weekly Schedule fields. Figure 21 –...
Rev 2.0 Page 38 of 54 Special Days Table The Special Days feature allows you to select any day of the current or future month and assign a different day class than what is called for by the Default Weekly Schedule. For example, if your Default Weekly Schedule calls for every Monday through Friday to be a “Out”...
Rev 2.0 Page 39 of 54 Special Days Examples Typical examples of these Special Days are included below in the following tables (Figures 21b and 21c). In Figure 22b we have chosen to change the Day Class on December 24 2005 from an Out Day Class (i.e.
Page 40
Rev 2.0 Page 40 of 54 In Figure 22c we have chosen to add a week long vacation to the thermostat schedule from the 26 December 2005 through January 1 2006. We do this by entering the Special Days Table by clicking on “Edit Special Days”.
Rev 2.0 Page 42 of 54 Network Settings Page The Network Settings Page allows the user the ability to configure the approriate network parameters specific to the user’s local network. A Submit must be issued by the user to apply all changes made in the Control column. The status of most functions will be updated upon clicking the Refresh button.
Web Server HTTP Port This field defines the IP port number required by the Proliphix Web Server for Remote Management capability. The thermostat communicates with the Proliphix Web Server to identify itself as an eligible remotely manageable thermostat. The Proliphix Web Server returns the communication by responding to the thermostat through this HTTP Port in the firewall router.
Rev 2.0 Page 44 of 54 Advanced Settings Page The Advanced Settings Page allows an installer customize the thermostat for the user accoding to the user’s HVAC requirements. A Submit must be issued by the user to apply all changes made in the Control column. The status of most functions will be updated upon clicking the Refresh button.
Rev 2.0 Page 45 of 54 If HVAC Type is Fuel Burner: Heat Control Specifies the HVAC control of this thermostat. This parameter describes the thermostat capability to control a single stage heating system. The thermostat can also be disabled from controlling a heating system and instead operate as a cool-only thermostat.
Performs a software reset on the thermostat. All current settings will be maintained after the execution of this reset. This reset is performed to return the thermostat to a know state after abnormal behavior. A Proliphix support representative should be consulted before changing this setting.
Sensor Settings Page The Sensor Settings Page allows the user to customize the thermostat for specific thermal sensing requirements. Because the NT10e does not support external thermal sensors, this page is NOT available on the NT10e Network Thermostat. A Submit must be issued by the user to apply all changes made in the Control column. The status of most functions will be updated upon clicking the Refresh button.
The choice of either thermister or analog must be made so that the appropriate temperature translation table will be used to calculate the temperature value. (Consult the Proliphix web site for a list of sensors available in either type.) Status and Control: Thermister (default) –...
Figure 27 – Remote Access Page Remote Discovery The Proliphix Network Thermostats can be accessed remotely anywhere in the world with only the use of a web browser. Proliphix thermostats automatically intercommunicate with the Proliphix Web Site to provide this capability.
207.58.145.109 – Four field standard dot notation for IP address designation. Outgoing Port This is the outgoing IP port number which is used to communicate to the Proliphix Web Server. This port number should only be changed under the direction of Proliphix, Inc.
This field should be completed with the unique customer identifier assigned by Proliphix after proper registration of the thermostat has been made by the user. Registration is required prior to obtaining this ID to ensure that only authorized Proliphix customers may participate in remotely managing their thermostats. (See Proliphix Remote Management...
Access Page, the following status page appears. This page displays a brief synopsis of the state of the thermostat as it has initiated the discovery process with the Proliphix web server on the Proliphix Web Site. Pressing “Back to Remote Access Settings”, returns the user to the Remote Access Settings Page where a completion status of the discovery process can be observed in the “Last Attempt”...
(including property and economic) of any kind arising from the sale and use of this equipment. Proliphix is not liable for any claim made by a third party or made by a purchaser for a third party.
Page 54
Rev 2.0 Page 54 of 54 Customer Assistance When contacting Proliphix for technical assistance, please have the following information available: Thermostat model and serial number. Type of heating/cooling system (example: gas, oil, or electric; warm air, hot water, heat pump,...
