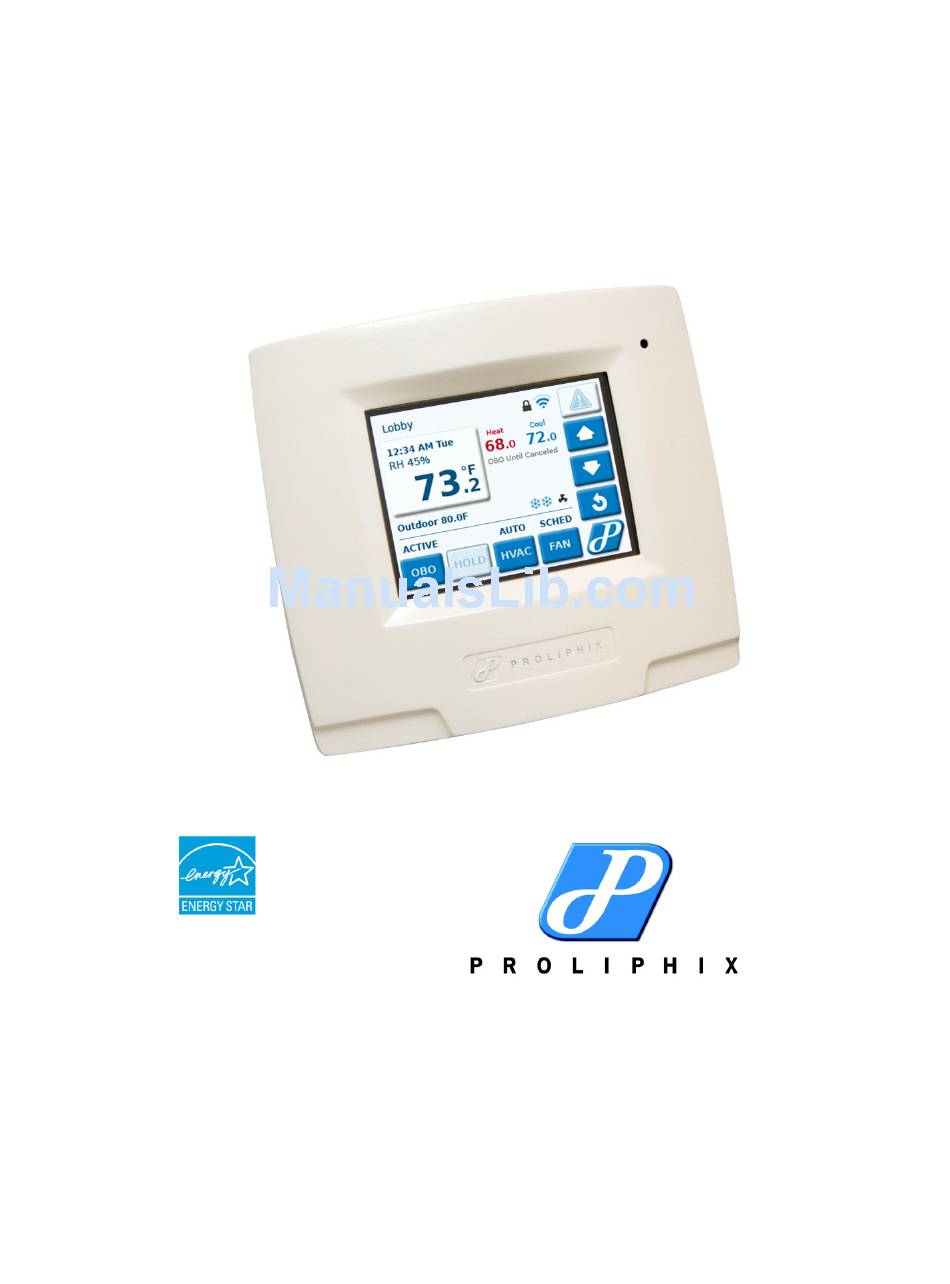

- Page 1 Internet Managed Thermostat (IMT) Configuration Guide (IMT550c and IMT550w) Release 1.0 Part No. 600-03001-550, Rev. 1 July 2010...
- Page 2 The following are trademarks of Proliphix, Inc.: All other trademarks are the property of their respective owners. This document contains information that is the property of Proliphix, Inc. This document may not be copied, reproduced, reduced to any electronic medium or machine readable form, or otherwise duplicated, and the information herein may not be used, disseminated or otherwise disclosed, except with the prior written consent of Proliphix, Inc.
- Page 3 PROLIPHIX SOFTWARE, you agree to be bound by the terms of this PROLIPHIX LICENSE. If you do not agree to the terms of this PROLIPHIX LICENSE, do not download or run the PROLIPHIX SOFTWARE.
- Page 4 This LICENSE may only be modified in writing signed by an authorized officer of Proliphix. Customer agrees that it will not ship, transfer or export the SOFTWARE into any country, or use the SOFTWARE in any manner, prohibited by the United States Bureau of Export Administration or any export laws, restrictions or regulations.
- Page 5 3 years for the IMT series thermostats from the date of purchase. Proliphix shall not be liable to honor the terms of this warranty if the product has been used in any other application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, acts of God, modification, or improper installation procedures.
- Page 6 The RMA number must be clearly marked on the outside of the package. Products received without an RMA number or without shipping prepaid will be subject to refusal by Proliphix. Proliphix reserves the right to charge a 15% restocking fee plus shipping costs on any products returned without an RMA.
-
Page 7: Table Of Contents
Contents Preface Audience Conventions Technical Publications xiii Technical Support xiii Proliphix Welcomes Your Comments Chapter 1 Overview DHCP Assigned IP Addresses Connecting the Thermostat to the Local Network Remote Management Determining the IMT550 IP Address Accessing the Web Interface Logging In to the Thermostat... - Page 8 Beta Draft Confidential Contents viii Internet Management Thermostat Configuration Guide, Release 1.0 Part No. 600-03001-550, Rev. 1...
- Page 9 Beta Draft Confidential Figures List of Figures Figure 1-1 Administrator Authentication Window Figure 2-1 Control - HVAC Page Figure 2-2 Control - AUX Relays Page - Relay State Inactive Figure 2-3 Control - AUX Relays Page - Relay Manually Active Figure 2-4 Control - AUX Relays Page - Relay Manually Inactive Figure 2-5...
- Page 10 Beta Draft Confidential Contents List of Tables Table 1-1 IMT550 Features Table 2-1 Control - HVAC Field Descriptions Table 2-2 Control - AUX Relays Field Descriptions Table 2-3 Control - Usage Statistics Field Descriptions Table 2-4 Schedules-Daily Profile Definitions Field Descriptions 2-12 Table 2-5 Alarms - Zone Field Descriptions...
-
Page 11: Preface
Beta Draft Confidential Preface The Internet Managed Thermostat Configuration Guide describes how to control and configure your IMT550 thermostat using a standard web browser such as Firefox or Internet Explorer. Audience This guide is intended for managers and/or facilities managers or those responsible for managing multiple devices remotely in small or medium size buildings, multiple buildings, or corporate environments. -
Page 12: Conventions
Beta Draft Confidential Preface Conventions This guide uses the following conventions, when applicable: Description Convention and Example Commands or keywords, file or path names Boldface font Variable parameters for which you supply values <courier italics> Options and arguments for which you supply values Information that the user must enter Courier Bold font... -
Page 13: Technical Publications
Reader software from the Adobe web site, click http://www.adobe.com/products/acrobat/readstep2.html. Technical Support Proliphix Technical Support provides technical support between the hours of 9:00 AM and 5:00 PM Eastern Time, Monday through Friday. Extended 7/24 contracts are available. When contacting Proliphix Technical Support, please have the following information... -
Page 14: Proliphix Welcomes Your Comments
Beta Draft Confidential Preface Proliphix Welcomes Your Comments You can mail, e-mail, or fax your comments. Please include the document part number in the subject line of your e-mail or fax message. E-mail: techpubs@Proliphix.com Fax: Attention Technical Publications 978-692-3378 Proliphix, Inc. -
Page 15: Chapter 1 Overview
HVAC DHCP Assigned IP Addresses The IMT550c and IMT550w thermostat ship directly from the factory enabled to perform as a Dynamic Host Configuration Protocol (DHCP) client. DHCP is an established standard used to assign IP addresses automatically after each network device is inserted into the network or when the device experiences a power cycle. -
Page 16: Connecting The Thermostat To The Local Network
For the IMT550w, use the lcd interface and configure the wireless settings to match your local wireless network. Remote Management You can manage the IMT550c and IMT550w thermostats using a web browser on a local area network (LAN) or remotely though the Internet after proper authentication at the Proliphix Web Site (www.proliphix.com). -
Page 17: Accessing The Web Interface
Beta Draft Confidential Accessing the Web Interface Press Network. Press IP Address. The IP Address screen displays the Address Method and URL (IP Address). Accessing the Web Interface To access the initial Web page of the thermostat, enter the unique IP address initially assigned via DHCP in your browser window. -
Page 18: Logging In To The Thermostat
Beta Draft Confidential CHAPTER 1: Overview Logging In to the Thermostat The IMT550 Series thermostats require password authentication prior to accessing the Web pages that enable you to control or manage the thermostats. The username and password is as follows: Username: admin Password: admin (default) You can change each of these passwords within each account after the initial... - Page 19 Beta Draft Confidential Logging In to the Thermostat Click OK. The default Control - HVAC page appears. See Figure 2-1 on page 2-2. In each Web page, you must click Submit to apply all changes made in the Control column. Click Refresh to update the status. Note Continue with the Control Page (page...
- Page 20 Beta Draft Confidential CHAPTER 1: Overview Internet Management Thermostat Configuration Guide, Release 1.0 Part No. 600-03001-550, Rev. 1...
-
Page 21: Chapter 2 Configuring The Thermostat Using The Web Interface
Beta Draft Confidential Chapter Configuring the Thermostat Using the Web Interface This chapter describes how to configure and monitor the thermostat through the web browser using the IMT550 Web interface. Internet Managed Thermostat Configuration Guide, Release 1.0 Part No. 600-03001-550, Rev. 1... -
Page 22: Control Page
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Control Page The Control page displays tabs for the HVAC, AUX Relays, and Usage Statistics pages. HVAC The Control - HVAC page displays the HVAC zone status, schedule, and settings, for example. -
Page 23: Table 2-1 Control - Hvac Field Descriptions
Beta Draft Confidential Control Page Table 2-1 to configure the Control - HVAC fields. Table 2-1 Control - HVAC Field Descriptions Field Description Temperature Zone Temperature Displays the current temperature of the zone if temperature averaging is disabled. Average temperature of any combination of Local, Remote Sensor #1 (RS #1), Remote Sensor #2 (RS #2), or Remote Sensor #3 (RS# 3) if temperature averaging is enabled. - Page 24 Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Table 2-1 Control - HVAC Field Descriptions (Continued) Field Description Fan Filter Change Displays a reminder that the time interval between HVAC filter changes has expired. The air filter(s) should be cleaned or replaced. You should change the filter and then reset this timer.
-
Page 25: Figure
Beta Draft Confidential Control Page Table 2-1 Control - HVAC Field Descriptions (Continued) Field Description HVAC Delay State Displays the HVAC delay state. Delay can be in effect if the interstage delay is set or if the compressor has been turned off within the last n minutes, where n is the set time from the Compressor Delay on the Advanced/HVAC page. -
Page 26: Aux Relays
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface AUX Relays The Control - AUX Relays page displays the AUX Relay 1 and AUX Relay 2 state information. Figure 2-2 Control - AUX Relays Page - Relay State Inactive Internet Managed Thermostat Configuration Guide, Release 1.0 Part No. -
Page 27: Figure 2-3 Control - Aux Relays Page - Relay Manually Active
Beta Draft Confidential Control Page Figure 2-3 Control - AUX Relays Page - Relay Manually Active Figure 2-4 Control - AUX Relays Page - Relay Manually Inactive Figure 2-5 Control - AUX Relays Page - Externally Triggered Internet Managed Thermostat Configuration Guide, Release 1.0 Part No. -
Page 28: Figure 2-6 Control - Aux Relays Page - Scheduled
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Figure 2-6 Control - AUX Relays Page - Scheduled Table 2-2 to configure the Control - AUX Relays fields. Table 2-2 Control - AUX Relays Field Descriptions Field Description AUX Relay 1 and 2 Current Relay State... -
Page 29: Usage Statistics
Beta Draft Confidential Control Page Field Description Closed - Normally closed output. Output Polarity Open - Normally open output. Include Relay in Displays when OBO is activated if the associated relays using this function are to be activated as well. Disabled Enabled Usage Statistics... - Page 30 Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Description Field Cooling Displays the Cool 1 and Cool 2 relay minute activity counter, which is the number of days, hours, and minutes since the Last counter reset box was checked.
-
Page 31: Schedules Page
Beta Draft Confidential Schedules Page Schedules Page The Schedules page displays tabs for the HVAC, AUX Relay 1, and AUX Relay 2 pages. HVAC The Schedules - HVAC settings page displays the schedule information. Schedule Settings The Schedule Settings page displays the default daily Profiles and weekly schedule. Figure 2-8 Schedules - HVAC - Schedule Settings Page Daily Profile Definitions The thermostat scheduling feature is organized in a hierarchy. -
Page 32: Table 2-4 Schedules-Daily Profile Definitions Field Descriptions
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Morning (for example, pre-business hours) Day (for example, business hours) Evening (for example, after hours) Night (for example, unoccupied hours) Figure 2-8 on page 2-11 displays the Profile table. The Web page displays the Event period and Start Time within each row of the table. -
Page 33: Calendar
Beta Draft Confidential Schedules Page Default Weekly Schedule Figure 2-8 on page 2-11, the Default Weekly Schedule table provides a template that you can use to apply the Profiles to each day of the week. The Web page applies this weekly template to every week in each month that is visible in the Calendar View at the bottom of the Calendar (page 2-13) page. -
Page 34: Special Days
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Special Days Special Days entries are organized as rows in the Special Days table. The Web page supports 30 Special Days table entries, each comprised of a start date entered in the Month, Day, and Year fields. -
Page 35: Figure 2-12 Edit Special Day Schedule
Beta Draft Confidential Schedules Page Enter the appropriate day(s) duration. Select the appropriate Daily Profile to Use. Click Submit. Modifying Special Days From the Special Days page, click the pencil icon on the appropriate line to display the Edit Special Day Schedule page. Figure 2-12 Edit Special Day Schedule Edit the fields as necessary. -
Page 36: Figure 2-13 Special Days - Example 1A
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Special Days Examples This section describes some examples of adding Special Days to the thermostat. Example 1 Figure 2-13 shows an example of changing the July 5, 2010 from a Profile 1 to a holiday profile. -
Page 37: Figure 2-15 Special Days - Example 1C
Beta Draft Confidential Schedules Page Figure 2-15 Special Days - Example 1C Special Day (1) Example 2 Figure 2-16 shows an example of adding additional Special Days to the thermostat schedule of a week-long period from July 12, 2010 through July 16, 2010. Figure 2-16 Special Days - Example 2A From the Special Days... -
Page 38: Figure 2-17 Special Days - Example 2B
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Enter a Name and Schedule information for the special day(s). Select the appropriate Daily Profile to Use. Click Submit. The Special Day entry (for 5 days total) displays on the Special Days Calendar pages. -
Page 39: Aux Relay 1 And Aux Relay 2
Beta Draft Confidential Schedules Page AUX Relay 1 and AUX Relay 2 Use to configure AUX Relay 1 and AUX Relay 2. See HVAC (page 2-11). Figure 2-19 Schedules - Aux Relay Page Internet Managed Thermostat Configuration Guide, Release 1.0 2-19 Part No. -
Page 40: Alarms Page
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Alarms Page The Alarms page displays tabs for the Zone and Wired Sensors pages. Zone The Alarms - Zone page displays the zone temperature, humidity, and filter change reminder. -
Page 41: Table 2-5 Alarms - Zone Field Descriptions
HVAC (page 2-2) page. In addition, this alarm is sent to the Proliphix web site to trigger an e-mail notification, if the function is enabled, and may also be sent as e-mail from this thermostat if configured on Network - Notification Settings page. -
Page 42: Figure
HVAC (page 2-2) page. In addition, this alarm is sent to the Proliphix web site to trigger an e-mail notification, if the function is enabled, and may also be sent as e-mail from this thermostat if configured on Network - Notification Settings page. -
Page 43: Wired Sensors
Beta Draft Confidential Alarms Page Table 2-5 Alarms - Zone Field Descriptions (Continued) Field Description Usage to Date Displays a running tally of hours and minutes which have elapsed since the previous Last Replaced date. If this value is greater than the preset hours, it is displayed in and an alarm is generated indicating that the Change Interval has expired. -
Page 44: Table 2-6 Alarms - Wired Sensors Field Descriptions
HVAC (page 2-2) page. In addition, this alarm is sent to the Proliphix web site to trigger an e-mail notification, if the function is enabled, and may also be sent as e-mail from this thermostat if configured on Network: Notification Settings page. -
Page 45: Sensors Page
Beta Draft Confidential Sensors Page Sensors Page The Sensors page displays the local temperature and remote sensor name/type. Figure 2-22 Sensors Page Table 2-7 to complete the Sensors page fields. Table 2-7 Sensors Field Descriptions Field Description Local Temperature Current Reading Displays the current local temperature. - Page 46 Select the remote sensor type: thermistor or contact to determine whether or not a temperature sensor or dry contact closure source is connected to this sensor. (Consult the Proliphix web site for a list of sensors available in either type.) Thermistor –...
-
Page 47: Advanced Page
Beta Draft Confidential Advanced Page Advanced Page The Advanced page displays tabs for the HVAC Settings, Thermostat Settings, and Override Settings pages. HVAC Settings The Advanced - HVAC Settings page displays the HVAC system information, compressor/interstage delay, and maximum cycles per hour, for example. Figure 2-23 Advanced - HVAC Settings Page - Fuel Burner Internet Managed Thermostat Configuration Guide, Release 1.0 2-27... -
Page 48: Figure 2-24 Advanced - Hvac Settings Page - Heat Pump
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Figure 2-24 Advanced - HVAC Settings Page - Heat Pump Table 2-8 to configure the Advanced Settings fields. Table 2-8 Advanced Settings Fields - HVAC Field Descriptions Field Description HVAC System Type Select the type of HVAC system, either Fuel Burner (default) or... - Page 49 Beta Draft Confidential Advanced Page Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued) Field Description If Your HVAC System is a Fuel Burner Heat Control Select the HVAC control for this thermostat. This parameter describes the thermostat capability to control a single stage or dual stage heating system.
- Page 50 Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued) Field Description If Your HVAC System is a Heat Pump Reverse Valve Polarity Enables you to control the direction of the heating and cooling modes.
- Page 51 Beta Draft Confidential Advanced Page Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued) Field Description Cool Control Specifies the HVAC control of this thermostat. This parameter describes the thermostat’s capability to control a heat pump system. The thermostat can also be disabled from controlling a cooling system and instead operate as a heat-only thermostat.
- Page 52 Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued) Field Description Maximum Cycles Maximum Cool Cycles/Hour Limits the number of cooling cycles every hour. If this value is 3 (default) for example, a cooling cycle can be invoked once in each of the three 20-minute hourly intervals.
-
Page 53: Figure
Beta Draft Confidential Advanced Page Table 2-8 Advanced Settings Fields - HVAC Field Descriptions (Continued) Field Description Zone Temperature Averaging Local Temperature Select Remote Sensors that are configured as Thermistors are displayed on this page under the Zone Temperature Averaging field so that they can be used in determining the zone average temperature. -
Page 54: Thermostat Settings
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Thermostat Settings The Advanced - Thermostat Settings page displays the HVAC system information, compressor/interstage delay, and maximum cycles per hour, for example. Figure 2-25 Advanced - Thermostat Settings Page Table 2-9 to configure the Thermostat Settings fields. -
Page 55: Override Settings
Beta Draft Confidential Advanced Page Table 2-9 Advanced - Thermostat Settings Field Descriptions (Continued) Field Description Setpoint Deadband Establishes the temperature limits above and below the established setpoint, within which the heating or cooling cycle is activated and maintained. The anticipator algorithm operates within this differential range about the setpoint. -
Page 56: Table 2-10 Advanced - Override Settings Field Descriptions
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Table 2-10 to configure the Override Settings fields. Table 2-10 Advanced - Override Settings Field Descriptions Field Description Hold Allow Hold Indicates if thermostat temperature setting are held independent of schedule changes due to Event or Daily Profiles advancements. - Page 57 Beta Draft Confidential Advanced Page Table 2-10 Advanced - Override Settings Field Descriptions (Continued) Field Description Active - Activate relay when override is activated. AUX Relay 1 Inactive - Inactivate relay when override is activated. No Change Alarm Managed Active - Activate relay when override is activated. AUX Relay 2 Inactive - Inactivate relay when override is activated.
-
Page 58: Network Page
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Network Page The Network page displays tabs for the General, Remote Access, Notification Settings, and Statistics pages. Figure 2-27 displays when you access the Network page. Figure 2-27 Network - Warning: Network Configuration To configure the Network page or view as read only, click the appropriate button. -
Page 59: Table 2-11 Network - General Field Descriptions
The system displays the MAC address in the format of 00:19:88:AB:CD:EF for IMT550w and 00:11:49:AB:CD:EF for IMT550c, where AB:CD:EF is a unique value for each thermostat. Web Server HTTPS Port Enter the IP port number of the Web server within the thermostat. -
Page 60: Remote Access
Enter the outgoing IP port number which is used to communicate to the remote server. This field is pre-configured at the factory with the IP port number of the Proliphix Web Server. Do not change this value. 85 – (default) Port number of the remote server. - Page 61 Remote access provides the thermostat with the ability to be controlled from across the Internet (with the Proliphix UEM). Disabled (default) – Remote Server function is disabled. Enabled – The thermostat is enabled to participate with the Proliphix UEM server.
-
Page 62: Network Notification Settings
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Network Notification Settings This page is most often used only if the thermostat is not connected to the UEM. An IT resource would typically use this page to work with their corporate email Note servers. -
Page 63: Statistics
Beta Draft Confidential Network Page Table 2-13 Network - Notification Settings Field Descriptions (Continued) Field Description From Address Specifies the address of source of notification. To Address Specifies teh address of destination for notifications. Up to 8 e-mail recipients can be identified, separated by semicolons. E-mail Status Last Send Status Last Attempt... -
Page 64: Admin Page
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Admin Page The Admin page displays tabs for the General, Date and Time, Installer Information, Password Settings, Restart, and Software Update pages. General The Admin - General page displays the device name, serial number, LCD information, for example. -
Page 65: Date And Time
Beta Draft Confidential Admin Page Table 2-14 Admin - General Field Descriptions (Continued) Field Description LCD Settings LCD Unlock Keycode Backlight Select the LCD backlight control. Delay (default) – The backlight is illuminated when you click a button and remains illuminated for 16 seconds after the last button is clicked. -
Page 66: Installer Information
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Table 2-15 to configure the Admin - Date and Time fields. Table 2-15 Admin - Date and Time Field Descriptions Field Description Network Time Synchronization Enabled Network Time Protocol (NTP) Disabled NTP Timeserver Thermostat Timezone... -
Page 67: Password Settings
Beta Draft Confidential Admin Page Password Settings The Admin - Password Settings page enables you to modify the Admin password. Figure 2-35 Admin - Password Settings Page Table 2-16 to configure the Admin - Password Settings page. Table 2-16 Admin - Password Settings Field Descriptions Field Description Change Admin Password... -
Page 68: Software Update
Beta Draft Confidential CHAPTER 2: Configuring the Thermostat Using the Web Interface Software Update The Admin - Software Update page enables you to check for and download any updates to the thermostat. Check the box and click Submit. Figure 2-37 Admin - Software Update Page 2-48 Internet Managed Thermostat Configuration Guide, Release 1.0 Part No. - Page 69 Beta Draft Confidential Index Calendar view Heat pump 2-13 Configuring the thermostat settings for 2-30 HVAC state using the Web pages Default weekly schedule MAC address 2-13 2-39 DHCP. See Dynamic Host Configuration Protocol Dynamic Host Configuration Protocol Password setting 2-47 External thermal sensors settings...
