Home Class Schedule Page

The Home Class Schedule allows the user to assign both Heat and Cool temperature settings in each of the
four schedule Periods for the Home Day Class.
A Submit must be issued by the user to apply all changes made in the Home Day Class fields.

Period

One of 4 time periods of the day defined by the user.

Time

Time of day in 15 minute increments. Includes AM / PM indicator.

Heat (Temp)

Temperature setback setting for the heating system.
Control:
o
45

Cool (Temp)

Temperature setback setting for the cooling system.
Control:
o
45

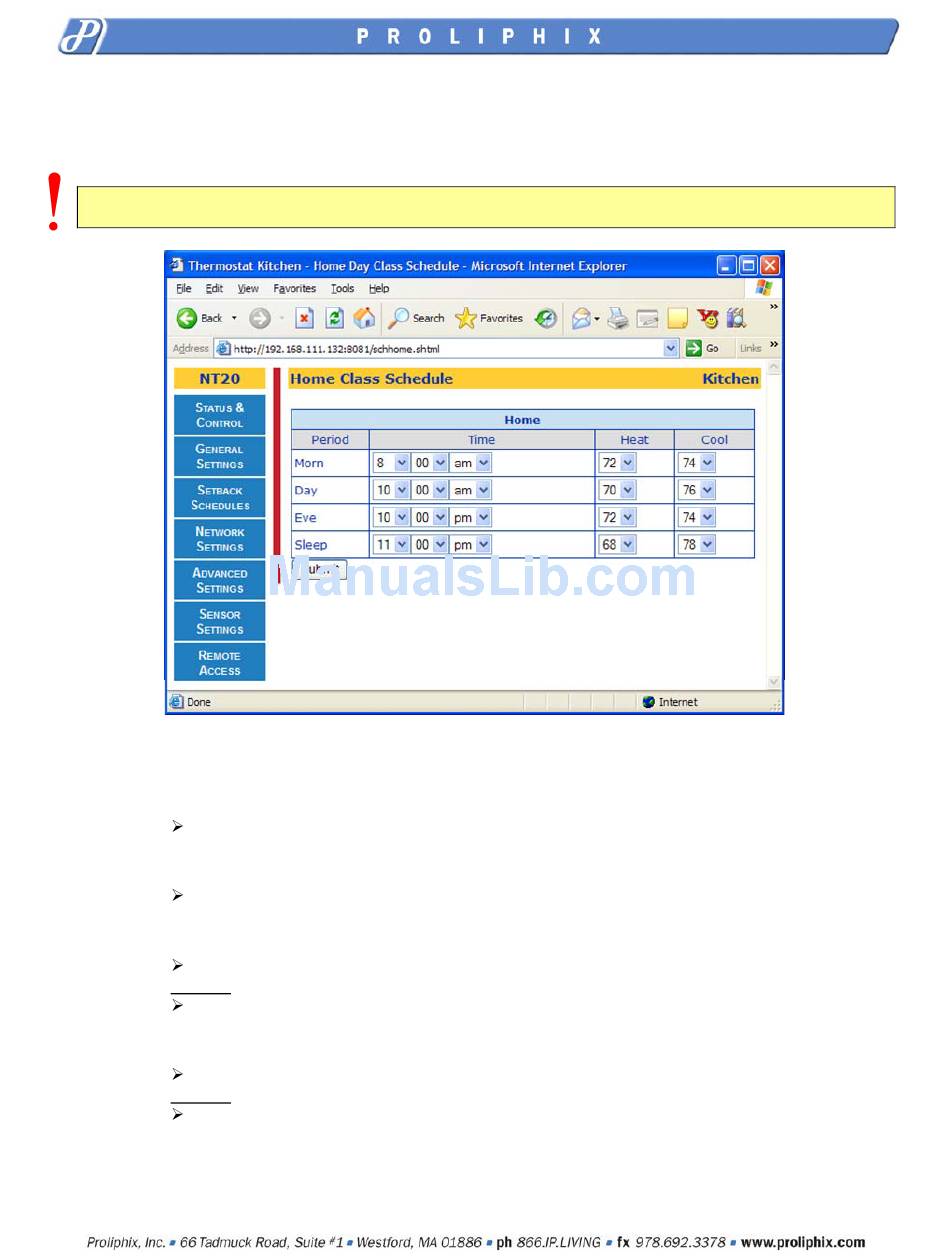

Figure 18 – Home Day Class Schedule Page
o
F to 95 F
o
F to 95 F
