Figure 2-5 Installing Bezel Blanking Plate - Silicon Graphics 330 User Manual

007-4278-001
• To install a blanking plate, insert one end of the blanking plate into its retaining
notches, then push the other end until it snaps into place. See Figure 2-5 for an
illustration of the procedure.

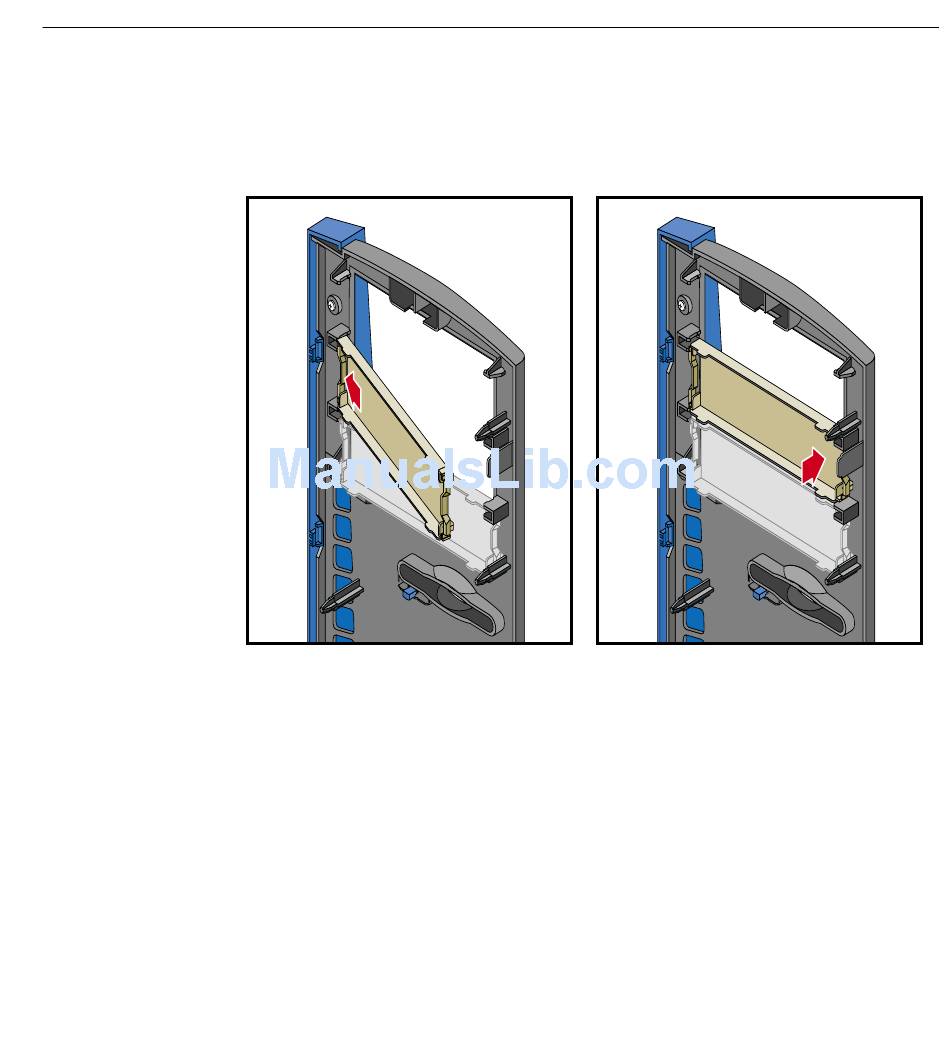

Installing Bezel Blanking Plate
Figure 2-5
7. Replace the bezel and the side panel as described in "Post-installation Instructions"
on page 52.
Removing and Installing Drives
21
