Figure 2-22 Removing Retaining Bracket From System Board; Figure 2-23 Snapping Retaining Bracket Onto System Board - Silicon Graphics 330 User Manual

2: Installation of Customer Replaceable Components
44
Clip

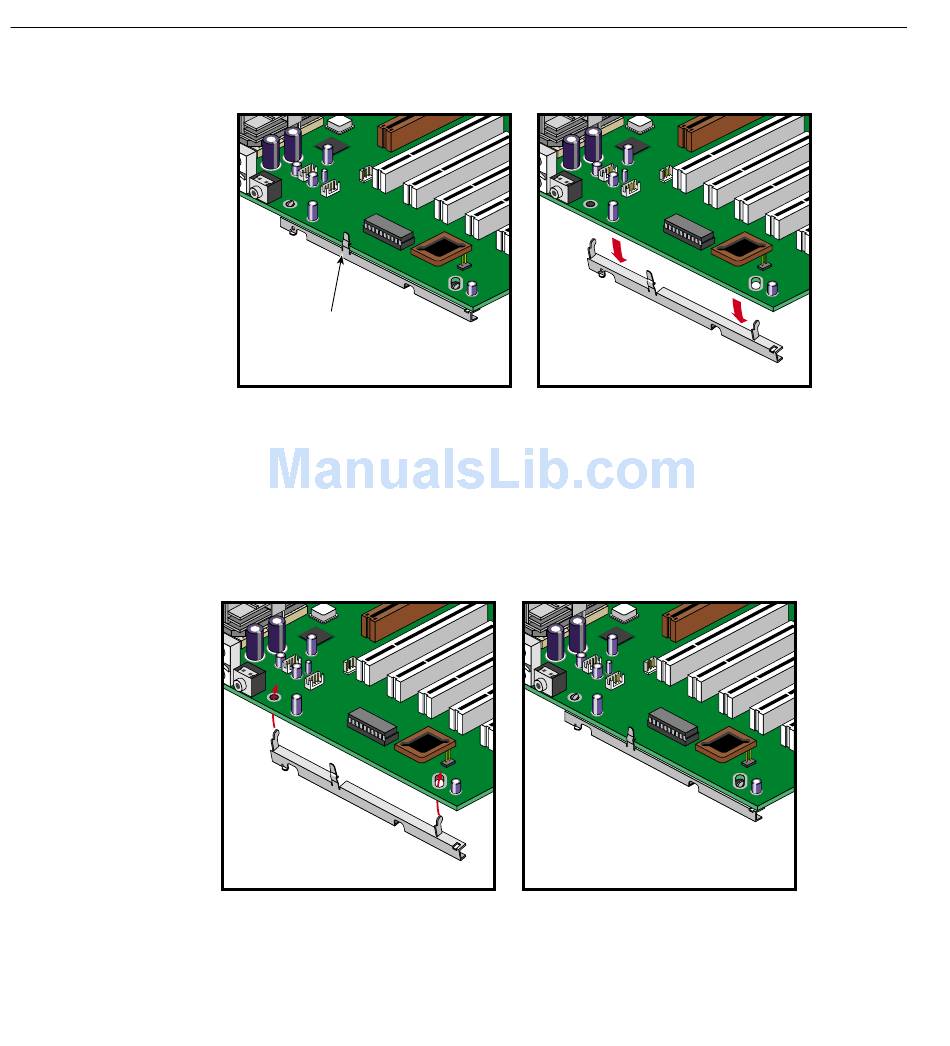

Figure 2-22 Removing Retaining Bracket from System Board
The following instructions describe how to install the Silicon Graphics 330 Visual
Workstation system board:
1. To mount the retaining bracket onto the system board, place the retaining hooks
into their system board holes and snap the release clip onto the board. Figure 2-23
illustrates the procedure.
Snapping Retaining Bracket onto System Board
Figure 2-23
