Figure 2-31 Placing Side Panel Onto Lower Chassis Rail - Silicon Graphics 330 User Manual

007-4278-001
2. Follow these steps to replace the side panel:
• Locate the two tabs on the lower side of the side panel.
• Place the two tabs onto the lower chassis rail.
• Slide the side panel toward the rear of the system, until the rear tab hits the rear
of the chassis and the side panel cannot be moved any farther. Figure 2-31
illustrates the procedure.
1
2
2
1

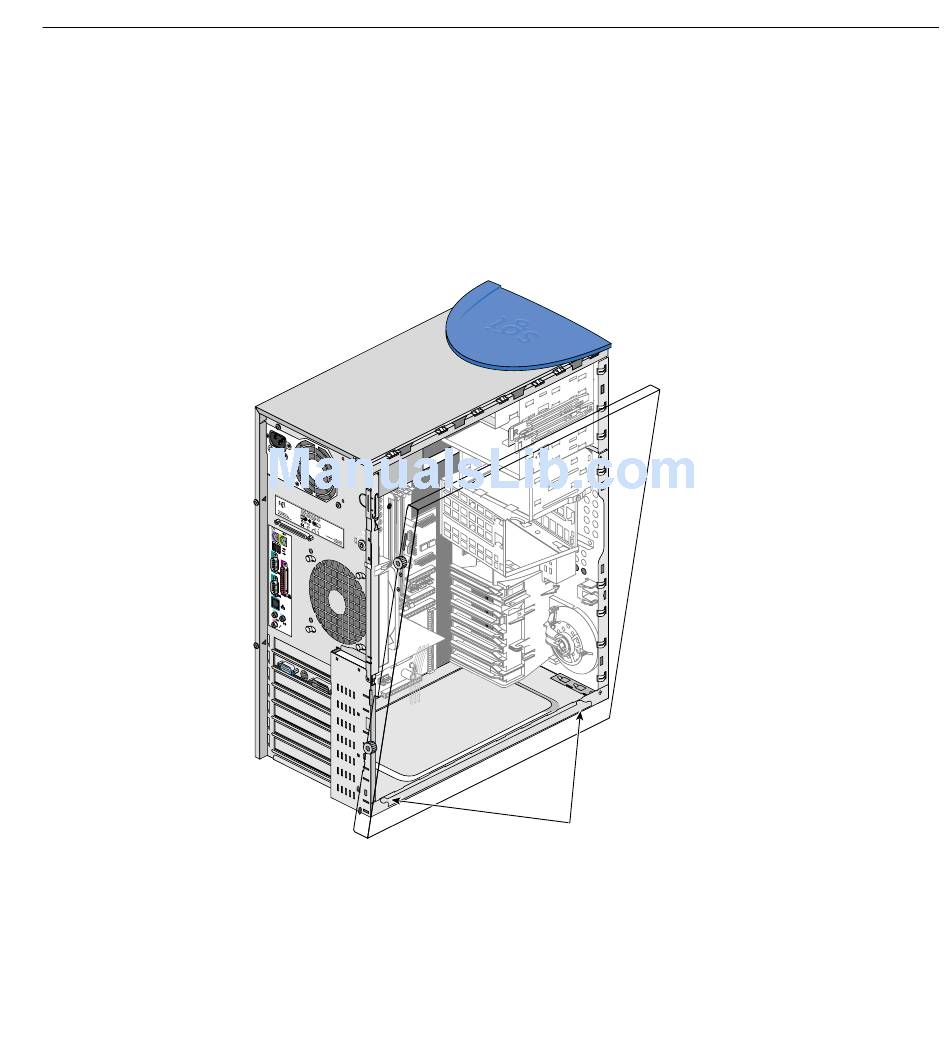

Placing Side Panel onto Lower Chassis Rail
Figure 2-31
• Push the upper side of the side panel toward the chassis.
• Gently lift the side panel and push it against the chassis.
Side panel tabs
