Audio Ports

Mic-In Port

Line-In and Line-Out Ports

007-4278-001
The Silicon Graphics 330 Visual Workstation uses a 3.5 mm mini jack stereo microphone
port, an analog line-level audio input port and an analog line-level audio output port.
Table A-8 shows the port pinout information for the mic-in, line-in, and line-Out ports.
Table A-8 Mic-in, Line-in, Line-Out Port Pinouts
Connector Tip
Mic-in L
Line-in L
Line-out L

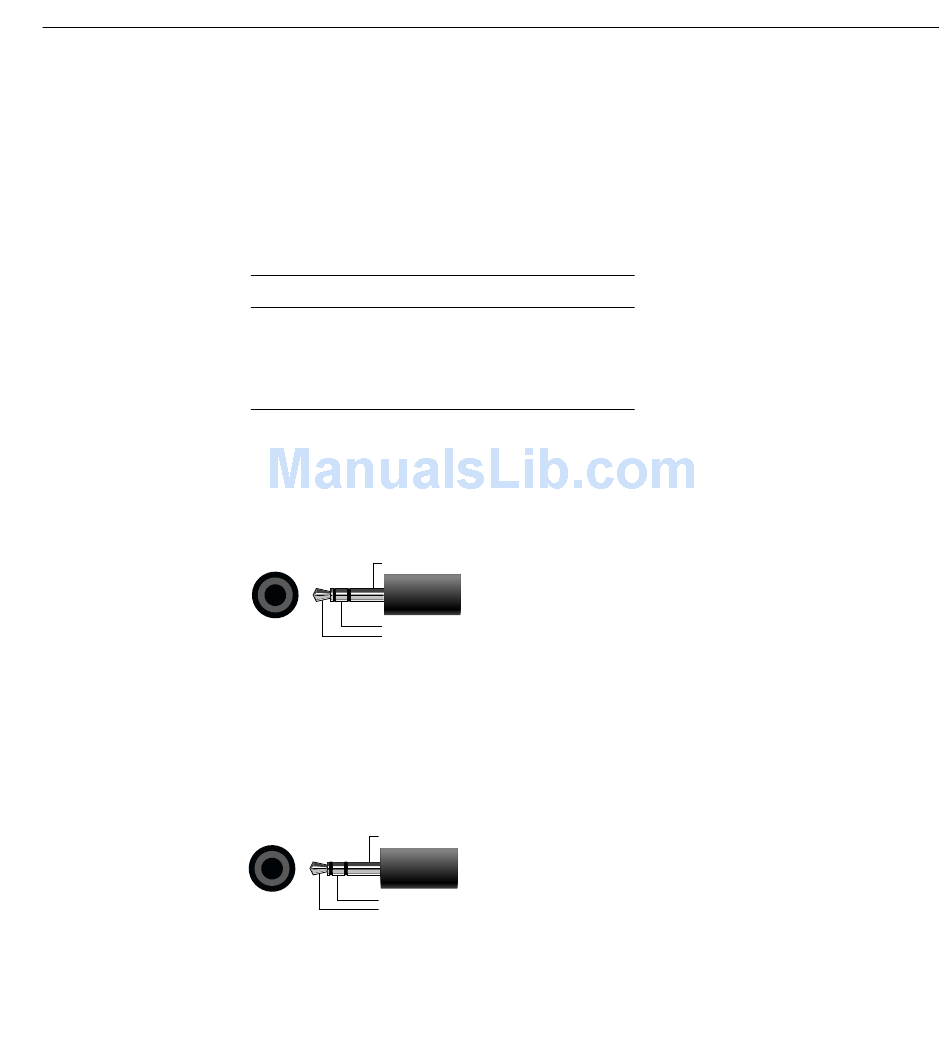

Figure A-8 shows the mic-In port.
Ground (-)
R
Signal (+)
L
Mic-In Port Pinout
Figure A-8
Figure A-9 shows the line level port.
Ground (-)
R
Signal (+)
L
Figure A-9 Line Level Port
Ring Sleeve
R Ground
R Ground
R Ground
