007-4278-001
Notched fingers

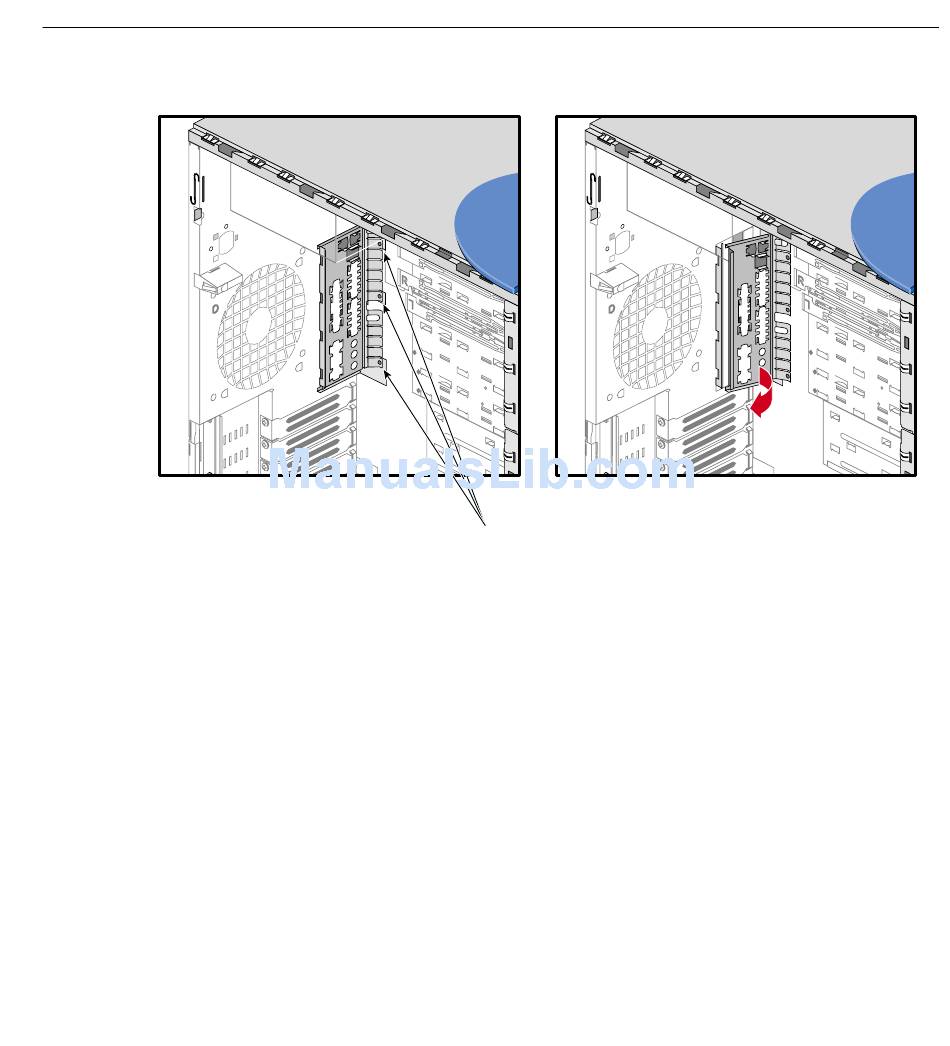

Figure 2-25 Removing I/O Panel Gasket
The following instructions describe how to install the I/O panel gasket:
1. Locate the four retaining slots on the system's I/O panel opening. See Figure 2-26
for the location of the retaining slots.
2. Insert the I/O gasket's four indentations into their corresponding retaining slots on
the I/O panel opening. See Figure 2-26 for an illustration of the procedure.
3. In order to secure the I/O gasket on the chassis, each notched finger needs to be
inserted into its slot. To do so, push on the I/O gasket where each notched finger
meets with the I/O gasket until the notched finger snaps into its slot. Repeat the
procedure for the remaining notched fingers.
4. Install the system board as described in "Replacing the System Board" on page 42.
Replacing I/O Panel Gasket
47
