Mounting Drive Rails to 3.5-inch drives

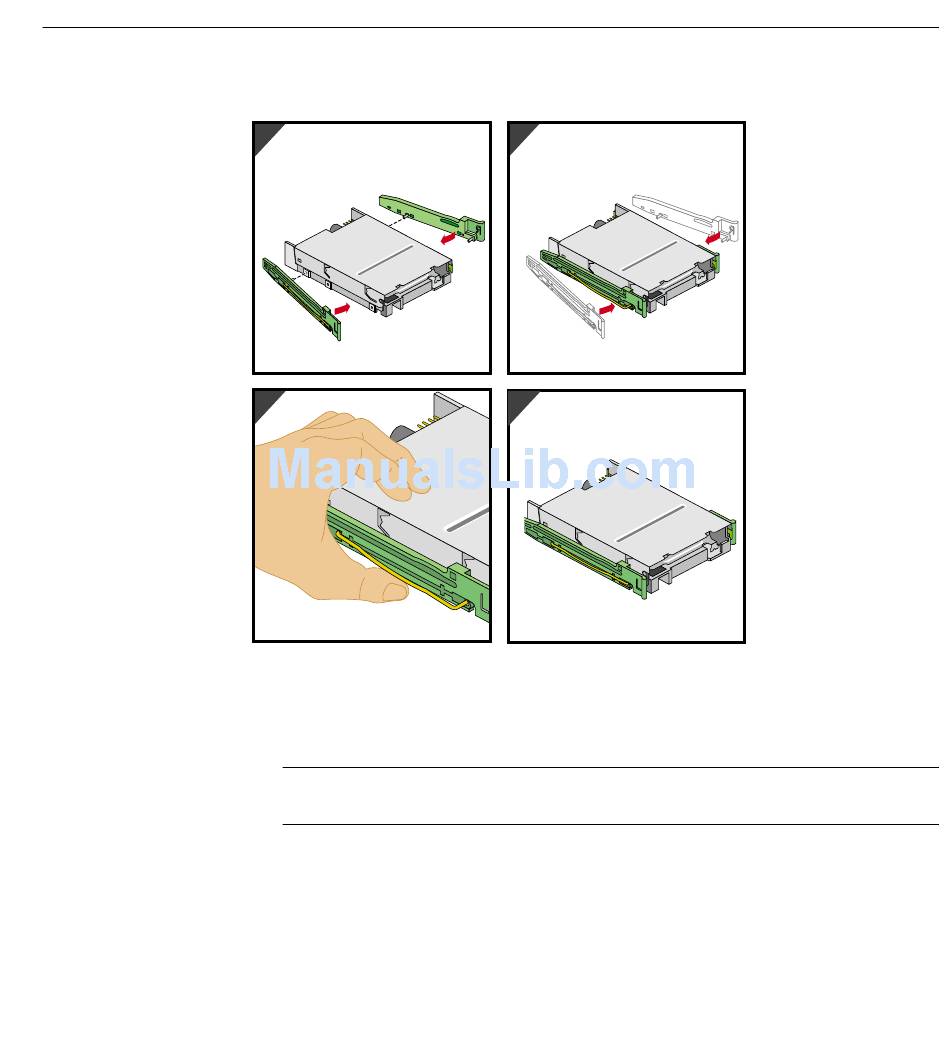

Figure 2-8
5. To mount a
3.5-inch
selected drive bay and slide the drive into the bay until the rails snap into place.
Note: For a drive to be correctly mounted in the front-access drive cage, it must be
installed right side up.
6. Connect cables to the drive.
7. Replace the bezel and the side panel as described in "Post-installation Instructions"
on page 52.
