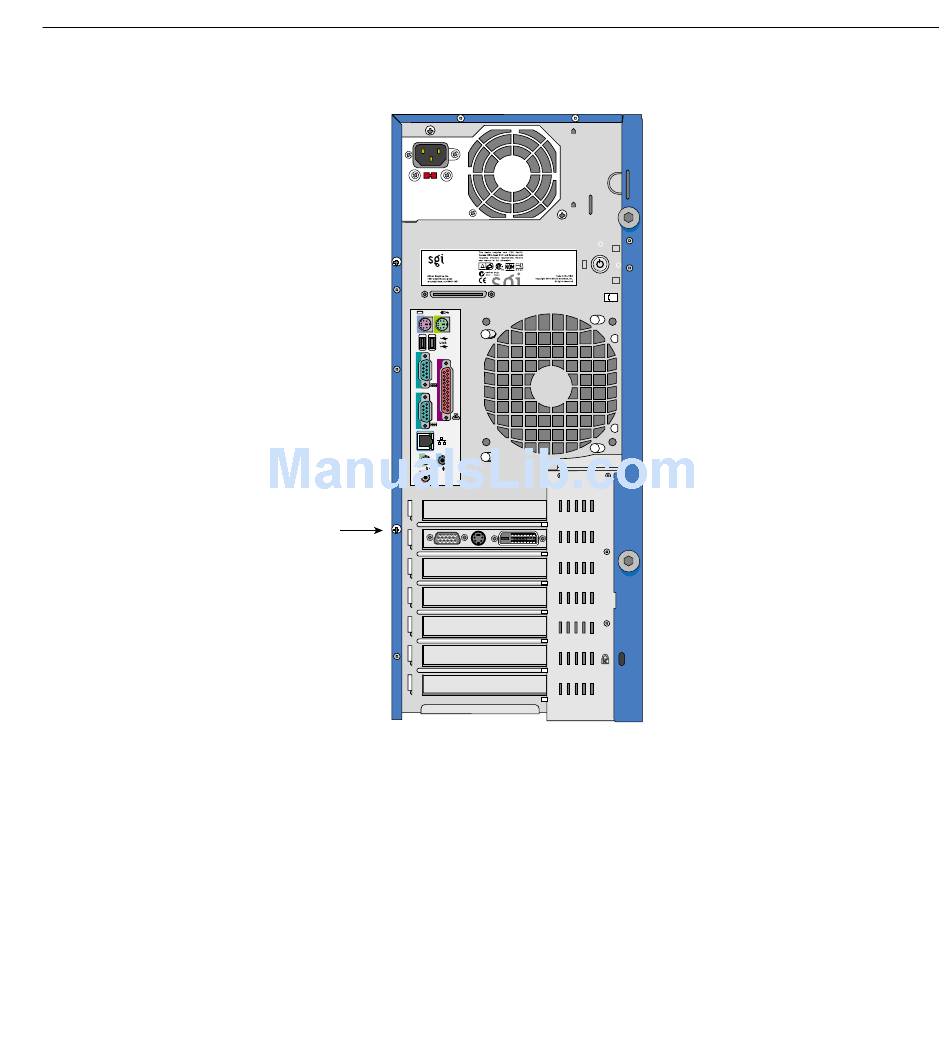

Figure 2-21 Location Of System Board Screw - Silicon Graphics 330 User Manual

007-4278-001
System
board screw
Figure 2-21 Location of System Board Screw
6. Pull the system board away from the I/O gasket and lift the board away from the
chassis.
7. To detach the retaining bracket from the system board, unsnap the release clip and
remove the bracket retaining hooks from the system board. Figure 2-22 shows the
procedure.
1
2
2
1
