2: Installation of Customer Replaceable Components
34
Clip
Clip
Front fan screw
Clip

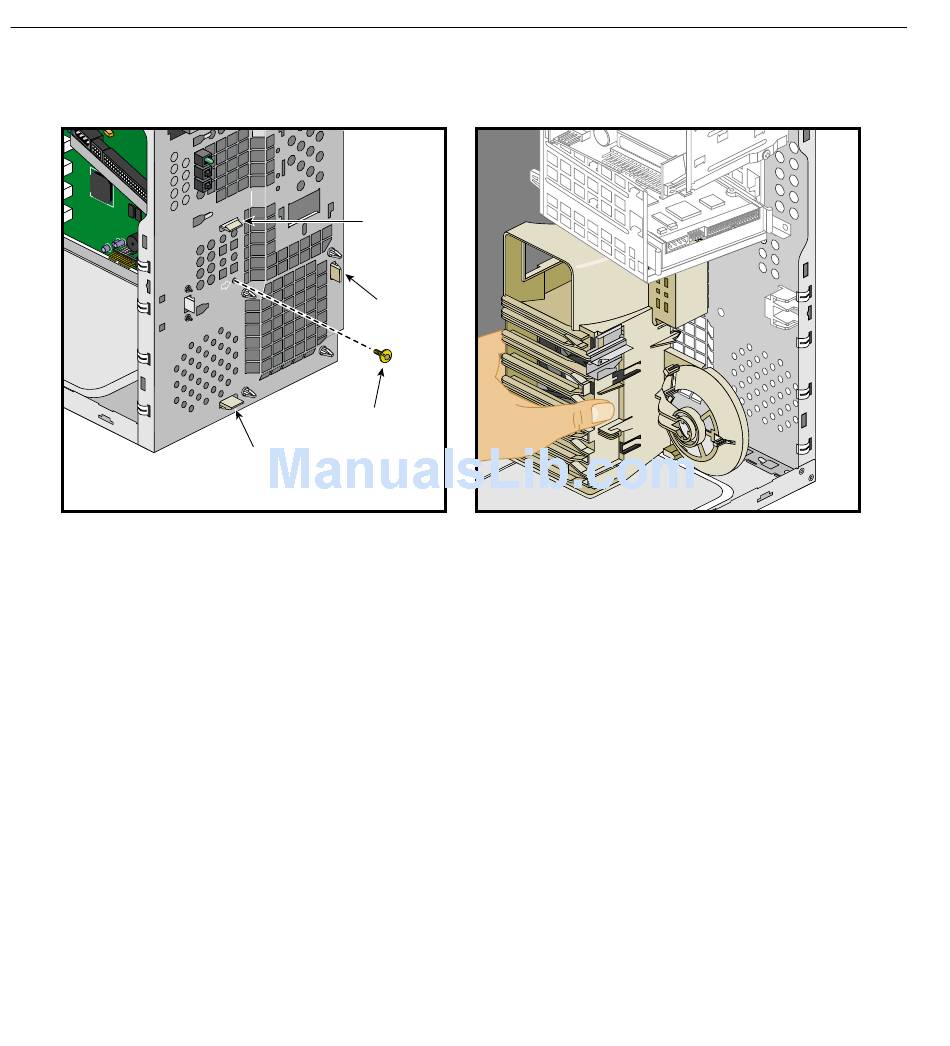

Removing Front Fan Screw and Releasing Clips
Figure 2-14
5. Once the three clips are released, the fan plastic frame can be removed from the
system.
6. The fan is held in its plastic frame by four fan retaining clips. To remove the fan
from its plastic frame, place the frame on a flat surface, with the frame facing down,
as shown in Figure 2-15.
7. Using a flat screwdriver, gently push on the center of the fan. While pushing on the
fan, release one fan retaining clip at a time by pulling it away from the fan. The
procedure is illustrated in Figure 2-15.
8. Once all four clips have been released, the fan can be removed from the plastic
frame.
