Ethernet Management
5.4.4.5.1.3 Status | Statistics | QoS
Figure 5-21 displays the 'Status | Statistics | QoS' page when QoS Control Mode is set (via
the 'Configuration | WAN | QoS' page – see Sect. 5.4.4.4.6.2) either to Off or Diffserv. When
QoS Control Mode is set to either Max/Priority or Min/Max, the page appears as shown in
Figure 5-22.

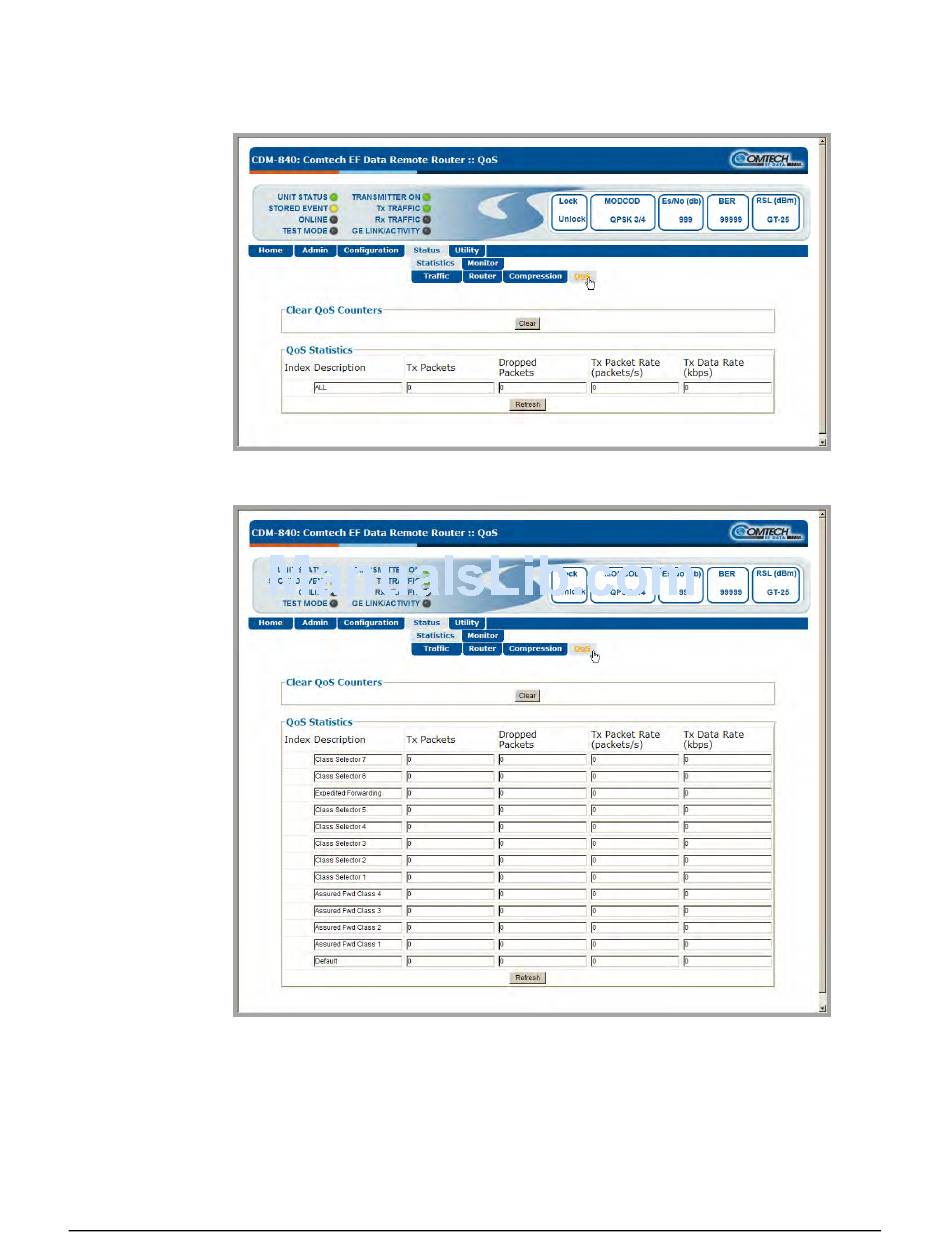

(a) Page with QoS Control Mode = Off
(b) Page with QoS Control Mode = Diffserv
Figure 5-21. Status | Statistics | QoS pages
5–33
Revision 0
MN-CDM840
