The 'Configuration | Interface | GE' page (Figure 5-9) permits the user to configure the GE
(10/100/1000 BaseT Gigabit Ethernet) port.
GE Interface
MAC Address – This parameter is read-only and cannot be changed.
IP Address / CIDR Mask – Enter the IP Address and CIDR (Classless Inter-Domain Routing)
Subnet Mask using this box (the valid range for the Subnet Mask is 8–30).
Link Configuration – Use the drop-down menu to select the line speed and duplex setting for the
CDM-840's GE interface. The available options are:
• Auto
• 1000 BaseT / Full Duplex
Note: Auto is the recommended configuration selection.
Negotiated Link Mode – The read-only actual negotiated line speed and duplex setting for the
GE interface is displayed here. The viewable settings are:
• 1000 BaseT / Full Duplex
Once the desired configuration settings have been made on this page, click [Submit] as needed to
save these changes.

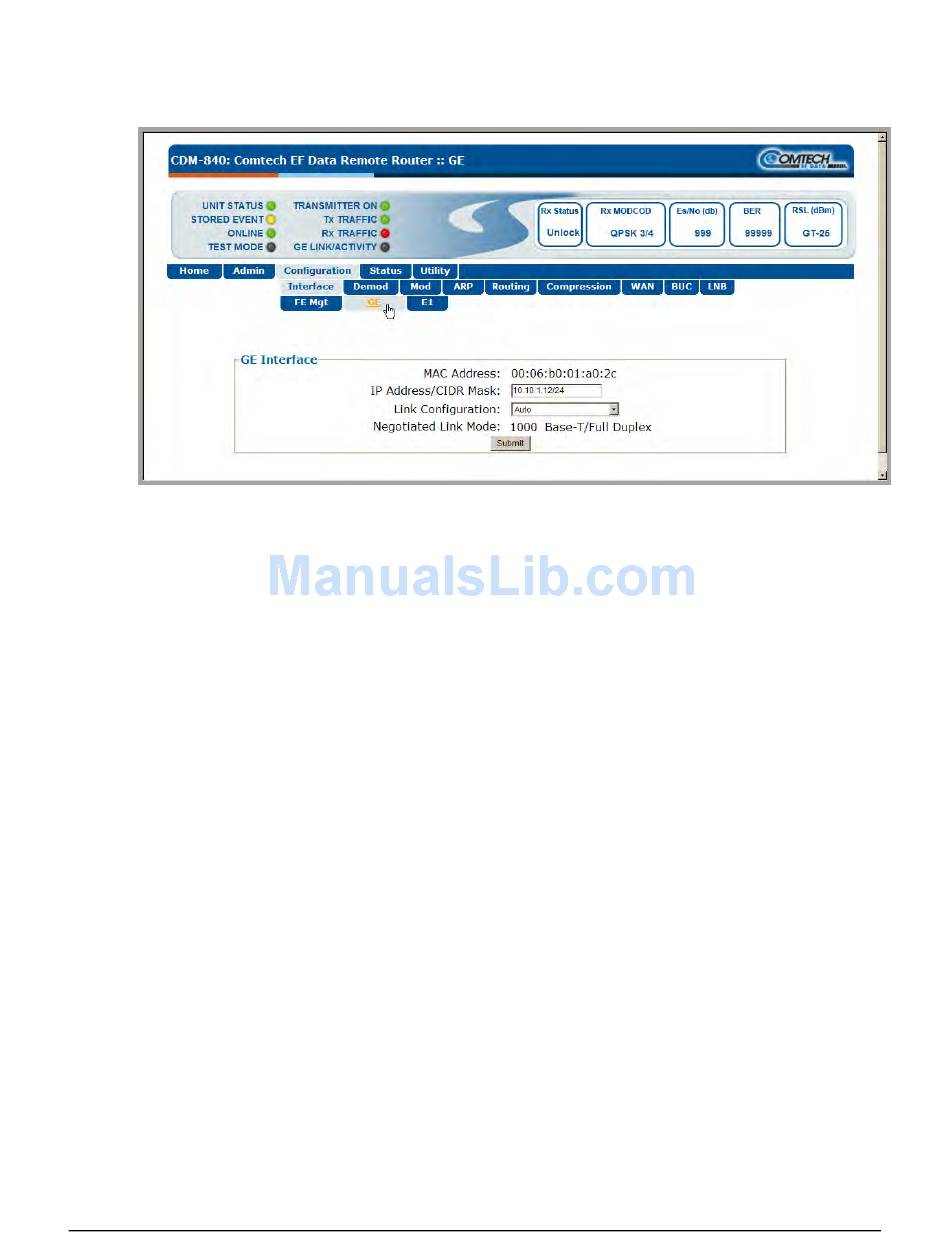

Figure 5-9. Configuration | Interface | GE Page

• 100 BaseT / Full Duplex
• 100 BaseT / Half Duplex
• 100 BaseT / Full Duplex
• 100 BaseT / Half Duplex
5–14
Revision 0
MN-CDM840
• 10 BaseT / Full Duplex
• 10 BaseT / Half Duplex
• 10 BaseT / Full Duplex
• 10 BaseT / Half Duplex
