Chapter 3. REAR PANEL
CONNECTOR
PINOUTS
AND
3.1
Connector Overview
The rear panel connectors for the CDM-840 Remote Router, shown here in Figure 3-1, provide
all necessary external connections between the unit and other equipment. Table 3-1 on the next
page summarizes the connectors provided on the rear panel interface, grouped according to
service function.
Standard AC Unit
Optional 48V DC Unit

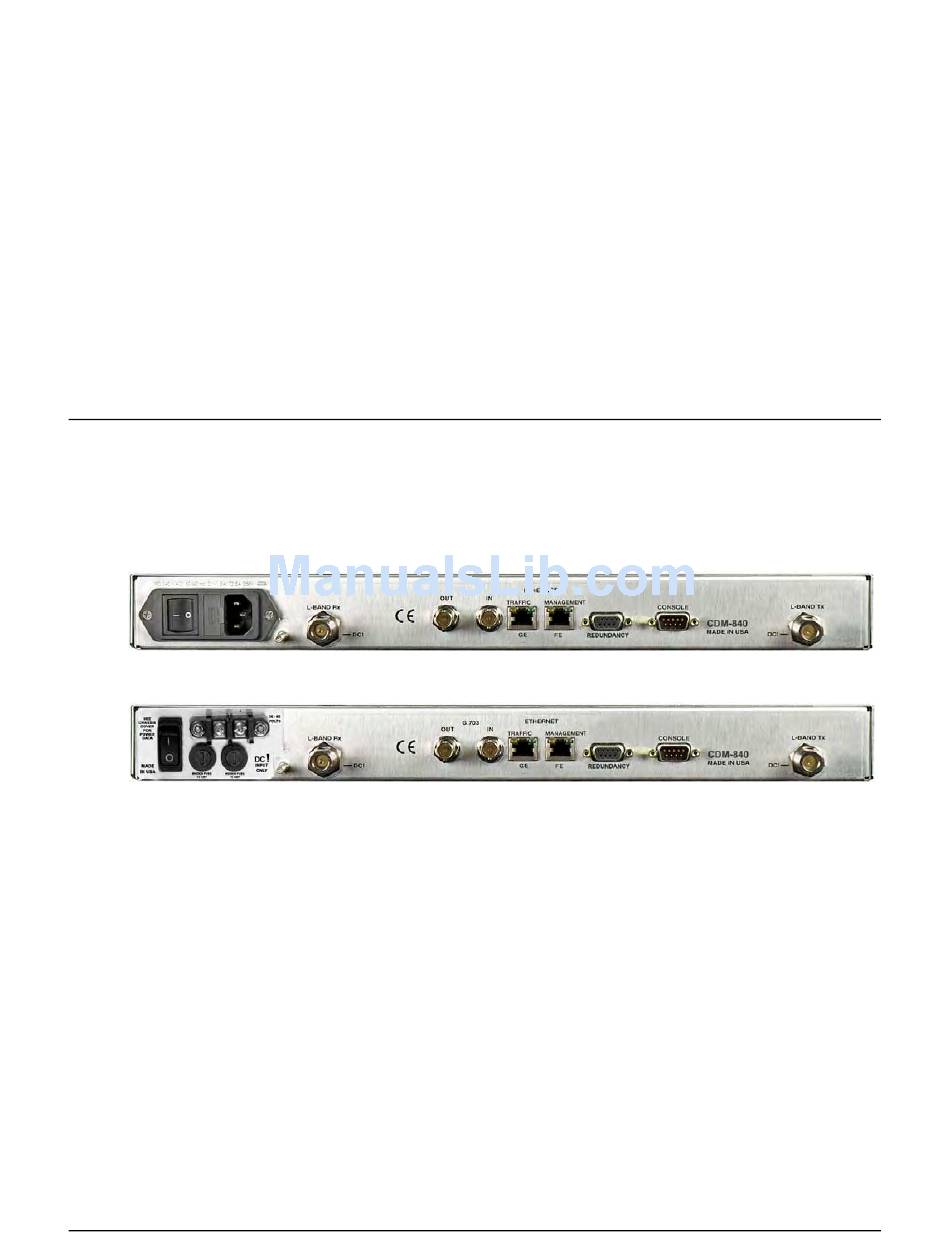

Figure 3-1. CDM-840 – Rear Panel View
3–1
