VGA Input Port

The VGA input port allows connection of a VGA device to be used by the system while in
VGA graphics mode. The following table provides the pin connections for the VGA input
port.
Z10 Signal Name
Red Analog Video
Green Analog Video
Blue Analog Video
Ground
Ground
Ground
Ground
Ground
No Connect
Ground
Ground
Ground
Horizontal Sync
Vertical Sync
Ground

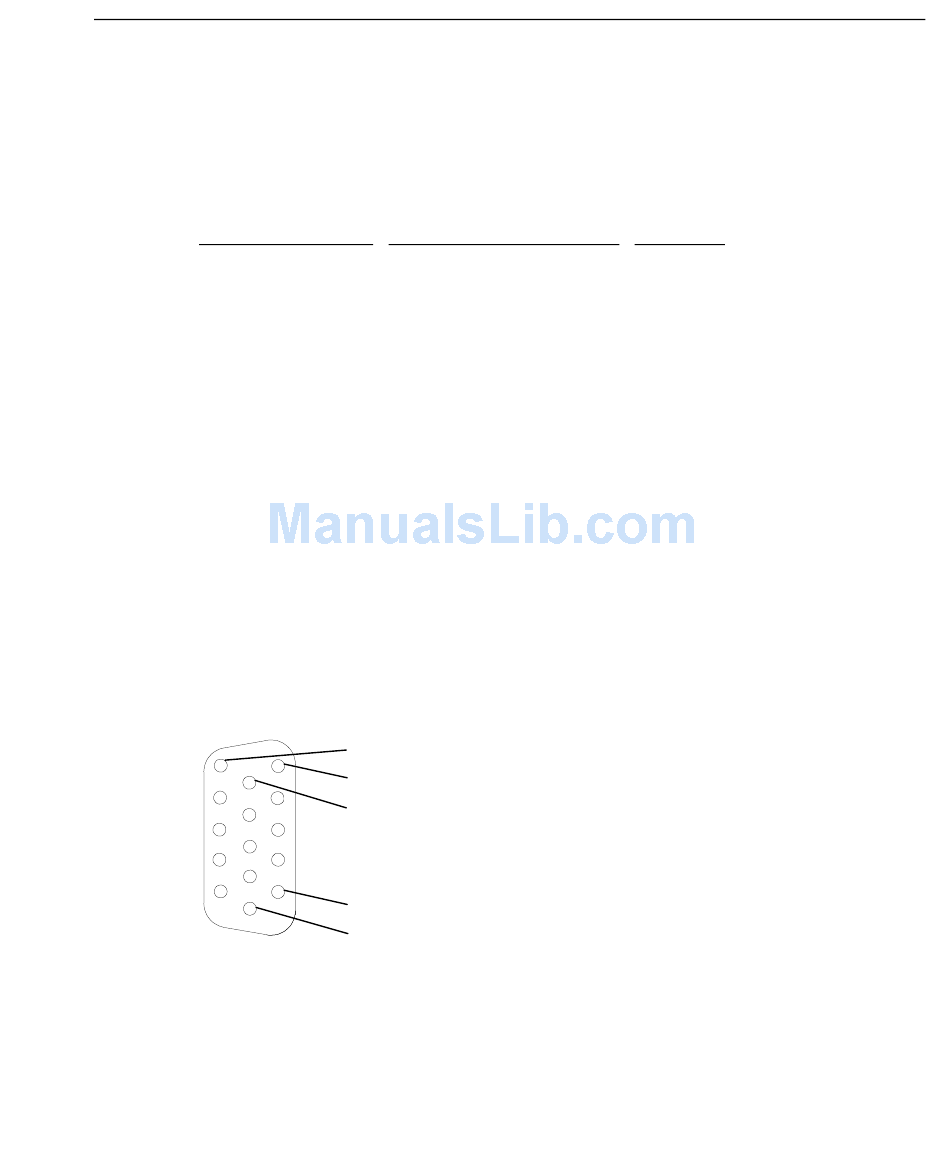

The VGA input port is female, 15-pin, D-Sub as shown in the following figure.
Z13/Z25/V25 Signal Name
Red Analog Video
Green Analog Video
Blue Analog Video
Monitor ID [2]
Cable Sense
Ground
Ground
Ground
No Connect
Ground
Monitor ID [0]
Monitor ID [1]
Horizontal Sync
Vertical Sync
Monitor ID [3]
15
5
10
1
6
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
