Stereo Sync Output Port

The stereo sync output port provides connection to the LCD shutter glasses' emitter module.
The following table provides the pin connections for the stereo sync output port.
Signal Name
Ground
Ground
+12V
Stereo Sync
No Connect

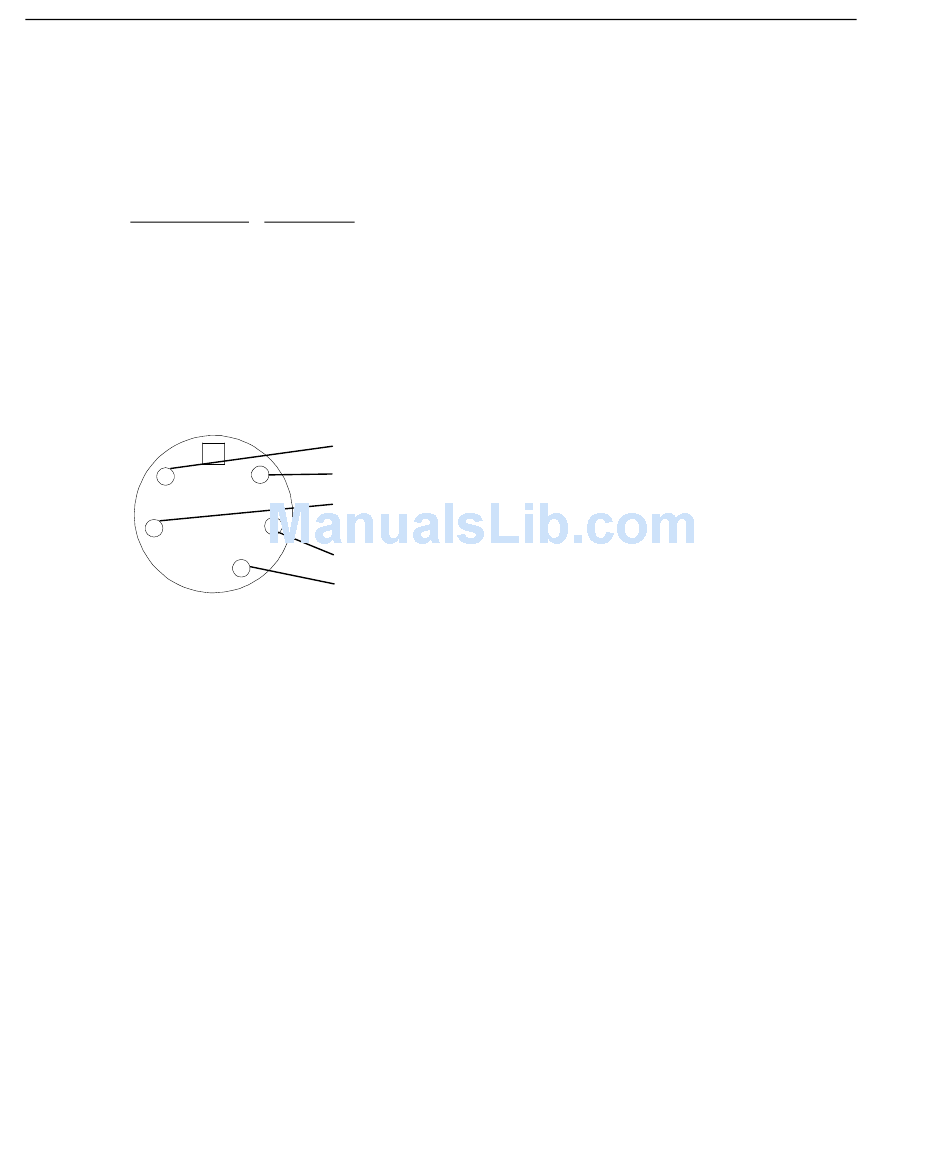

The stereo port is female, 5-pin, mini-DIN as shown in the following figure.
Pin
1
2
3
4
5
5
4
3
2
1
