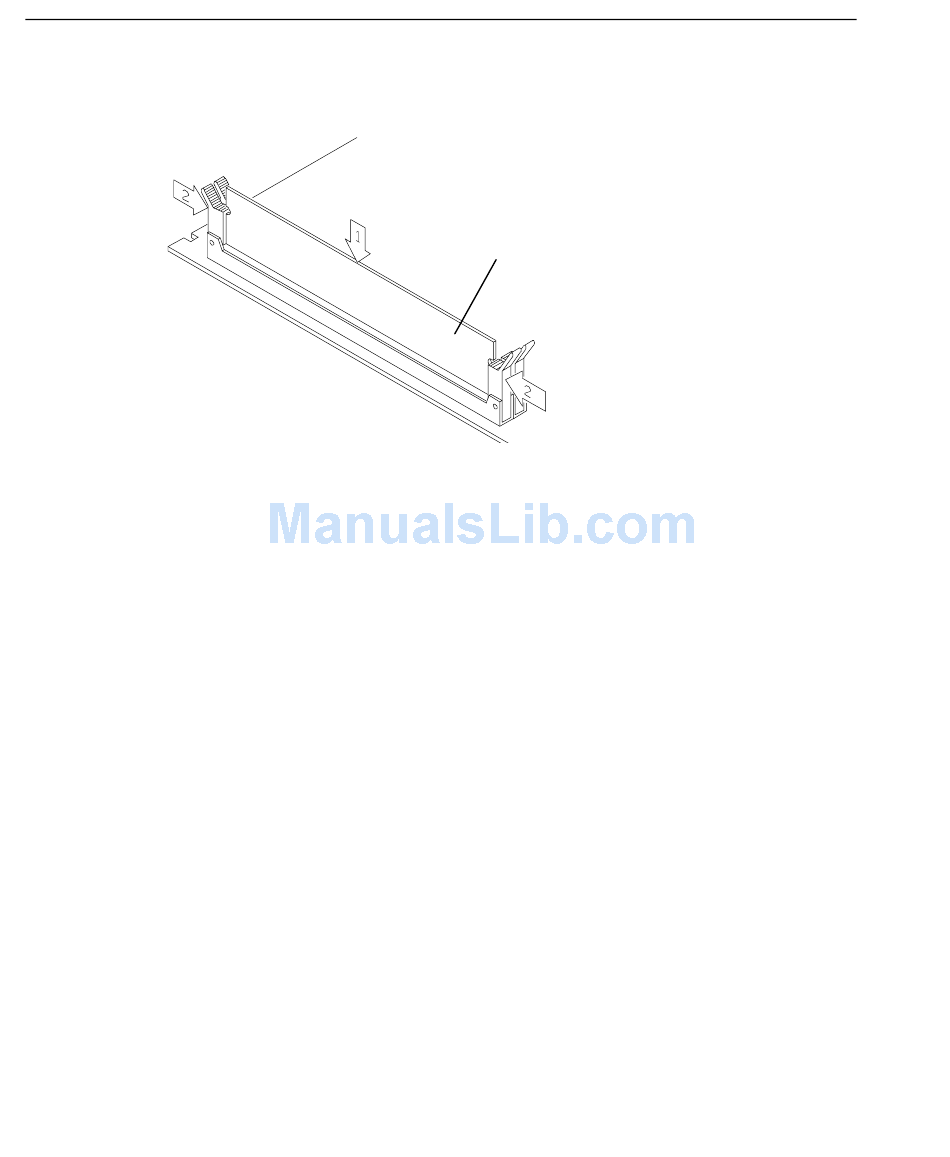

6. Push on the top edge of the DIMM until it snaps into the socket. Refer to the following
figure.
7. Repeat steps 4 through 6 for the second DIMM.
8. For a Z25 or V25 board, replace the DIMM access cover.
9. Replace the board into the system.
10. Close the system base unit.
11. Turn on system power and log on to the Windows NT operating system.
12. Open Display in the Windows NT Control Panel. The Hardware Settings page of the
Display Properties dialog should display the proper texture memory size. If not, shut
down and power off the system. Ensure that both DIMMs are properly seated in their
sockets, and that both DIMMs are the same memory size.

Replacing Z13, Z25, V25, or Geometry Accelerator

This section describes replacing a Z13, Z25, V25, or optional Geometry Accelerator board in
a desktop or deskside TDZ workstation. The procedure also describes installing a new
Geometry Accelerator board.
An installed Z13, Z25, or V25 board requires two adjacent PCI slots. An installed Geometry
Accelerator board requires one PCI slot.
To replace a Z13, Z25, V25, or Geometry Accelerator board:
1. Shut down the system and turn off system power.
2. If replacing a Z13, Z25, or V25 board, disconnect the cables from the Video ports on the
back of the system base unit.
DIMM
