Connecting the Video Cables

After replacing Z10 or Z10-T or installing a dual-screen upgrade in a TDZ workstation, use
the following instructions to connect the monitor cables and VGA loopback cables as
required.
CAUTION Do not connect a monitor cable to the VGA loopback cable ports. If you do, the system will
boot to a blue screen and stop, or the video will not display.

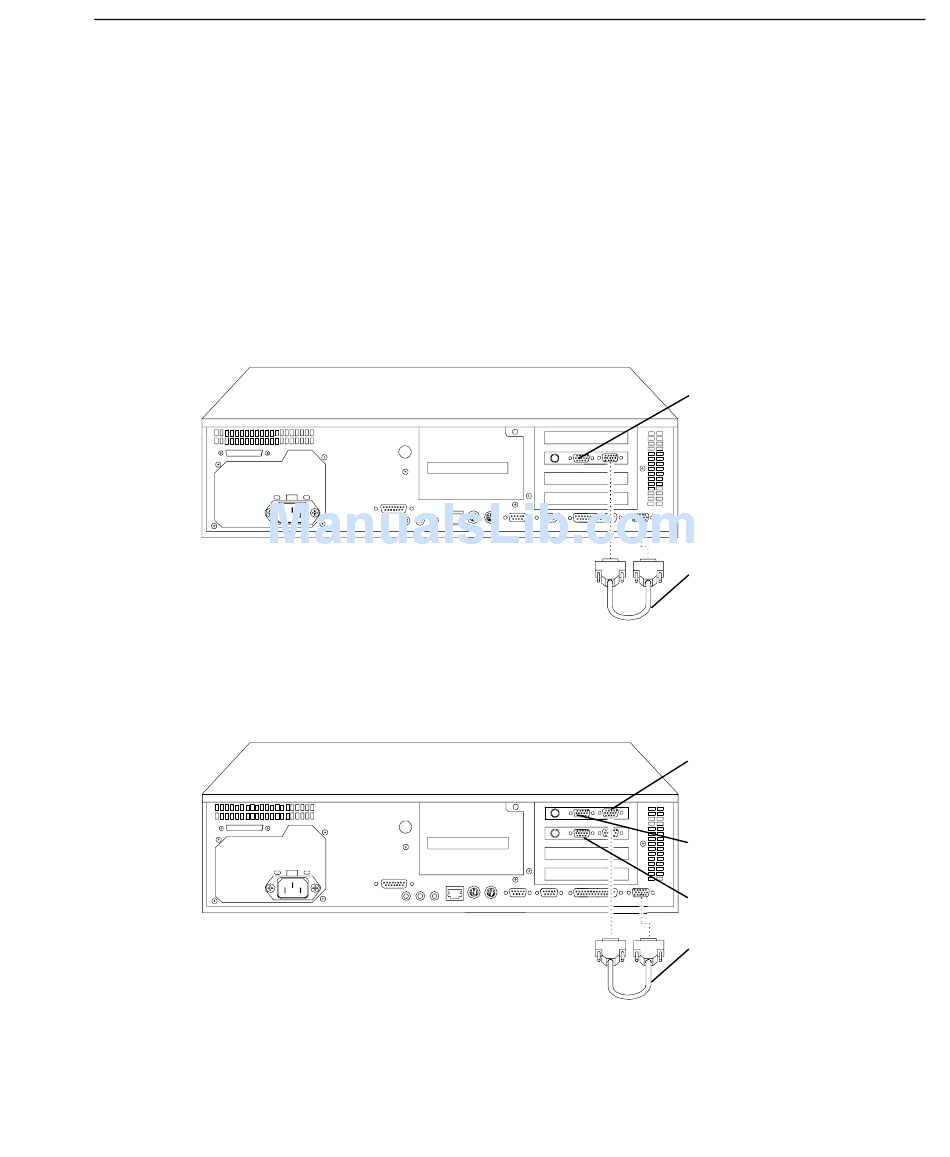

Single-screen Z10 or Z10-T in a desktop system: Connect the monitor cable to the Video
port, and connect the VGA loopback cable as shown in the following figure.
Dual-screen Z10 in a desktop system: Connect the monitor cables from the primary monitor
and the secondary monitor to the Video ports shown in the following figure. Connect the
VGA loopback cable as shown in the following figure.
Video Port PCI Slot 2
VGA Loopback Cable
VGA Port (Primary)
Video Port PCI Slot 1
(Primary)
Video Port PCI Slot 2
(Secondary)
VGA Loopback Cable
